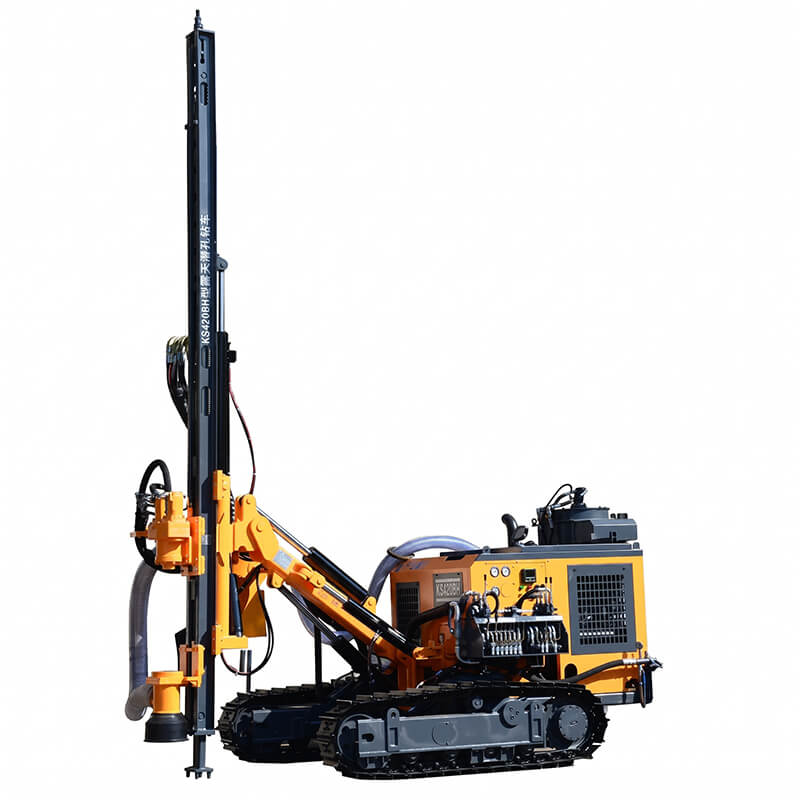

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

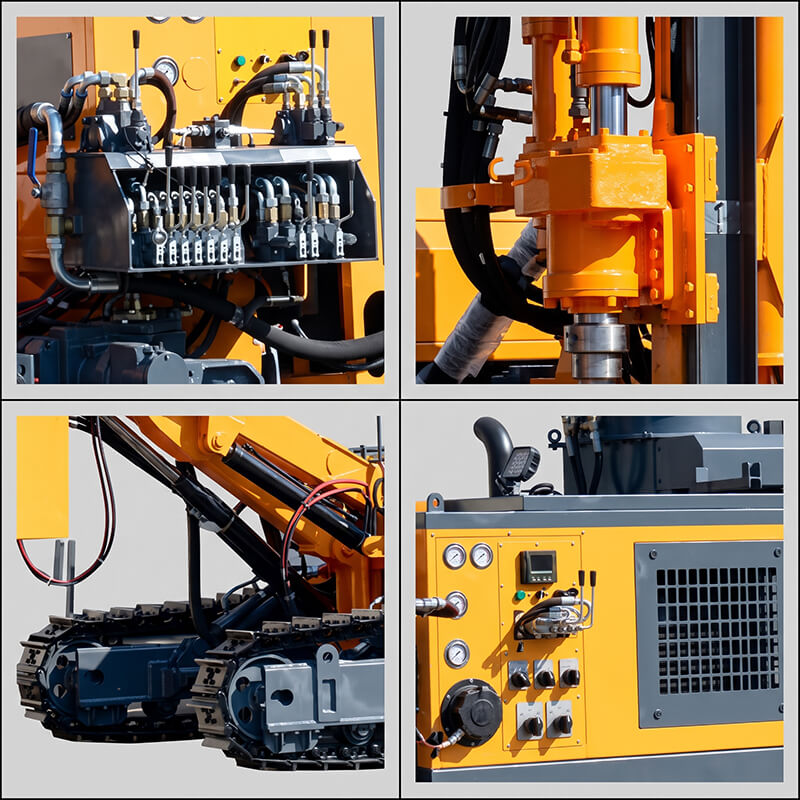

Powered by a Yuchai off-road four-cylinder diesel engine (YCD4K80-T302, 58 kW), complying with national emission standards and environmental regulations while maintaining fuel economy.
Engineered with a folded-edge track frame and 4-wheel drive. Enhanced track levelling cylinders and high-pressure piston travel motors deliver outstanding gradeability up to 30° on rough terrain.
Delivers up to 2000 N·m rotary torque and 0-140 rpm speed. Incorporates an oil cylinder-leaf chain drive system with 25 kN lifting force for smooth feed operation and long service life.
Enlarged pitch and boom lift cylinders satisfy extreme drilling angles (Beam tilt down 135°, up 50°, total 185°), supporting horizontal hole drilling heights from 350 mm to 2750 mm.

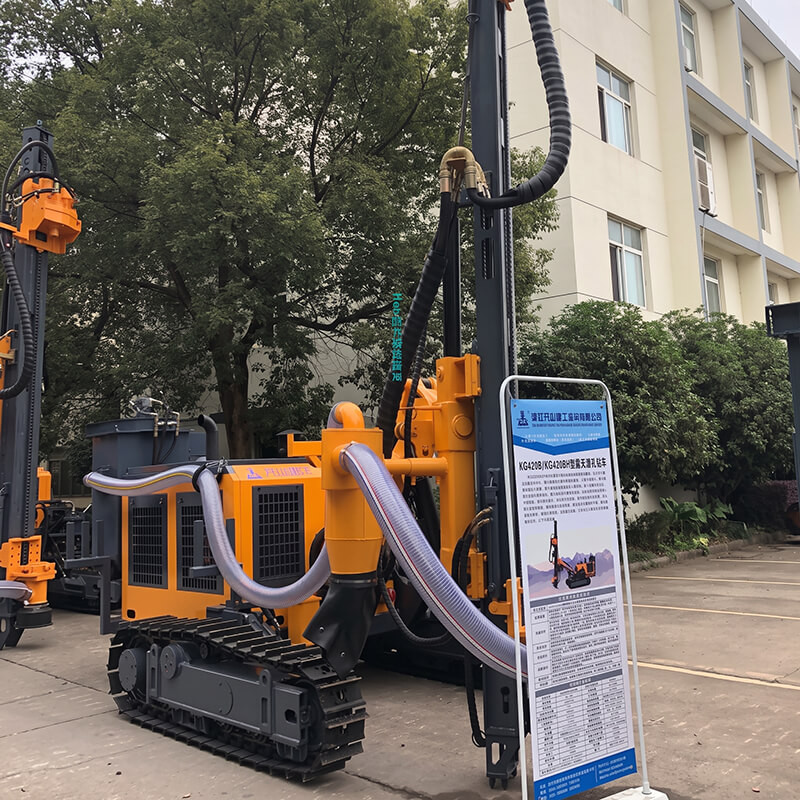

KG420BH comes standard with a QZA-90 (8-element) dry dust collector, with an optional QZA-120 (12-element) upgrade, ensuring dust-free quarry operations and operator safety.
The protective housing features thickened, folded-edge structural steel profiles to resist deformation. Additional reinforced lifting eyes ensure safe and quick crane loading/unloading.
| Item / Parameter | KG420B (Standard) | KG420BH (With Dust Collector) |
|---|---|---|
| Complete Machine Weight | 4150 kg | 4350 kg |
| Dimensions (L × W × H) | 5500 × 2250 × 2350 mm | 5600 × 2450 × 2350 mm |
| Drilling Hardness (Protodyakonov) | f = 6 – 20 | |
| Drilling Diameter Range | Φ90 – 130 mm | |
| Economical Drilling Depth | 25 m | |
| Rotary Speed | 0 – 140 rpm | |
| Max Rotary Torque | 2000 N·m | |
| Lifting Force | 25 kN | |
| Method of Feed | Hydraulic Oil Cylinder – Leaf Chain | |
| Feed Stroke | 3780 mm | |
| Travelling Speed | 0 – 2.5 km/h | |
| Climbing Capacity | ≤ 30° | |
| Ground Clearance | 280 mm | |
| Carriage / Beam Tilt Angle | Down: 135°, Up: 50° (Total: 185°) | |
| Carriage Swing Angle | Left: 100°, Right: 45° (Total: 145°) | |
| Drill Boom Pitch Angle | Down: 50°, Up: 25° (Total: 75°) | |
| Drill Boom Swing Angle | Left: 44°, Right: 45° (Total: 89°) | |
| Track Levelling Angle | ± 10° | |
| Beam Compensation Length | 900 mm | |
| Supporting Power Engine | Yuchai YCD4K80-T302 (58 kW / 2200 rpm) | |
| Applicable DTH Hammer | 3", 4" / 3-4 inch series | |
| Drill Pipe / Rod Size | Φ64 × 3 m / Φ76 × 3 m | |
| Recommended Air Consumption | 10 – 17 m³/min | |
| Max / Min Horizontal Hole Height | ||
