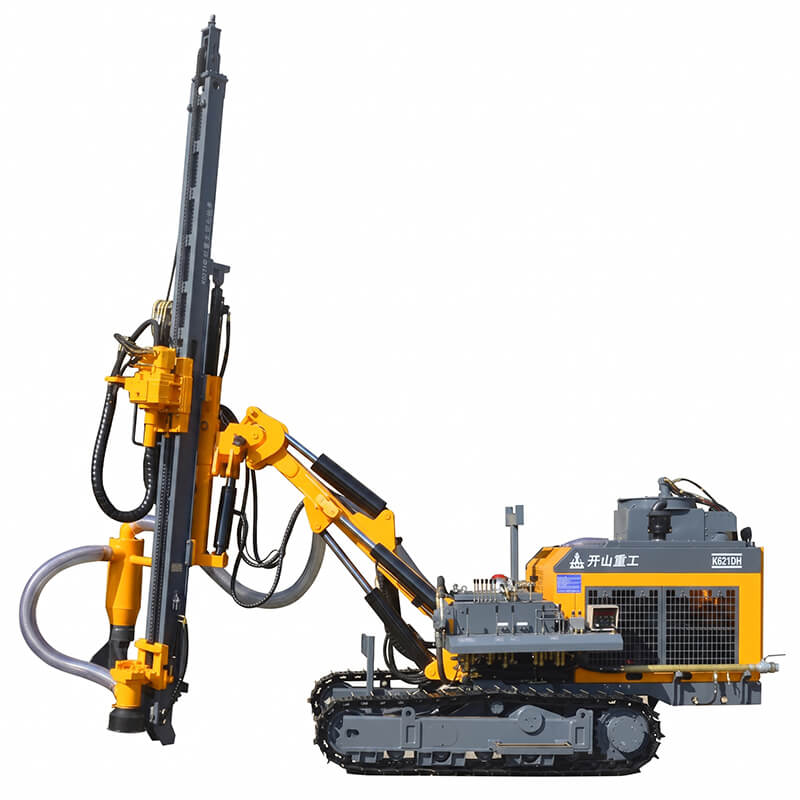

Direct Answer: The Kaishan KG510 / KG510H is a heavy-duty crawler-mounted down-the-hole (DTH) surface drilling rig engineered for medium and large-scale open-pit mining, quarry blast-hole drilling, and civil rock excavation. Powered by a 58 kW Yuchai YC4DK80-T302 Tier 3 diesel engine, it delivers 3,000–3,500 N·m rotary torque and 40 kN lifting force, drilling blast holes from ⌀105 mm to 152 mm up to 25 meters deep. The KG510H model includes an integrated high-efficiency dry-type dust collector for strict environmental compliance.
The KG510 and KG510H represent Kaishan Heavy Industry's upgraded generation of open-pit DTH drill rigs, specifically optimized to meet stringent national and international diesel engine emission standards while maximizing drilling productivity in hard rock formations (F=6 to F=20).
Featuring an upgraded structural chassis, folded-frame crawler tracks, plunger-piston walking motors, and an enlarged hydraulic displacement system, the KG510 series offers higher torque delivery, increased climbing capacity (up to 30°), and rock-solid stability during extended bench blasting operations.
Powered by an upgraded hydraulic rotary head providing up to 3,000–3,500 N·m of rotary torque and 0–100/110 rpm stepless speed control. Prevents drill bit jamming in fractured strata and accelerates penetration in hard rock.
The oil cylinder-leaf chain propulsion system provides a robust 40 kN lifting force and a 3,000 mm stroke. Augmented by a 900 mm carriage compensation cylinder to ground firmly against uneven bench toe surfaces.
High-pressure plunger piston tramming motors paired with engineering track rollers deliver 0–3.5 km/h travel speed, ≤30° gradeability, and ±10° track oscillation for superior traction on steep mountain benches.
The KG510H model features an enlarged suction volume dry dust collection unit with dual capture cylinders. Traps heavy rock dust at the hole collar to maintain clean jobsite air and protect operator health.
Multi-joint boom delivers a 185° total beam tilt, 100° beam swing, and 90° boom swing. Capable of drilling horizontal blast holes from a minimum 350/900 mm up to 2,850/3,700 mm elevation, as well as vertical and inclined toe holes.
Equipped with a Yuchai YC4DK80-T302 four-cylinder diesel engine rated at 58 kW @ 2200 rpm, delivering low specific fuel consumption, low operating noise, and easy spare-parts availability worldwide.
| Parameter | KG510 (Standard) | KG510H (with Dust Collector) |
|---|---|---|
| Drilling Hole Diameter | ⌀105 – 152 mm (4.13 – 6.0 in) | |
| Depth of Economical Drilling | 25 m | |
| Drilling Rock Hardness | f = 6 – 20 | |
| Supporting Diesel Engine | Yuchai YC4DK80-T302 (58 kW / 2200 r/min, China III) | |
| Rotary Speed & Max Torque | 0 – 100 rpm (or 0–110 rpm) | 3,000 N·m (Max 3,500 N·m) | |
| Lifting Force & Feed Method | 40 kN | Oil cylinder - leaf chain | |
| Feed Stroke & Compensation | 3,000 mm stroke | 900 mm carriage compensation | |
| Drill Rod & Hammer Compatibility | ⌀76 × 3m / ⌀89 × 3m rods | K4 (4-inch) DTH hammer | |
| Recommended Air Consumption | 13 – 22 m³/min (external portable screw compressor) | |
| Operating Dimensions (L×W×H) | 6,800 × 2,200 × 2,850 mm | 6,800 × 2,450 × 2,850 mm |
| Complete Machine Weight | 6,500 kg | 7,000 kg |
| Dust Collector System | Optional / Standard Exhaust | Built-in High-Efficiency Dry Cyclonic Dust Collector |
| Tramming Speed & Gradeability | 0 – 3.5 km/h | Climbing Capacity: ≤ 30° | |
| Ground Clearance & Track Leveling | 440 mm | Track Leveling Angle: ±10° | |
| Drill Boom Articulation Angles | Carriage Tilt: 185° (Down 135°, Up 50°) | Carriage Swing: 100° | Boom Pitch: 75° | Boom Swing: 90° | |
To achieve maximum penetration rate (ROP) with ⌀105–152 mm hole diameters and K4 hammers, the KG510/KG510H requires an external diesel portable screw air compressor delivering 13–22 m³/min at 13–19 bar. Recommended models include:
A: The primary difference is the environmental dust collection system. The KG510H is factory-fitted with a hydraulic cyclonic dry-type dust collector and dual collection cylinders, making it slightly heavier (7,000 kg vs. 6,500 kg) and compliant with strict environmental standards.
A: The KG510/KG510H is a crawler drill rig requiring an external portable screw air compressor with an air volume of 13–22 m³/min and discharge pressure of 13–19 bar (such as the Kaishan LGCY-18/17 or LGCY-19.5/19).
A: It drills borehole diameters from 105 mm to 152 mm with an economical depth of up to 25 meters using ⌀76 mm or ⌀89 mm drill pipes (3m length) and standard 4-inch DTH hammers.
