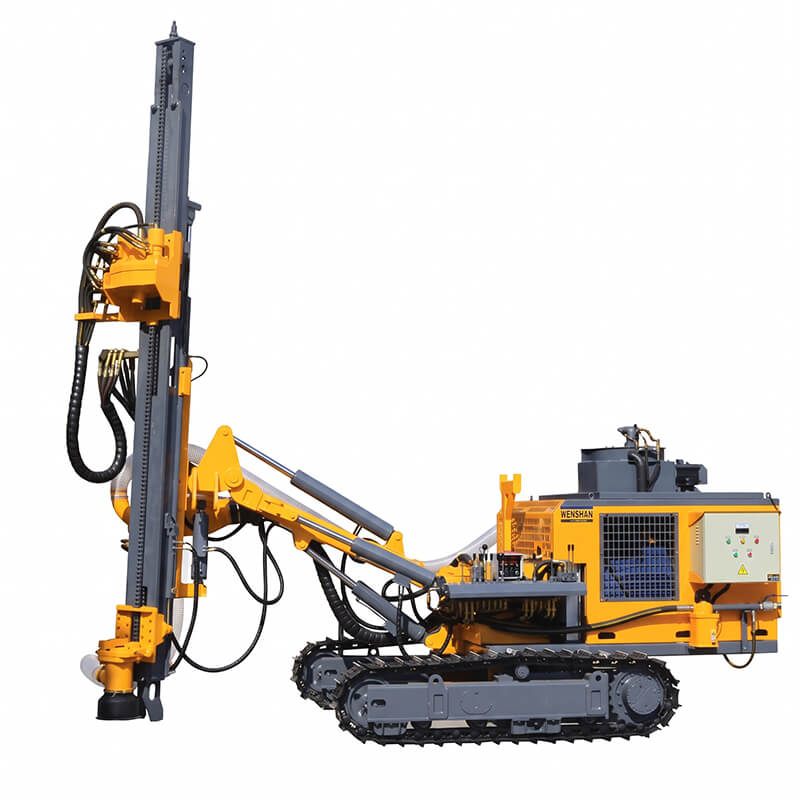

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Equipped with two independent powerplants—a Yuchai Tier 3 diesel engine (58 kW) and a high-efficiency electric motor (YE3-250M-4, 55 kW). Allows seamless switching to electric drive when grid power is available to slash operating costs and eliminate emissions.
Upgraded with dual hydraulic rotation motors delivering up to 5,000 N·m maximum torque at 0–90 rpm. Powers through large-diameter blast holes (up to 152 mm) in hard, broken, or abrasive bedrock (f=6–20) without stalling.
Features an enlarged feed hydraulic cylinder paired with heavy-duty roller chain providing 40 kN lifting force. Plunger piston tramming motors deliver high hydraulic operating pressure, allowing the crawler to conquer 30° slopes.
The KG420SH model includes a standard QZA-120 high-capacity dry cyclone dust collector (12 filter elements, upgradable to QZA-140 with 16 elements for holes >130 mm), ensuring clean, safe, and environmentally compliant quarry drilling.
| Model of drill rig | KG420S | KG420SH |
|---|---|---|
| Weight of complete machine | 5800KG | 6100KG |
| Outer dimensions | 6400×2250×2700mm | 6400×2420×2700mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-152mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-90rpm | |
| Rotary torque (Max) | 5000N·m (Max) | |
| Lifting force | 40KN | |
| Method of Feed | Oil cylinder+roller chain | |
| Feed stroke | 3175mm | |
| Travelling speed | 0-2.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 290mm | |
| Tilt angle of beam | Down: 110°, up: 35°, total: 145° | |
| Swing angle of beam | Left: 91°, right: 5°, total: 96° | |
| Pitch angle of drill boom | Down: 55°, up: 15°, total: 70° | |
| Swing angle of drill boom | Left: 32°, right: 32°, total: 64° | |
| Compensation length of beam | 970mm | |
| Supporting power | Yuchai YC4DK80-T302 (58KW/2200r/min) / Motor YE3-250M-4 (55kw/1460r/min) | |
| DTH hammer | 4" | |
| Drilling rod | Φ76×2m + Φ76×3m | |
| Air consumption | 13-20m³/min | |
| Maximum height of horizontal hole | 2850mm | |
| Minimum height of horizontal hole | 350mm | |
| Dust collector | None | Standard: QZA-120 (12 filter elements) Alternative: QZA-140 (16 filter elements) |
Note: When the hole diameter of the dust collector exceeds Φ130mm, the dust collector must be upgraded and enlarged.

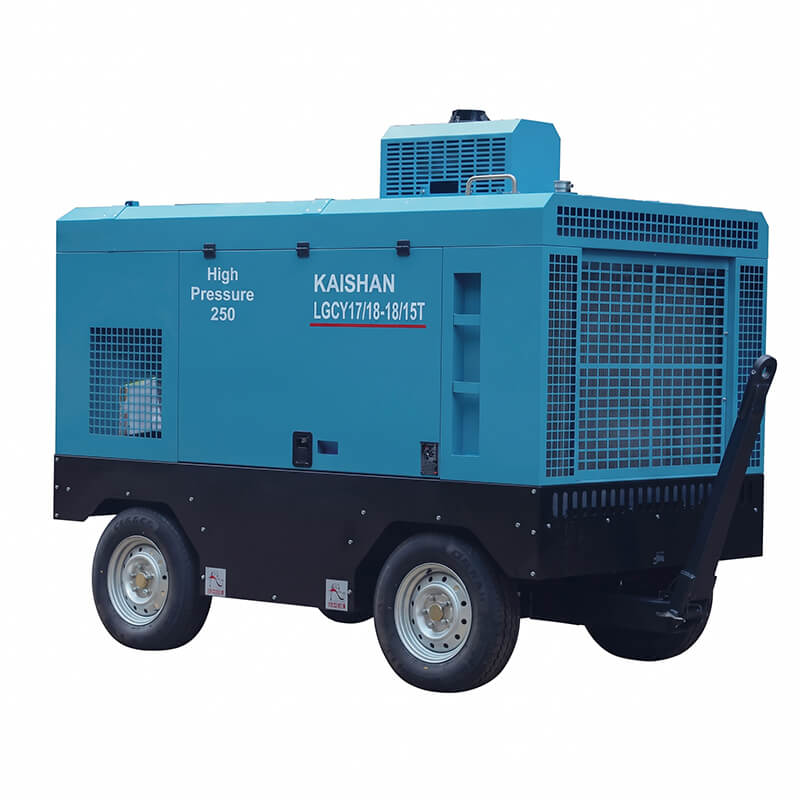

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: The rig integrates two independent powerplants that operate separately. In remote sites without power infrastructure, it runs on the 58 kW Yuchai diesel engine; on electrified sites, it switches to the 55 kW YE3 electric motor, cutting energy costs by up to 50% with zero emissions.
A: The KG420S/SH increases drilling diameter from 130 mm to 152 mm, more than doubles rotary torque from 2,000 N·m to 5,000 N·m via dual hydraulic motors, increases lifting force from 25 kN to 40 kN with a roller chain, and adds an electric motor for dual-power capability.
