Our Quzhou engineering desk calculates the exact borehole diameter, rock hardness, and necessary CFM/Bar ratio for your project.
Category Showcase
Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

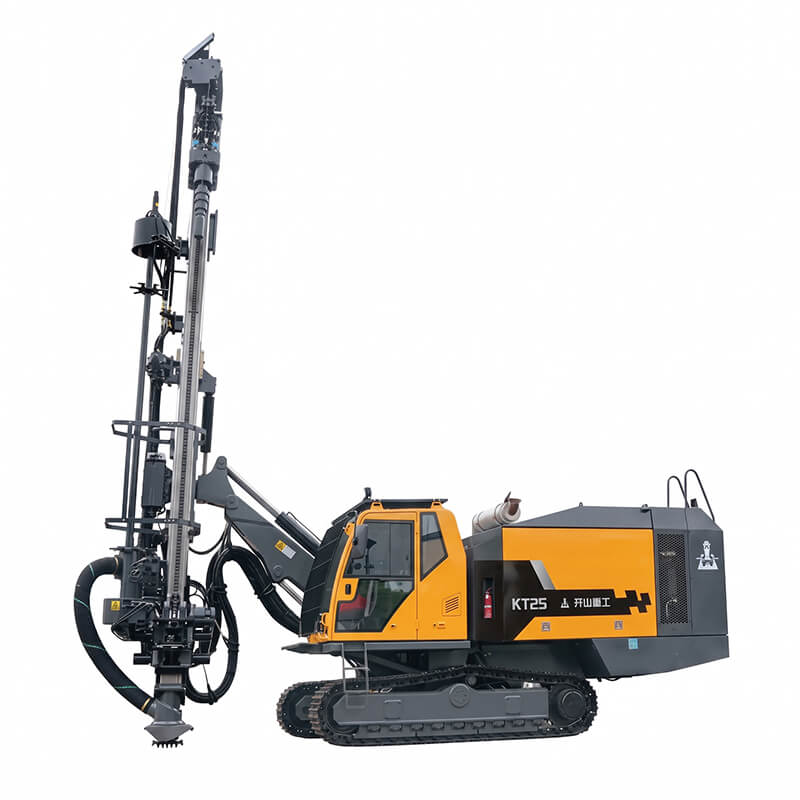

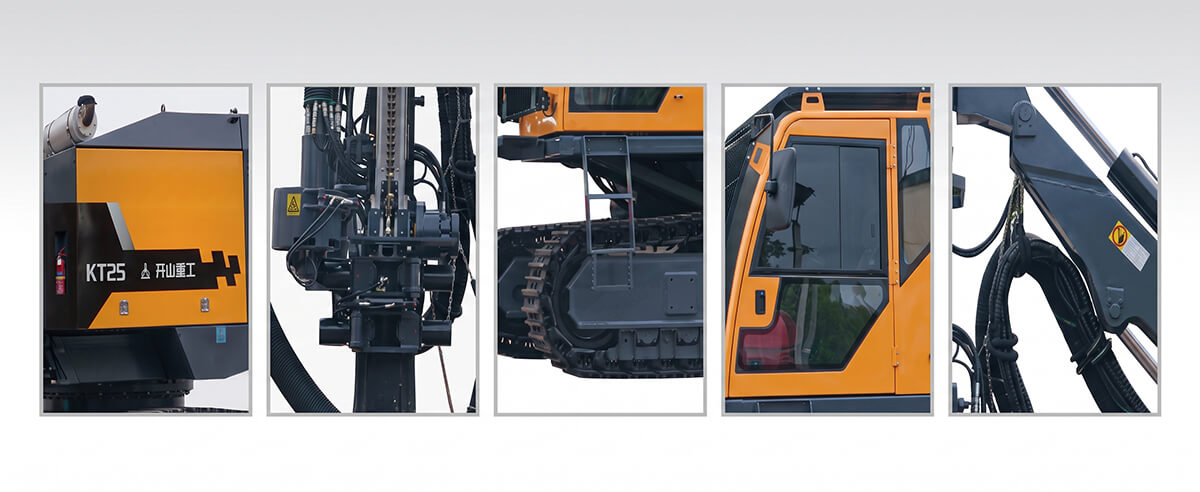

Combines heavy DTH mining percussion drilling with an onboard giant two-stage screw air compressor (31 m³/min @ 25 bar / 363 psi) on a single crawler platform. Driven by a 372 kW (500 HP) Cummins QSZ13-500 diesel engine via dual-terminal outputs, it eliminates trailing air hoses and cuts quarry diesel fuel burn by up to 25%.
Delivers an extraordinary 6,100 N·m rotary torque and 65 kN feed force for 5″/6″ DTH hammers in large 152–203 mm blast holes. The automated carousel for heavy Φ102/Φ114/Φ127 mm rods (5m/6m length), floating joint thread protection, and digital display allow precision single-operator drilling down to 36 meters.
Built on a reinforced 28,100 kg crawler undercarriage with 410 mm ground clearance and ±10° frame leveling for 25° gradeability. Features a fully enclosed, climate-controlled operator cab certified to international FOPS & ROPS safety standards with dry cyclonic laminar flow dust extraction.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KT25 Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 152-203 mm |
| Depth of economical drilling (depth of automatic extension rod) | 35m / 36m |
| Travelling speed | 3.0 Km/h |
| Climbing capacity | 25° |
| Ground clearance | 410 mm |
| Power of complete machine | 372 Kw |
| Diesel engine | Cummins QSZ13-500-30 |
| Screw compressor | Two stage compression 31 m³/min / 25 bar |
| Outer dimensions (L×W×H) | 12100×2900×3850 mm |
| Weight | 28100 Kg |
| Revolving speed of gyrator | 0-100 / 0-150 r/min |
| Rotary torque | 6100 N·m |
| Maximum Feed force | 65 KN |
| Tilt angle of beam | 133° |
| Swing angle of carriage | Right 37°, left 37° |
| Swing angle of drill boom | Right 30°, left 17° |
| Lifting angle of drill boom | Up 49°, down 13° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1800 mm |
| Method of propulsion | Motor + roller chain |
| Feed stroke | 5700 mm / 6700 mm |
| DTH hammer | 5", 6" |
| Drilling rod (Φ× length of drilling rod) | Φ102/Φ114/Φ127×5000 mm or Φ102/Φ114/Φ127×6000 mm |
| Drilling rod (number of rods) | 6+1 / 5+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow) / wet (optional) |
| Method of extension rod | Automatic unloading rod |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of thread of drilling rod | Equipped with a floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS & ROPS |
A: The KT25 is Kaishan's largest super-heavy surface DTH rig, upgrading diesel engine power to 372 kW / 500 HP (vs. 298 kW on KT15C), increasing compressor delivery to 31 m³/min @ 25 bar (vs. 22 m³/min @ 24 bar), expanding maximum hole diameter to 203 mm / 8 inches (vs. 190 mm), boosting rotary torque to 6,100 N·m (vs. 4,100 N·m), handling larger Φ102/Φ114/Φ127 mm rods up to 6 meters in length, and increasing machine weight to 28,100 kg for rock-solid drilling stability.
A: Yes. The KT25 features an automated carousel system configured for either 6+1 (5-meter rods) or 5+1 (6-meter rods) with diameters of Φ102, Φ114, or Φ127 mm, coupled with mechanical floating thread protection, automatic oil injection, and anti-sticking electro-hydraulic control for continuous single-operator drilling down to 36 meters.
A: No. The KT25 is completely self-contained. The 372 kW Cummins diesel engine powers all hydraulic positioning, feed, and tramming systems while directly driving the onboard 25-bar two-stage screw compressor, operating completely autonomously with zero trailing air hoses.
