Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

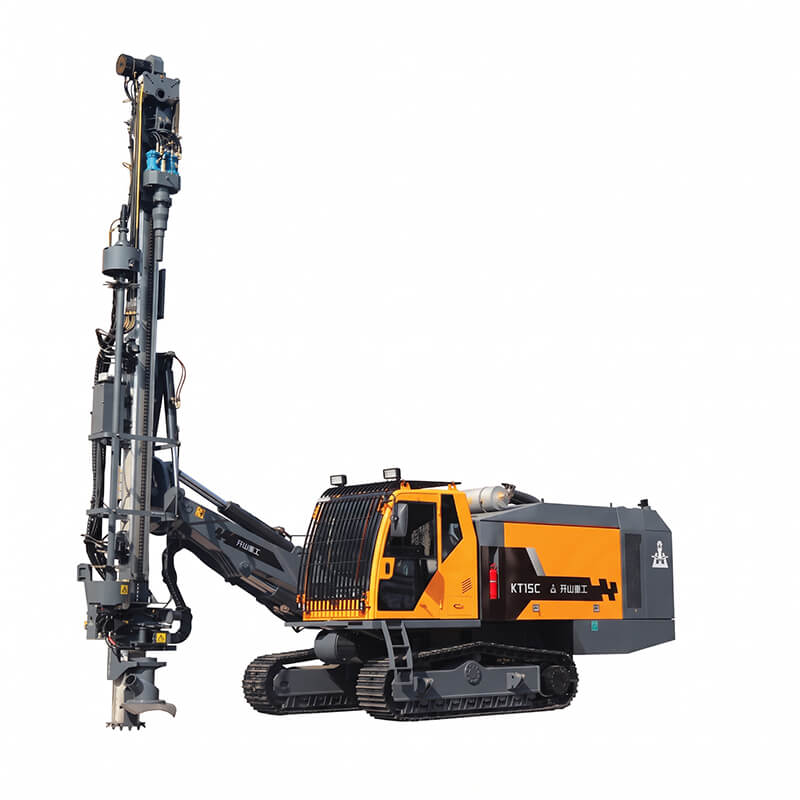

Combines heavy DTH mining percussion drilling with an onboard high-capacity two-stage screw compressor (22 m³/min @ 24 bar / 348 psi) on a single crawler platform. Driven by a 298 kW (400 HP) Cummins QSZ13-C400 diesel engine via dual-terminal outputs driving variable hydraulic systems, eliminating trailing air hoses and reducing mine fuel burn by up to 25%.

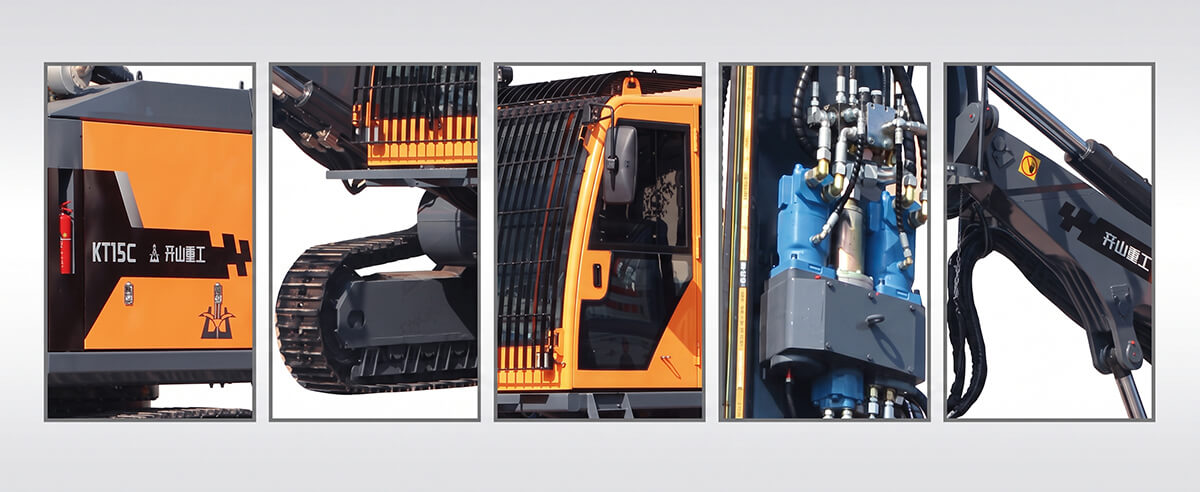

Features a high-strength aluminum alloy feed beam delivering 65 kN maximum feed force and 4,100 N·m torque for 4″/5″/6″ DTH hammers. The automated carousel (8+1 or 6+1 for Φ89/Φ102 mm rods), floating joint thread protection, and digital angle/depth display allow precision single-operator drilling down to 36 meters.
Built on a reinforced 24,800 kg crawler undercarriage with 140 kN heavy traction, 430 mm ground clearance, and ±10° frame leveling for 25° gradeability. Features a fully enclosed, climate-controlled operator cab certified to international FOPS & ROPS safety standards with dry cyclonic laminar flow dust extraction.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KT15C Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 140-190 mm |
| Depth of economical drilling (depth of automatic extension rod) | 36/35 m |
| Travelling speed | 3.0 km/h |
| Climbing capacity | 25° |
| Traction | 140 kN |
| Ground clearance | 430 mm |
| Power of complete machine | 298 kW |
| Diesel engine | Cummins QSZ13-C400-30 |
| Screw compressor | Two stage compression 22 m³/min / 24 bar |
| Outer dimensions (L×W×H) | 11000×2780×3800 mm |
| Weight | 24800 kg |
| Revolving speed of gyrator | 0-100 r/min |
| Rotary torque | 4100 N·m |
| Maximum Feed force | 65000 N |
| Method of propulsion | Roller chain |
| Tilt angle of beam | 128° |
| Lift angle of drill boom | Up 51°, down 19° |
| Swing angle of carriage | Right 97°, left 33° |
| Swing angle of drill boom | Right 45°, left 15° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1500/1800 mm |
| Feed stroke | 4580/5580 mm |
| DTH hammer | 4", 5", 6" |
| Drilling rod (Φ× length of drilling rod) | Φ89/Φ102×4000 mm / Φ89/Φ102×5000 mm |
| Number of rods | 8+1 / 6+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow) / wet (optional) |
| Method of extension rod | Automatic unloading rod |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of thread of drilling rod | Equipped with a floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS & ROPS |
A: The KT15C is Kaishan's heavy mining flagship model, upgrading engine displacement to a 13-liter Cummins QSZ13 (298 kW vs. 264 kW), boosting screw compressor delivery to 22 m³/min @ 24 bar (vs. 20 m³/min @ 22 bar), expanding borehole diameter up to 190 mm (vs. 152 mm), increasing maximum feed thrust to 65 kN (vs. 40 kN), and featuring automated handling for larger Φ89/Φ102 mm drill pipes up to 5 meters in length.
A: Yes. The KT15C comes equipped with an integrated real-time digital drilling display system inside the cabin that monitors drilling angle and borehole depth with high accuracy, ensuring precise explosive charging and optimal rock fragmentation.
A: No. The KT15C is completely self-contained. The 298 kW Cummins engine drives both the heavy variable hydraulic system and the onboard 24-bar screw compressor, eliminating external tow-behind compressors and trailing hoses completely.
