Equipped with high-performance hydraulic drifter options (HC50 / HC95 / YYG18U / HC95LMH / YYG22U) delivering 13–22 kW impact power at 53–62 Hz. The advanced stepped piston design optimizes shockwave transmission efficiency, accelerates penetration rates, reduces consumable rod wear, and enhances overall equipment availability.
Features a heavy-duty K 22 universal drill boom with 800 mm telescopic extension, 1600 mm feed extension, 360° beam rollover, and automatic hydraulic parallelism. Provides optimum cross-sectional coverage for headings between 7–25 m² and easily adapts to cross-cut face drilling and roof bolting operations.
Built on a compact 1600 mm wide articulated 4WD carrier powered by a Cummins B3.9CS4-80C diesel engine (59 kW) for agile narrow-vein tramming, paired with a 45/55/75 kW electro-hydraulic power pack for zero-emission underground drilling, enclosed wet multi-disc brakes, and a hydraulic telescopic FOPS & ROPS safety canopy.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 11150mm | Air compressor | DLGF 0.7/8-5.5(B) |
| Width | 1600mm | Capacity of air compressor | 0.7m³/min |
| Height | 1850/2650mm | Pressure | 6-8bar |
| Weight | Appr. 11000kg | Device of shank lubrication | Electronic pulse lubrication pump |
| Tramming speed on flat ground | 10km/h | Air consumption of lubrication | 0.3m³/min |
| Maximum climbing capacity | 25%( 14°) | Oil Consumption of lubrication | 180-250g/h |
| Safety protection | Power of water pump | 1.5kW / 4kW | |
| Noise level | < 100dB(A) | Capacity of water pump | 3m³/h / 5.8m³/h |
| Lifting safety roof | FOPS & ROPS certified | Chassis | |
| Diesel engine | Cummins B3.9CS4-80C 59KW/2500rpm | ||
| Steering mechanism | Articulated steering: ±35° | Drive system | Closed hydraulic system for four-wheel driving |
| Parking braking | Wet multi-disc brake | Swing angle | Swing of rear axle: ±6° |
| Travelling braking | Hydrostatic braking | Fuel tank | 30L |
| Drilling system | |||
| Rock drill | HC50 | HC95 / YYG18U | HC95LMH / YYG22U |
| Rod size | R38 / T38 | ||
| Impact power | 13KW | 20KW / 18KW | 21KW / 22KW |
| Impact Frequency | 62Hz | 62Hz / 57Hz | 62Hz / 53Hz |
| Hole diameter | Φ32-76mm | Φ42-89mm | Φ42-102mm |
| Beam rotation | 360° | ||
| Feed extension | 1600mm | ||
| Model of drill boom | K 22 | ||
| Form of drill boom | Self-leveling | ||
| Boom extension | 800mm | ||
| Electric hydraulic power unit | |||
| Motor | 45kW | 55kW | 75kW |
| Impact /Feed/ Positioning | Axial variable displacement piston pump | ||
| Rotation | Gear pump | ||
| Filter fineness | 10 μ | ||
| Hydraulic oil tank | 240L | ||
| Hydraulic cooler | Water cooler | ||
| Working voltage | 380V | ||
| Frequency | 50Hz | ||
| Starting method | Star-triangle | ||
| Cable specifications | 3×35+3G6 | 3×50+3G10 | |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, drifter selections (HC50 / HC95 / YYG18U / YYG22U), and tailored underground electrical voltages are available upon request for bulk orders.

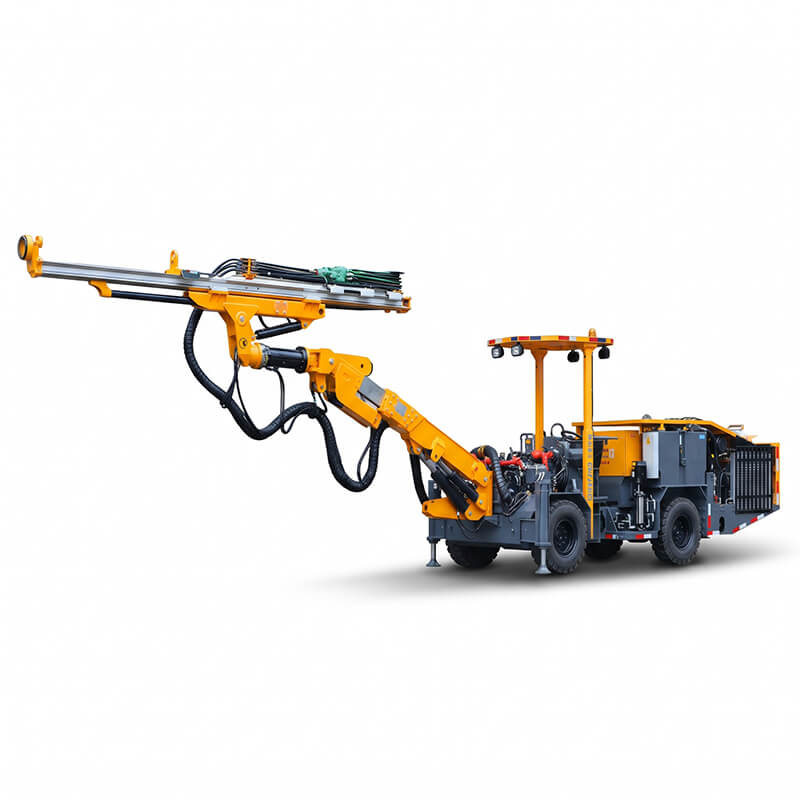

The Kaishan KJ211 hydraulic underground mining jumbo is specifically engineered for high-speed drifting, tunneling, and production preparation across medium-to-hard rock headings (7–25 m²):

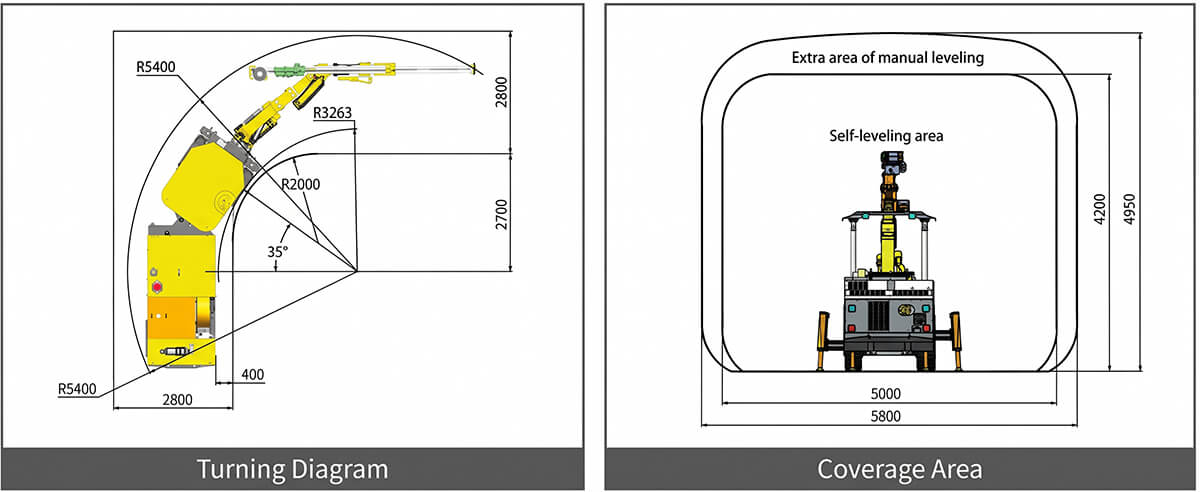

The KJ211 is optimized for underground tunnel cross-sections from 7 m² to 25 m², with automatic hydraulic self-leveling coverage of 5000 mm width × 4200 mm height and extended manual leveling reach of 5800 mm width × 4950 mm height.
Customers can choose from multiple drifter models, including HC50 (13 kW, Φ32–76 mm), HC95 / YYG18U (18–20 kW, Φ42–89 mm), or HC95LMH / YYG22U (21–22 kW, Φ42–102 mm). The electric-hydraulic power pack can be configured with 45 kW, 55 kW, or 75 kW electric motors depending on the chosen rock drill and site voltage (380V/50Hz standard; custom voltages available).
As an authorized China manufacturer and global B2B supplier, we offer factory-direct pricing, flexible MOQs, customized electrical configurations, and full genuine spare-parts support (drifter seal kits, shank adapters, R38/T38 drill rods, and hydraulic pump consumables). Contact our export team for an official FOB/CIF quotation and technical specifications.
