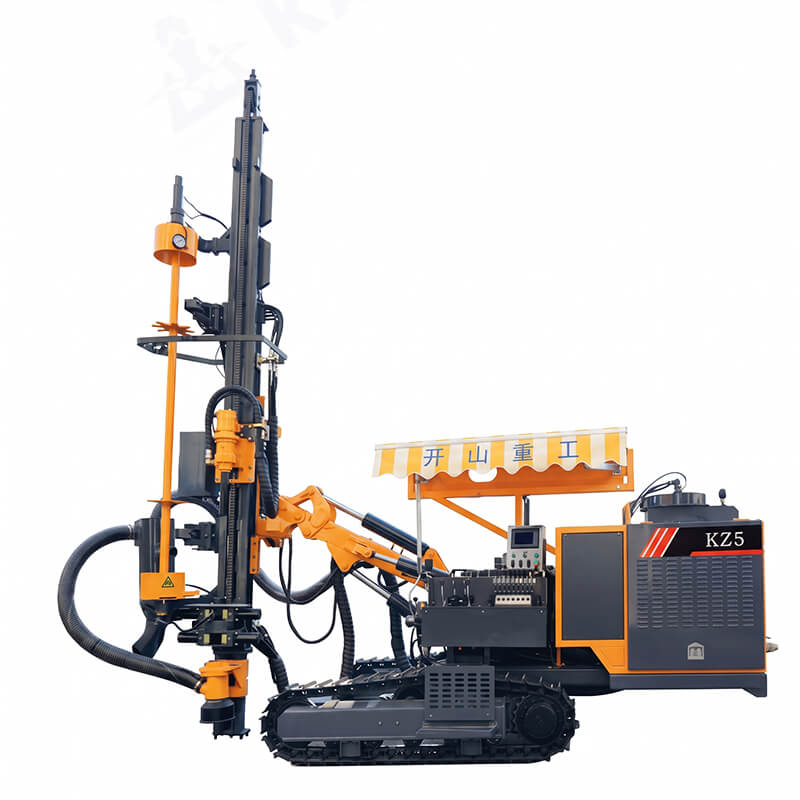

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

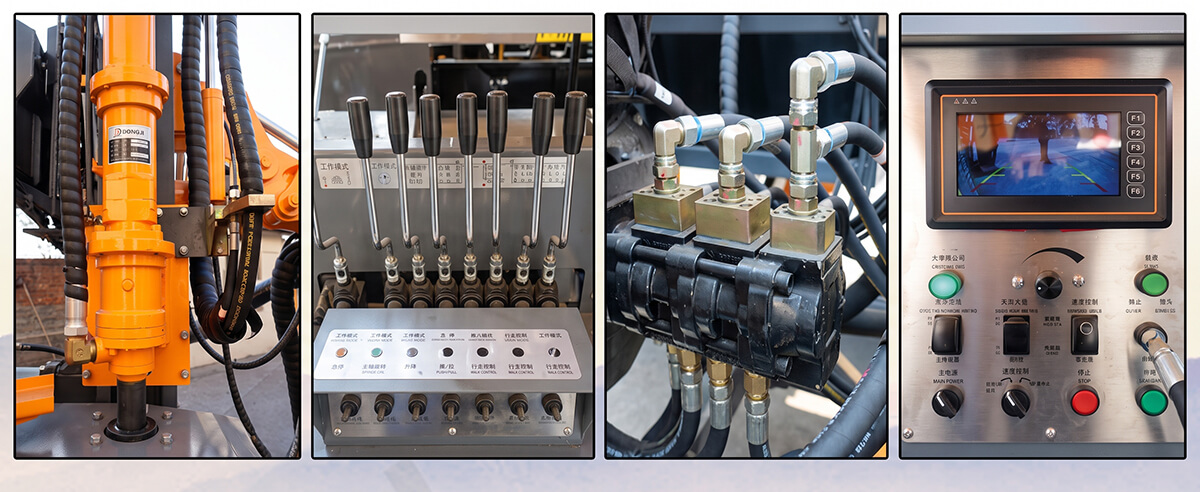

Features an automated mechanical carousel storing 7+1 drill pipes (Φ64×3000 mm) with a hydraulic breakout and thread-lubricating system. Enables one-man operation to drill up to 21 meters economically without manual pipe handling.
Equipped with an 8-filter-element dry cyclonic laminar flow dust extraction system driven hydraulically. Provides strong suction to eliminate airborne silica dust, creating an eco-compliant and clean quarry environment.
Outfitted with a heavy-duty sunshade protective canopy, side-view mirrors, and dual side/rear reversing cameras with an operator screen, maximizing visibility, jobsite safety, and operator comfort during positioning.
Powered by a 73.5 kW Yuchai YC4DK100 engine driving hydraulic tramming (≤30° gradeability), carriage swing (left 52°/right 53°), beam tilt (147°), and frame leveling (±10°) to adapt to steep bench contours.
| Model of drill rig | KZ5 |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ90-115 mm |
| Depth of economical drilling | 21 m |
| Travelling speed | 0-3.0 Km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 330 mm |
| Power of complete machine | 73.5 Kw |
| Diesel engine | Yuchai YC4DK100-T304 |
| Outer dimensions (L×W×H) | 7300×2345×2700 mm |
| Weight | 7900KG |
| Revolving speed of gyrator | 0-180 r/min |
| Rotary torque | 1500 N*m |
| Maximum Feed force | 30000 N |
| Lifting angle of drill boom | Up 48°, down 16° |
| Tilt angle of beam | 147° |
| Swing angle of carriage | left 52°, Right 53° |
| Swing angle of drill boom | left 40°, Right 38° |
| Leveling angle of frame | Up 10°, down 10° |
| One-time advance length | 3500 mm |
| Compensation length | 900 mm |
| DTH hammer | 3" |
| Drilling rod (Φ× length of drilling rod) | Φ64×3000 mm |
| Storage capacity of rod | 7+1 |
| Dust collection method | Dry (hydraulic cyclonic laminar flow) 8 filter elements |
| Connecting rod method | Automatic unloading rod |
| Drill rod lubrication method | Automatic oil injection and lubrication |

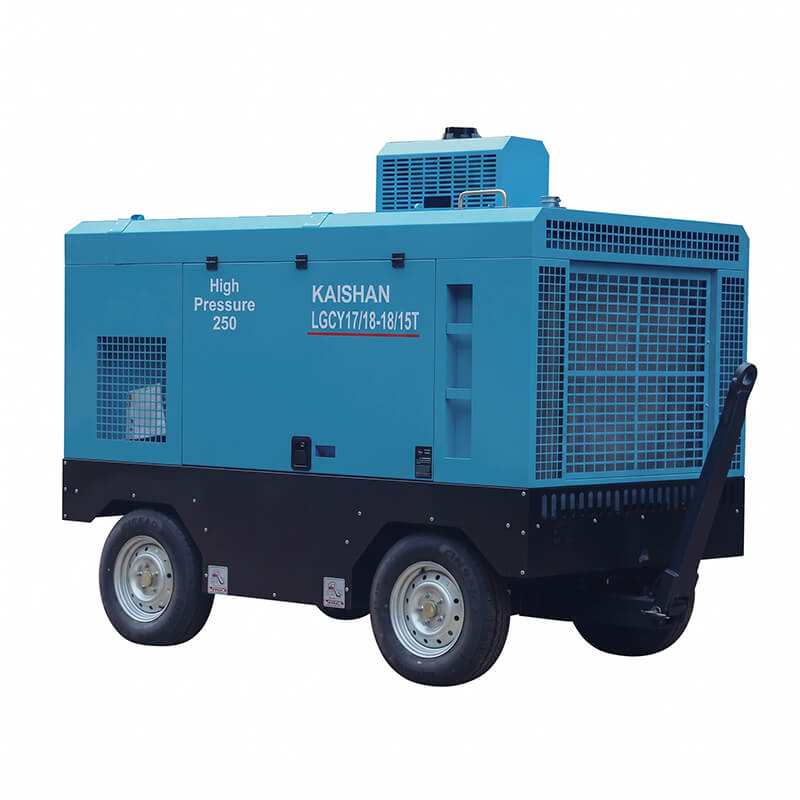

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: The automated carousel stores seven 3-meter drill rods plus one on the mast. Combined with automatic hydraulic breakout and automatic thread lubrication, it allows a single operator to complete a 21-meter hole quickly and safely from the console without physical fatigue or risk of injury.
A: The rig is equipped with side and rear reversing cameras with a live monitor, an overhead weather/sunshade canopy, full emergency stop circuits, hydraulic frame leveling (±10°), and an 8-element cyclone dry dust collector to keep operators safe and comfortable.
