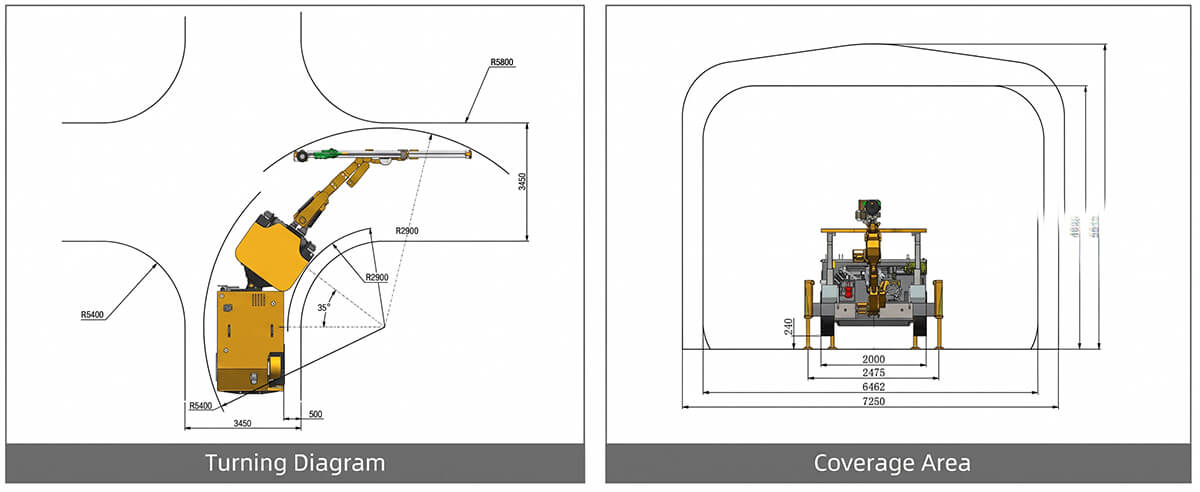

Specifically engineered for low-height mines and tunnels with a compact machine height of only 1465 mm (up to 1985 mm with canopy raised). Easily drills vertical, inclined, and horizontal blast holes across tunnel cross-sections ranging from 3.5m × 1.8m up to 5m × 4.8m in any hard rock conditions.
Fitted with a heavy-duty K 26 self-leveling boom offering 1200 mm telescopic extension, 1600 mm feed extension, and 360° feed beam rollover. Paired with high-frequency stepped piston drifters (HC50 13 kW or HC95/RD18U 18–20 kW at 57–62 Hz) for fast penetration, reduced steel wear, and side-opening/bolting flexibility.
Built on a 2000 mm wide articulated 4WD carrier powered by a Cummins B3.9CS4-80C diesel engine (59 kW) for narrow tunnel tramming, paired with a 45/55 kW electro-hydraulic power pack for zero-emission drilling, multidisc brakes, emergency braking, and a certified FOPS & ROPS lifting safety canopy.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 11160mm | Air compressor | DLGF 0.7/8-5.5(B) |
| Width | 2000mm | Capacity of air compressor | 0.7m³/min |
| Height | 1465/1985mm | Pressure | 6-8bar |
| Weight | Appr. 11000kg | Device of shank lubrication | Electronic pulse lubrication pump |
| Tramming speed on flat ground | 10km/h | Air consumption of lubrication | 0.3m³/min |
| Maximum climbing capacity | 25%( 14°) | Oil Consumption of lubrication | 180-250g/h |
| Safety protection | Power of water pump | 1.5kW / 4kW | |
| Noise level | < 100dB(A) | Capacity of water pump | 3m³/h / 5.8m³/h |
| Lifting safety roof | FOPS & ROPS certified | Chassis | |
| Diesel engine | Cummins B3.9CS4-80C 59KW/2500rpm | ||
| Steering mechanism | Articulated steering: ±35° | Drive system | Closed hydraulic system for four-wheel driving |
| Parking braking | Multidisc brake | Swing angle | Swing of rear axle: ±6° |
| Emergency braking | Equipped | Fuel tank | 30L |
| Drilling system | |||
| Rock drill | HC50 | HC95 / RD18U | |
| Rod size | R38 / T38 | ||
| Impact power | 13KW | 20KW / 18KW | |
| Impact Frequency | 62Hz | 62Hz / 57Hz | |
| Hole diameter | Φ32-76mm | Φ42-89mm | |
| Beam rotation | 360° | ||
| Feed extension | 1600mm | ||
| Model of drill boom | K 26 | ||
| Form of drill boom | Self-leveling | ||
| Boom extension | 1200mm | ||
| Electric hydraulic power unit | |||
| Motor | 45kW | 55kW | |
| Impact /Feed/ Positioning | Axial variable displacement piston pump | ||
| Rotation | Gear pump | ||
| Filter fineness | 10 μ | ||
| Hydraulic oil tank | 240L | ||
| Hydraulic cooler | Water cooler | ||
| Working voltage | 380V | ||
| Frequency | 50Hz | ||
| Starting method | Star-triangle | ||
| Cable specifications | 3×35+3G6 | 3×50+3G10 | |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, drifter selections (HC50 / HC95 / RD18U), and tailored underground electrical voltages are available upon bulk order request.

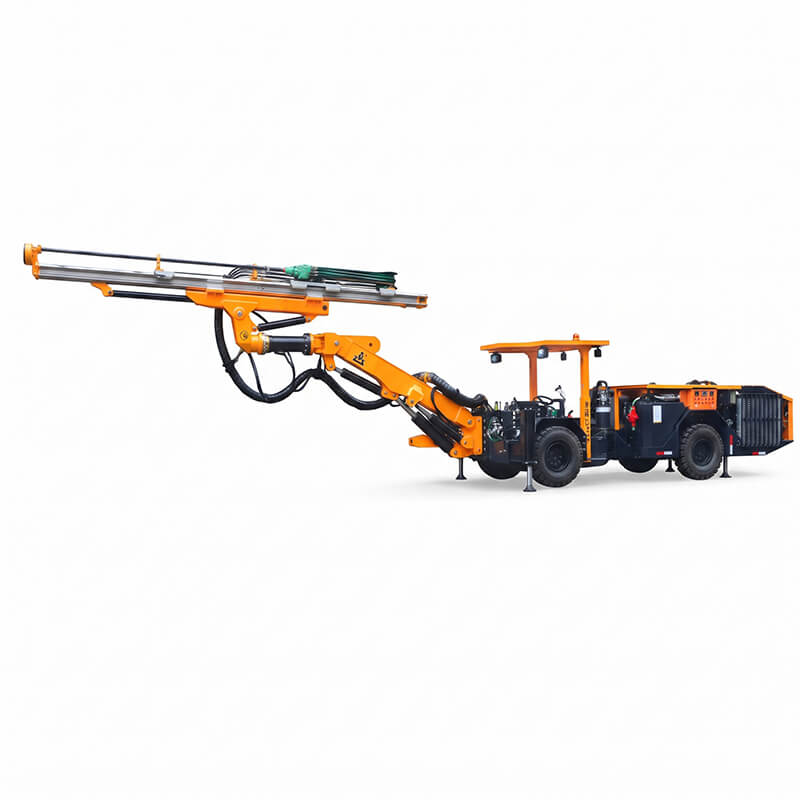

The Kaishan KJ212 low-profile hydraulic underground mining jumbo is specifically engineered for high-speed drifting, tunneling, and production preparation across medium-to-hard rock headings:
The KJ212 is a specialized low-profile jumbo designed with a lower transport height (1465 mm vs 1850 mm on the KJ211) and a wider 2000 mm track base. It features the upgraded K 26 drill boom with an extended 1200 mm boom extension (compared to 800 mm on the KJ211), providing larger lateral coverage suitable for low-height, wide headings.
The KJ212 can be configured with an HC50 hydraulic drifter (13 kW, Φ32–76 mm) or an HC95 / RD18U drifter (18–20 kW, Φ42–89 mm). The electro-hydraulic power station is equipped with 45 kW or 55 kW electric motors operating at 380V/50Hz (custom international voltages available upon request).
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, customized electrical configurations, and complete genuine spare parts support (drifter seal kits, shank adapters, R38/T38 drill rods, and hydraulic pump consumables). Contact our export team for an official FOB/CIF quotation and technical datasheet.
