Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

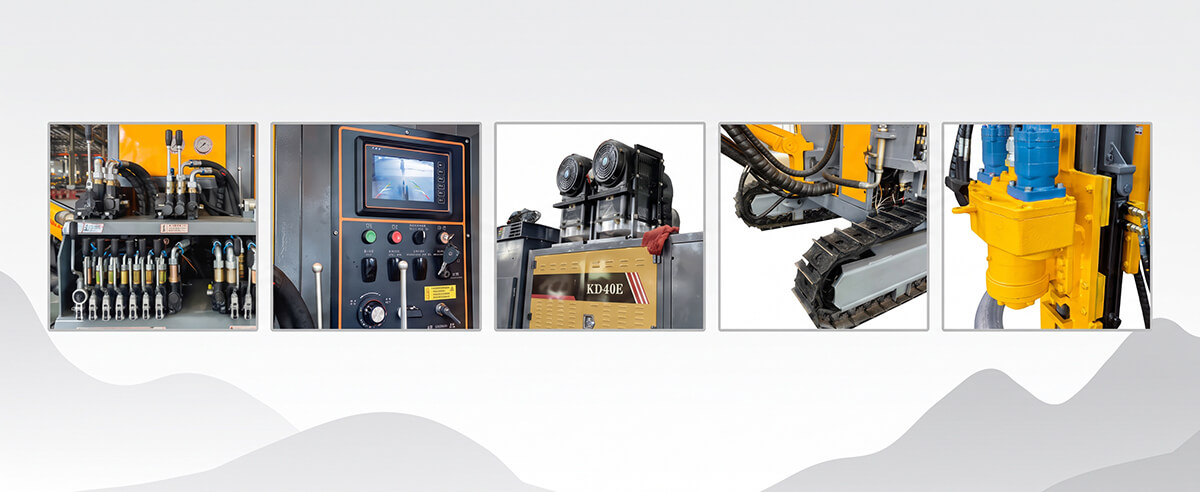

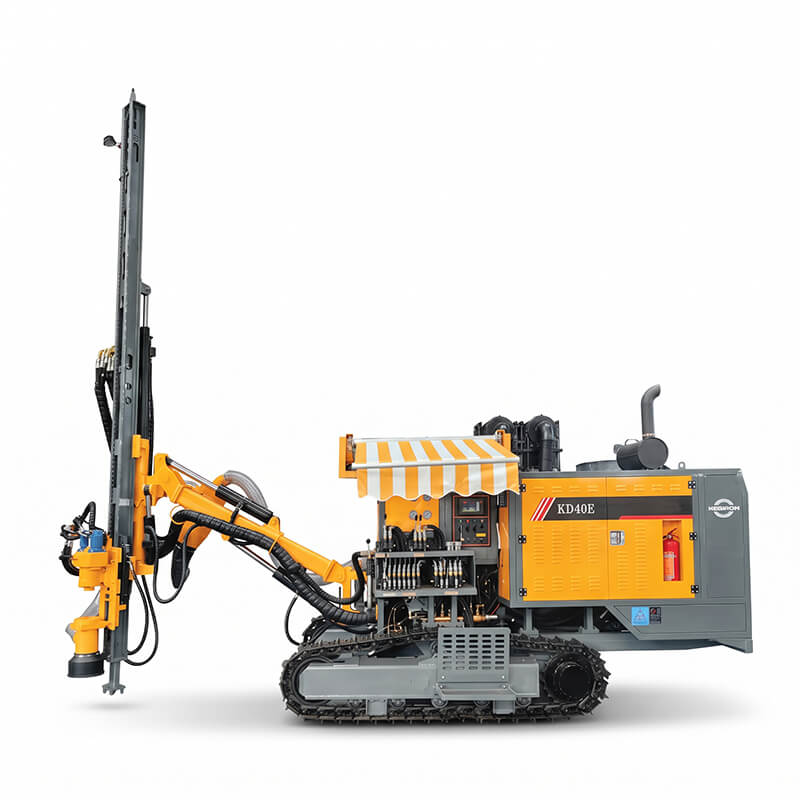

Combines heavy DTH percussion rock drilling and an onboard two-stage screw compressor (15 m³/min @ 18 bar / 261 psi) onto a single self-propelled crawler chassis. Powered by a single 162 kW (220 HP) Yuchai YC6J220 diesel engine, it eliminates the need to tow a trailer compressor, reduces jobsite diesel burn by up to 25%, and avoids trailing air-hose hazards.
Upgraded with a high-torque rotary head delivering 2,000 N·m maximum torque and 25,000 N (25 kN) push-pull feed force, expanding borehole coverage up to 127 mm. Features an articulated boom with 125° beam tilt, 79° carriage swing, and a 900 mm compensation stroke for versatile vertical, inclined, and low horizontal toe-hole blasting.
Built on an 8,600 kg heavy-duty crawler undercarriage with dual-speed tramming motors (2.5/4 km/h), 330 mm ground clearance, and ±10° hydraulic frame levelling for steady gradeability up to 25° on rugged quarry benches. Outfitted with an onboard, hydraulic-driven cyclonic laminar-flow dry dust collection system for clean, eco-compliant operations.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD40E Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 90-127 mm |
| Depth of economical drilling | 20 m |
| Travelling speed | 2.5/4 km/h (Dual speed) |
| Climbing capacity | ≤25° |
| Ground clearance | 330 mm |
| Power of complete machine | 162 kW |
| Diesel engine | Yuchai YC6J220-T300 |
| Screw compressor | 15 m³/min / 18 bar |
| Outer dimensions (L×W×H) | 7900×2390×2620 mm |
| Weight | 8600 kg |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque (Max) | 2000 N·m (Max) |
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 50°, down 25° |
| Tilt angle of beam | 125° |
| Swing angle of carriage | Left 39°, right 40° |
| Swing angle of drill boom | Left 44°, right 39° |
| Levelling angle of frame | Up 10°, down 10° |
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
| DTH hammer | 3" |
| Drilling rod | Φ64 × 3000 mm |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
A: The KD40E upgrades the onboard two-stage screw compressor to 15 m³/min @ 18 bar (versus 12 m³/min @ 15 bar on KD35E), increases maximum rotary torque to 2,000 N·m (versus 1,680 N·m), expands borehole diameter up to 127 mm (versus 115 mm), enhances frame leveling to ±10° (up 10°, down 10°), and increases machine operating weight to 8,600 kg for superior drilling stability in hard rock.
A: No. The KD40E is an all-in-one integrated crawler drill rig with an onboard 18-bar, two-stage screw air compressor driven directly by its 162 kW Yuchai diesel engine, operating autonomously with no trailing air hoses.
A: Yes. The heavy articulated drill boom offers extensive angular positioning: 125° beam tilt, carriage swing from left 39° to right 40°, boom swing from left 44° to right 39°, and lifting angles from up 50° to down 25°, enabling versatile drilling of vertical blast holes, inclined pre-split holes, and horizontal toe holes.
