Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

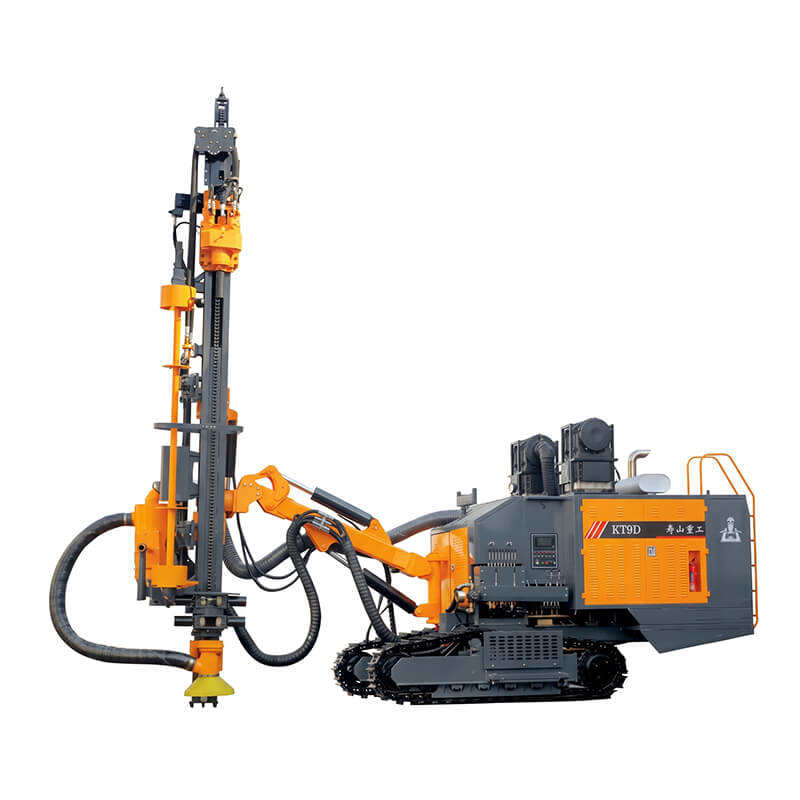

Powered by a single 295 kW (400 HP) Yuchai YCK09400 diesel engine utilizing dual-terminal output to simultaneously drive the hydraulic system and an onboard two-stage rotary screw compressor (20 m³/min @ 22 bar / 319 psi). Eliminates auxiliary compressor towing and reduces jobsite diesel consumption by up to 30%.

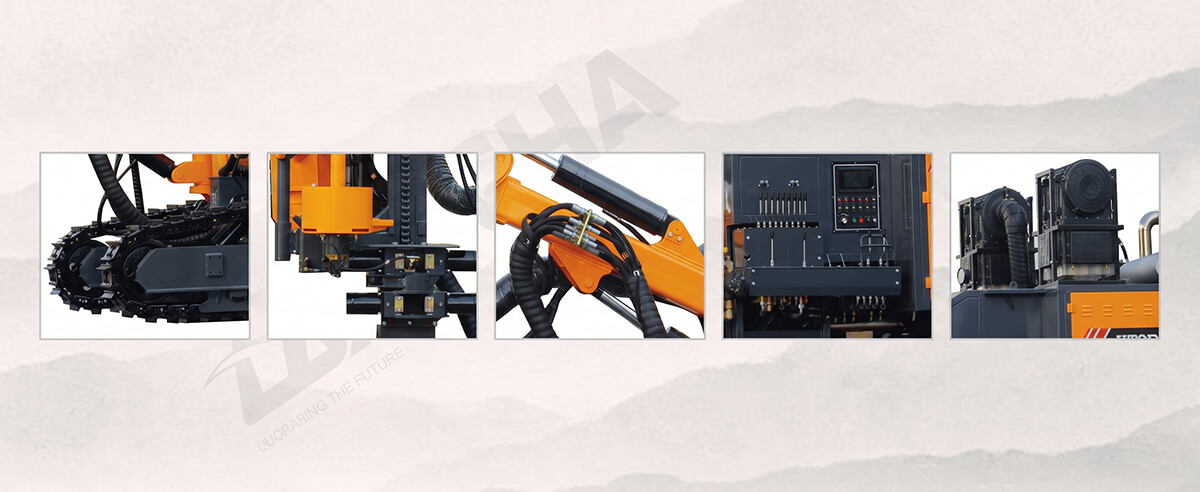

Features an automated pipe-handling carousel storing 7+1 drill rods (Φ76×3000 mm), hydraulic breakout cylinder, automatic thread lubrication, and an intelligent anti-sticking system. Automatically adjusts feed and rotation when encountering fractures, enabling safe, single-operator drilling down to 24 meters.
Equipped with an advanced dual-hinge carriage swing mechanism (Hinge 1: Right 48°/Left 47°; Hinge 2: Right 92°/Left 3°) and 4,000 N·m rotary torque. The heavy 13,000 kg chassis features 430 mm ground clearance, dual-speed travel, ±10° frame leveling, and a dry cyclonic dust collector for 25° slope stability.
| Parameter | KT9D Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ115-165 mm |
| Depth of economical drilling | 24 m |
| Number of rods | 7+1 |
| Travelling speed | 2.5/3.5 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Power of complete machine | 295kW/1900r/min |
| Diesel engine (choose) | Yuchai YCK09400-T300 |
| Screw compressor | Two stage compression 20 m³/min / 22 bar |
| Outer dimensions (L×W×H) | 8670×2300×3200 mm |
| Weight | 13000 kg |
| Rotation speed of gyrator | 0-100 r/min |
| Rotary torque (Max) | 4000 N·m (Max) |
| Maximum push-pull force | 25KN |
| Method of propulsion | Motor+roller chain |
| Lifting angle of drill boom | Up 50°, down 20° |
| Tilt angle of beam | 120° |
| Swing angle of carriage | Hinge Point 1: Right 48°, Left 47° / Hinge Point 2: Right 92°, Left 3° |
| Swing angel of drill boom | Right 46°, left 59° |
| Leveling angle of frame | ±10° |
| One-time advance length | 3590 mm |
| Compensation length | 900 mm |
| DTH hammer | 5" |
| Drilling rod | Φ76×3000 mm |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
A: The KT9D incorporates an automated 7+1 rod handling carousel with an automatic thread lubrication module, an intelligent anti-sticking system, dual-hinge carriage articulation, and increased operating weight to 13,000 kg, providing complete single-operator automation and superior drilling stability.
A: No. The KT9D is completely self-contained. The 295 kW Yuchai diesel engine powers the hydraulic drilling and positioning systems while directly driving the onboard 22-bar two-stage screw air compressor (20 m³/min), operating autonomously with zero trailing hoses.
