Our Quzhou engineering desk calculates the exact borehole diameter, rock hardness, and necessary CFM/Bar ratio for your project.
Category Showcase
Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Custom-engineered rotor tooth profiles maximize displacement while lowering specific power consumption. High precision machining ensures stable volumetric output and zero thermal vibration under long shifts.
Microcomputer controller monitors pressure, temperature, and electrical loads. Features smart auto-stop when air demand halts and automatic restart upon pressure drop, eliminating idle electricity waste.
Driven by high-efficiency electric motors (75 kW to 160 kW). Delivers clean, low-noise pneumatic power ideal for environmentally sensitive urban tunneling, indoor workshops, and electric-powered quarries.

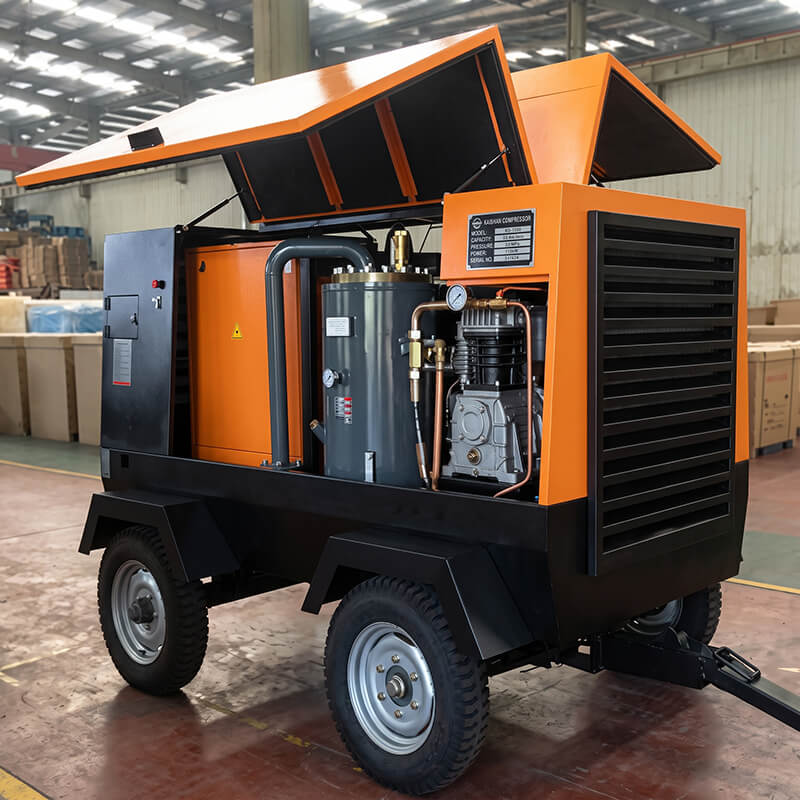

Large access doors provide full 360-degree reach to the air intake filter, oil-air separator core, and electrical cabinet, significantly shortening maintenance turnaround time.
| Model | Working pressure | Free air delivery | Power (KW/HP) | Connector | Dimension mm | Weight KG | Chassis | ||
|---|---|---|---|---|---|---|---|---|---|
| Bar | Psi | m³/min | CFM | ||||||
| KSDY-13.6/8 | 8 | 116 | 13.6 | 476 | 75 / 100 | G3/4*1 G1 1/2*1 | 2700*1700*1700 | 1750 | 4 wheels |
| KSDY-12.5/10 | 10 | 145 | 12.5 | 447 | 2700*1700*1700 | 1750 | 4 wheels | ||
| KSDY-10/14.5 | 14.5 | 210 | 10 | 352 | 2820*1525*1700 | 1600 | 2 wheels | ||
| KSDY-16.5/8 | 8 | 116 | 16.5 | 564 | 90 / 125 | G3/4*1 G2*1 | 2730*1680*1800 | 1940 | 4 wheels |
| KSDY-13/14.5 | 14.5 | 210 | 13 | 458 | 3020*1670*1850 | 1760 | 2 wheels | ||
| KSDY-13/14.5 | 14.5 | 210 | 13 | 458 | 2730*1680*1800 | 1910 | 4 wheels | ||
| KSDY-20/8 | 8 | 116 | 20 | 705 | 110 / 150 | G3/4*1 G2*1 | 3065*1835*2000 | 3115 | 4 wheels |
| KSDY-16.5/12 | 12 | 174 | 16.5 | 571 | 3065*1835*2000 | 3070 | 4 wheels | ||
| KSDY-24/8 | 8 | 116 | 24 | 848 | 132 / 180 | G3/4*1 G2*1 | 3065*1835*2000 | 3150 | 4 wheels |
| KSDY-18/13 | 13 | 190 | 18 | 643 | 3065*1835*2000 | 3070 | 4 wheels | ||
| KSDY-15/17 | 17 | 247 | 15 | 536 | 3065*1835*2000 | 2975 | 4 wheels | ||
| KSDY-20/17 | 17 | 247 | 20 | 705 | 160 / 215 | G3/4*1 G2*1 | 3065*1835*2000 | 3150 | 4 wheels |
| KSDY-22/18-II | 18 | 261 | 22 | 775 | 132 / 180 | G3/4*1 G2*1 | 3065*1835*2000 | 3100 | 4 wheels |
| KSDY-20/18-II | 18 | 261 | 20 | 705 | 3065*1835*2000 | 3100 | 4 wheels | ||
A: The KSDY series is powered by high-efficiency electric motors (75–160 kW), offering zero jobsite exhaust emissions, lower noise levels, and up to 50% energy cost savings where grid power is available. The KSCY series is powered by diesel engines for remote jobsites without electrical infrastructure.
A: When air demand ceases, the compressor unloads; after idling for a preset duration, the electric motor shuts down automatically to prevent power consumption. As soon as a downstream valve opens and line pressure drops, the unit restarts automatically without operator intervention.
