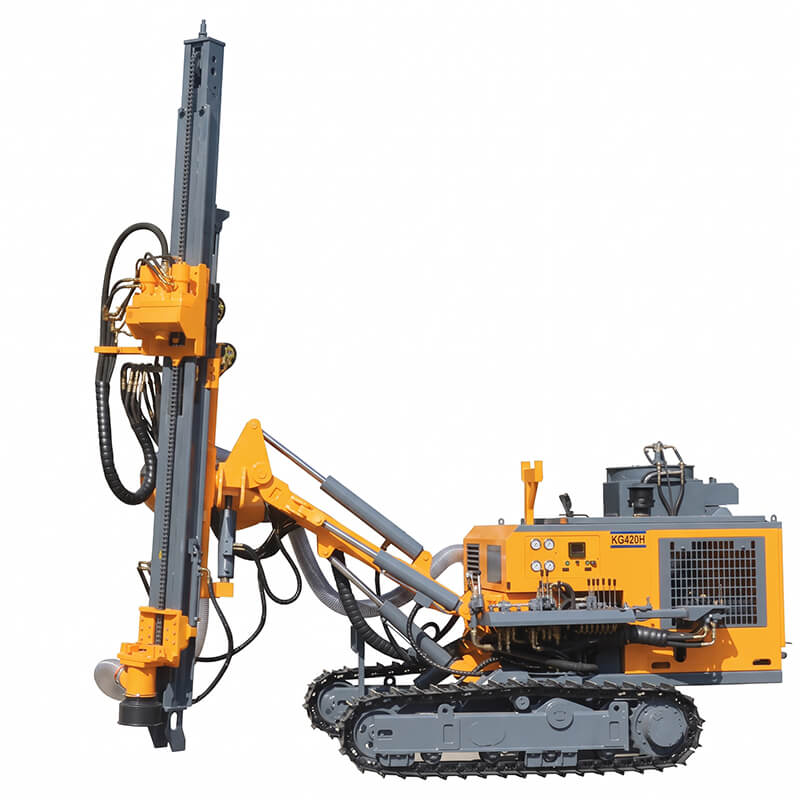

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Powered by dual hydraulic rotation motors delivering up to 5,000 N·m maximum torque at 0–90 rpm. Ensures aggressive penetration through hard, fractured rock formations (f=6–20) with large ⌀90–152 mm hole diameters.
Equipped with a Yuchai four-cylinder diesel engine (58 kW on KG430; upgraded 73 kW on KG430H), satisfying national Tier 3 / Stage III off-road emissions standards with superior torque backup and fuel economy.
Expanded feed cylinder and heavy-duty roller chain generate 40 kN lifting force. High-pressure plunger piston tramming motors, engineering track system, and ±10° track leveling enable smooth traversal across 30° slopes.
The KG430H configuration features a standard QZA-120 dry cyclone dust collector (12 filter elements, upgradable to QZA-140 with 16 elements for holes >130 mm), significantly reducing airborne dust for green quarry compliance.
| Model of drill rig | KG430 | KG430H |
|---|---|---|
| Weight of complete machine | 5250KG | 5700KG |
| Outer dimensions | 6300×2250×2700mm | 6300×2400×2700mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-152mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-90rpm | |
| Rotary torque (Max) | 5000N·m (Max) | |
| Lifting force | 40KN | |
| Method of Feed | Oil cylinder+roller chain | |
| Feed stroke | 3175mm | |
| Travelling speed | 0-2.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 290mm | |
| Tilt angle of beam | Down: 110°, up: 35°, total: 145° | |
| Swing angle of beam | Left: 91°, right: 5°, total: 96° | |
| Pitch angle of drill boom | Down: 55°, up: 15°, total: 70° | |
| Swing angle of drill boom | Left: 32°, right: 32°, total: 64° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 970mm | |
| Supporting power | Yuchai YC4DK80-T302 (58KW/2200r/min) KG430 | Yuchai YC4DK100-T304 (73KW/2200r/min) KG430H |
| DTH hammer | 4" | |
| Drilling rod | Φ76×2m + Φ76×3m | |
| Air consumption | 13-20m³/min | |
| Maximum height of horizontal hole | 2850mm | |
| Minimum height of horizontal hole | 350mm | |
| Dust collector | None | Standard: QZA-120 (12 filter elements) Alternative: QZA-140 (16 filter elements) |
Note: When the hole diameter of the dust collector exceeds Φ130mm, the dust collector must be upgraded and enlarged.

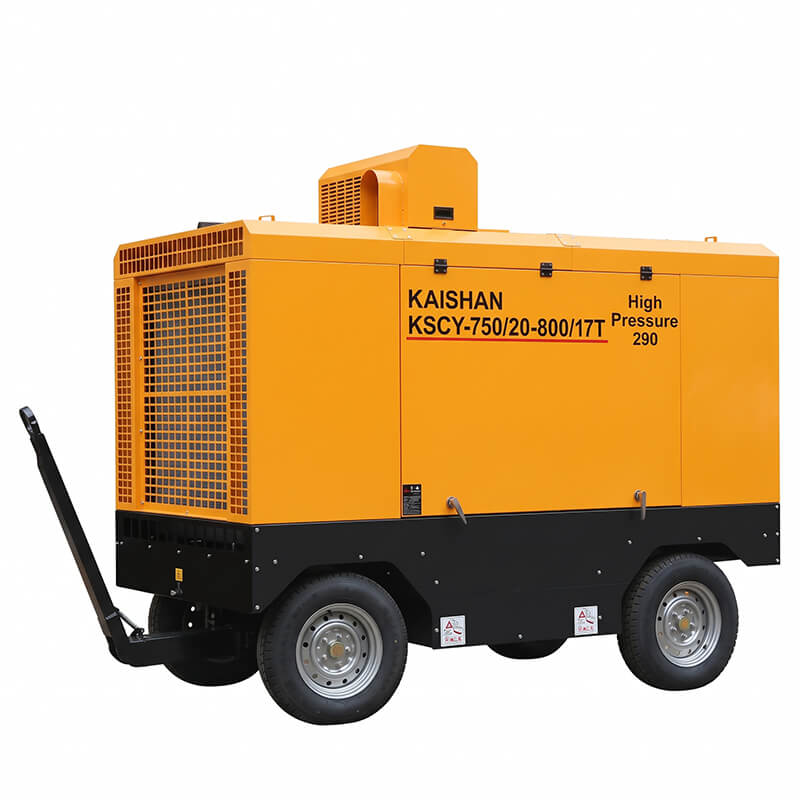

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: The KG430 features a heavy-duty double-motor rotary head delivering up to 5,000 N·m torque, reinforced 40 kN lifting force, and handles larger ⌀90–152 mm hole diameters, providing superior penetration efficiency in hard rock formations with high anti-jamming reliability.
A: The KG430H incorporates the high-efficiency QZA-120/140 industrial cyclone dust collector. The upgraded 73 kW Yuchai YC4DK100 engine ensures sufficient hydraulic power to operate both the heavy drilling systems and the high-flow dust suction fan concurrently without power loss.
