Fitted with an industrial hydraulic top hammer rock drill delivering up to 27 kW impact power, 1612 N·m torque, and high-frequency striking (38–45 Hz). Designed for standard 45/51 mm drill rods, it penetrates complex rock formations with superior hole-flushing capabilities in the 76–127 mm diameter range.

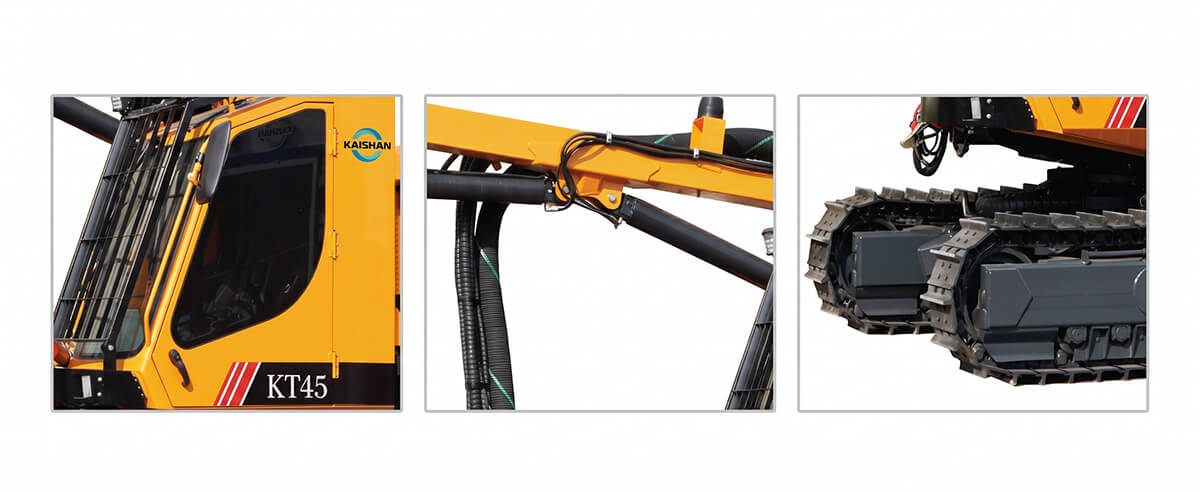

The upper superstructure rotates 0–180° (120 ° + 60 °), providing a 26.5 m² single-position drilling area. Symmetrically placed at the rear of the rotary frame, the power unit acts as a perfect counterweight to the articulated boom and advancing beam at any orientation.
Powered by a 194 kW Cummins QSC8.3-C260-30 engine driving an onboard Kaishan screw air compressor (9.7 m³/min at 10 bar) and load-sensing hydraulics. Includes a certified FOPS & ROPS climate-controlled cab and optional wireless remote control for tramming, track leveling, and frame rotation.
| Dimensions and weight | Hydraulic rock drill | ||
|---|---|---|---|
| Transport dimensions (length*width*height) | 11100*2520*3320mm | Model | HC150 / HC160 |
| Weight | 17500kg | Impact power | 21kw/27kw |
| Articulated drill boom and chassis | Impact pressure | 130-140bar/160-200bar | |
| Ground clearance | 420mm | Impact frequency | 38-41Hz/38-45Hz |
| Rack rotation | 120°+60° | Impact frequency (Torque) | 994Nm/1612Nm |
| Drilling area | 26.5m² | Maximum rotary pressure | 140bar/225bar |
| Frequency modulation angle of track | 10°up, 10°down | Maximum rotary speed | 129rpm/130rpm |
| Tramming speed | 0-3.5km/h | Shank lubrication | Air/oil mist |
| Climbing capacity | 30° | Fuel consumption of lubrication | 15 drops/min |
| Traction | 120kN | Drilling diameter | 76- 127 mm / 64- 115 mm |
| Power unit | Drill boom, advancing beam and rod changer | ||
| Engine | cumminsQSC8.3-C260-30 | Lifting of drill boom | 83° |
| Output power | 194 kW/ 2200 rpm | Lifting of folding boom | 87° |
| Hydraulic pump | 2×variable displacement piston pump+2×gear pump | Swing angle of Beam | -56°/52°; -20°/94° |
| Screw air compressor | Zhejiang Kaishan | Carriage inclination | 125° |
| Capacity of air compressor | 9.7m³/min | Compensation stroke | 1353mm |
| Air pressure | 10bar | Stroke of rock drill | 4150mm |
| Fuel tank | 350L | Maximum propelling force | 19kN |
| Control system | Feed Method | Motor-roller chain | |
| Travelling | Hydraulic pilot + remote control (optional) | Depth of economical drilling | 25m |
| Drill boom | Hydraulic direct control | Number of rods | 6+1 |
| Rock drilling | Pilot control (electric/hydraulic) | Specification of drill rod | T45/T51×3660 |
| Opening control | Stepless | Thread lubrication of drill rod | Standard |
| Impact control | Control of shock pressure | Hydraulic system | |
| Anti-jamming | Hydraulic | Travelling, drilling | Load sensing |
| Voltage | 24V, DC | Filter fineness | 10 μm |
| Dust-collecting system | Cooling capacity | Ambient temperature: +50° | |
| Capacity of dust collector and vacuum degree | 23m³/min; 1000mm water column | Hydraulic oil tank | 200L |
| Filter element/material | 13/fiber | Cab | |
| Filtering area | 10m² | Safety cab | Meets the requirements of FOPS and ROPS |
| Power of hydraulic motor | 12kW | Indoor noise level | Below 85dB(A) |
| Control function | Drilling, travelling, movement of drill boom and rod changer | Seat | Adjustable |
| Entertainment | Radio+MP3 | Air-conditioning | Standard temperature |
| *Factory Direct Industrial Export Specification | |||
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, HC150/HC160 rock drill options, and export-compliant diesel emission packages are available upon request for bulk orders.

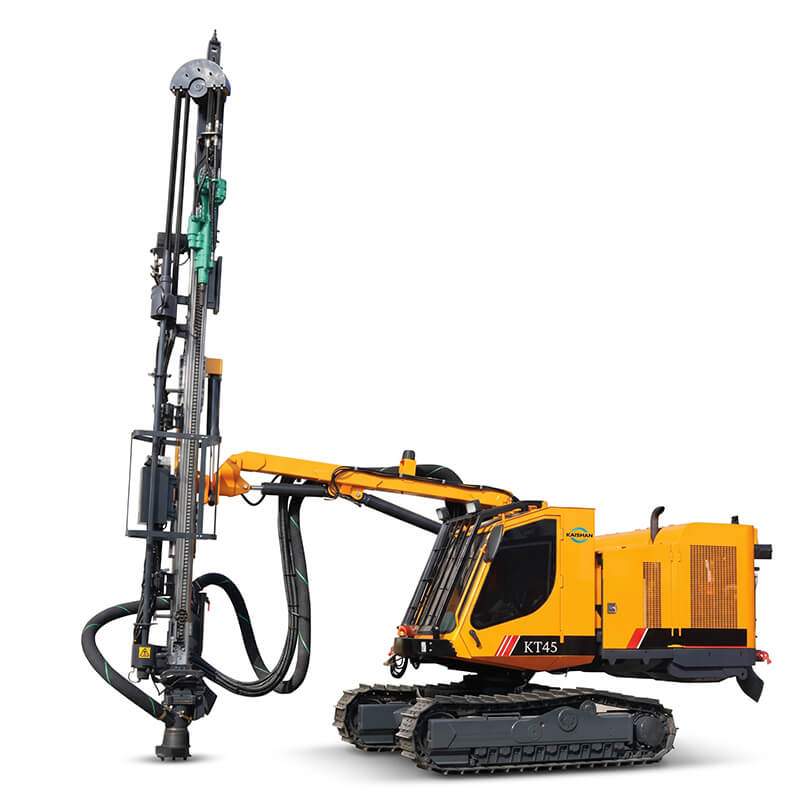

The Kaishan KT45 hydraulic top hammer drilling rig is engineered for versatile, high-precision blast hole and pre-splitting drilling across medium-to-large civil and quarry engineering projects:
Unlike down-the-hole (DTH) rigs where the hammer strikes down at the bottom of the hole, the KT45 utilizes an onboard high-frequency hydraulic drifter (HC150/HC160) at the top of the mast. This delivers higher penetration rates in medium-to-hard rock for 76–127 mm holes, using the onboard 9.7 m³/min air compressor primarily for rapid hole cleaning rather than driving the impactor.
The KT45 is equipped with a 6+1 automatic rod changer that handles standard T45/T51 × 3660 mm drill rods, reaching an economical drilling depth of 25 meters with automatic thread lubrication.
Yes. As an authorized China manufacturer and global B2B supplier, we offer factory-direct pricing, flexible MOQ, OEM/ODM customization, optional wireless remote controls, and genuine spare-parts packages (HC150/HC160 drifter seals, T45/T51 rods, shank adaptors, and filter kits). Contact our export team for an official FOB/CIF quotation.
