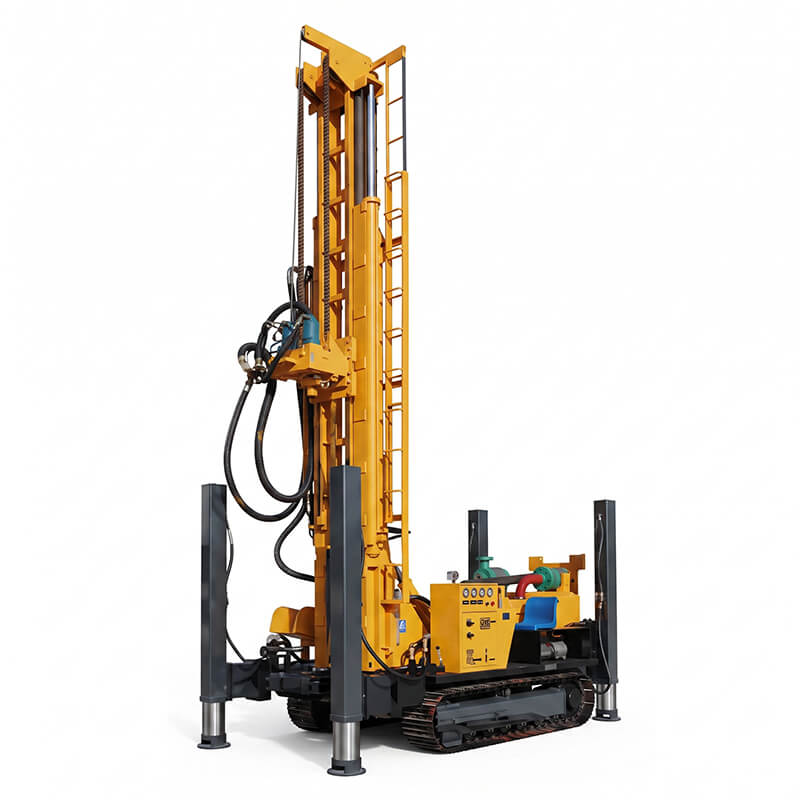

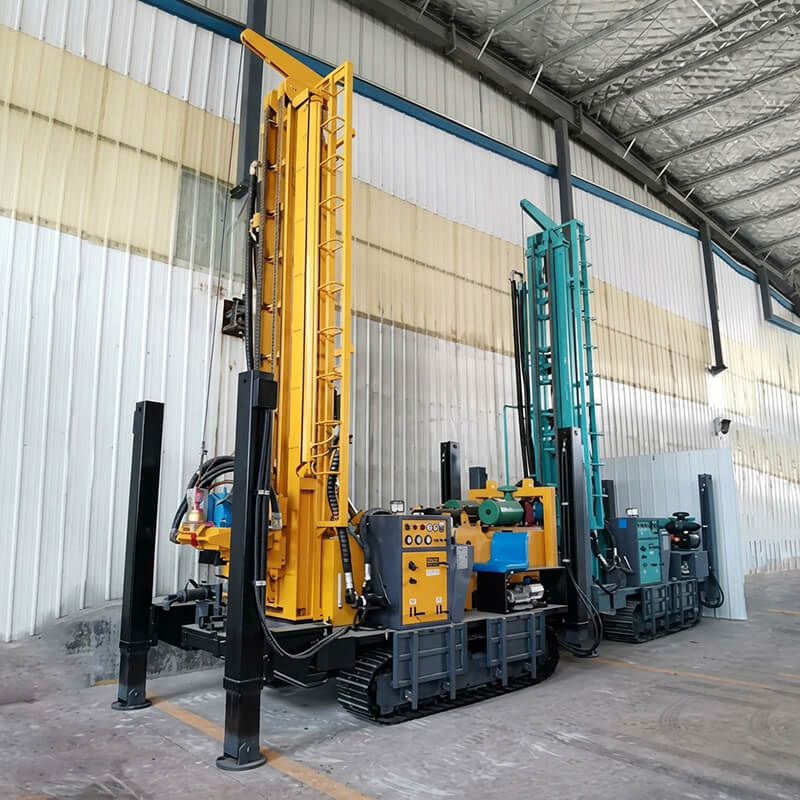

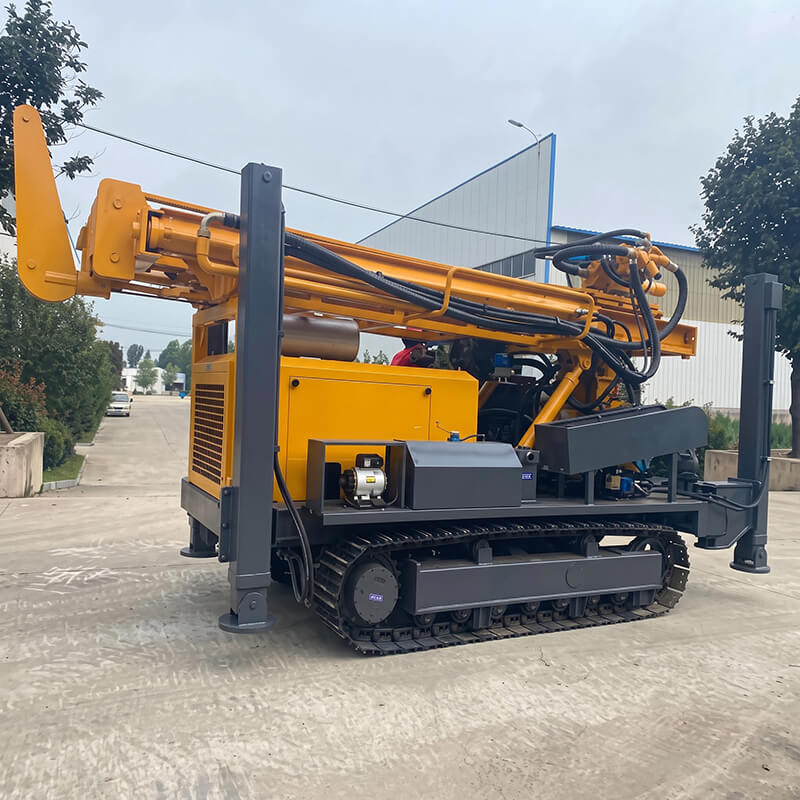

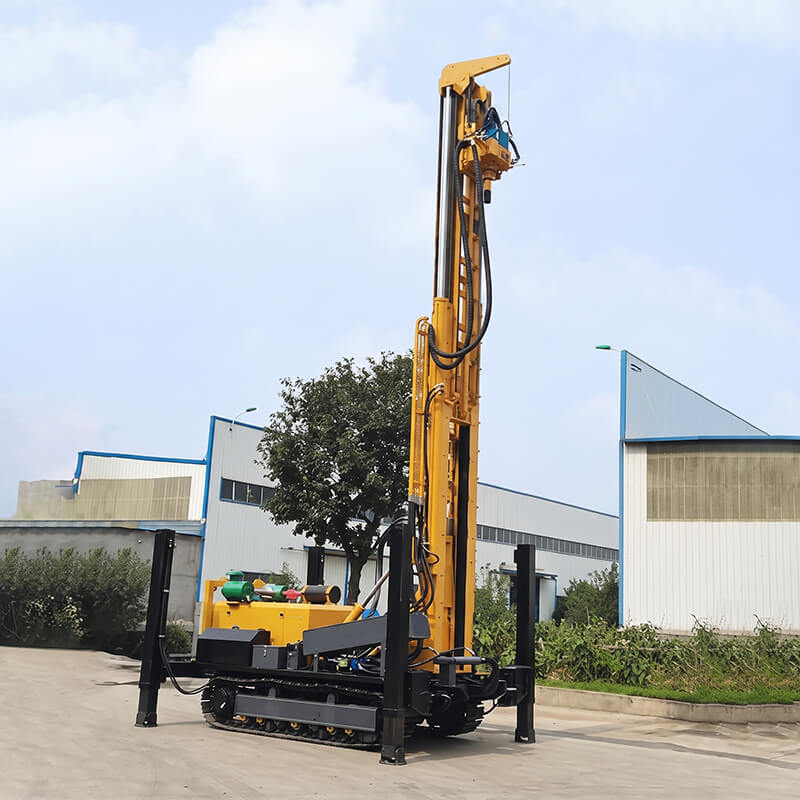

Direct Overview: The Kaishan KW600C is a heavy-duty, crawler-mounted multifunctional deep water well and geothermal drilling rig capable of drilling boreholes from ⌀140 mm to 400 mm down to a maximum depth of 600 meters. Powered by a 132 kW Cummins diesel engine with 30-ton (300 kN) pullback capacity and 13,150 N·m rotary torque, it supports dual-purpose drilling—both high-pressure DTH air hammer drilling (17–35 bar) for hard rock and mud rotary pumping for loose overburden—delivering penetration speeds of 15–35 m/h.
Drilling deep groundwater, agricultural irrigation wells, and geothermal heat pump boreholes through complex geological formations—such as loose soil, riverbed gravel, boulders, and fractured hard granite (f=6–20)—typically demands multiple machines. Traditional rotary table rigs struggle in bedrock, while conventional DTH hammer rigs bog down in wet clay and silt.
The Kaishan KW600C solves this challenge with a hybrid "Gas & Water" dual-mode drilling architecture. Its large-through-hole top drive spindle accommodates high-pressure compressed air, foamed mist, and heavy drilling mud. Operating at penetration rates up to 10 times faster than conventional mechanical rotary drills, the KW600C maximizes contractor ROI on deep borehole projects up to 600 meters.
Equipped with a genuine 132 kW Cummins turbocharged diesel engine driving a dedicated multi-pump hydraulic system. Delivers exceptional power reserve, high fuel efficiency, and global spare parts support across remote drilling sites.
Heavy-duty telescoping mast delivers a massive 30-ton (30T) rig lifting force with an extended 6.6-meter one-time advance stroke, allowing direct handling of standard 6-meter drill pipes and heavy casing strings without frequent tripping.
Hydraulic top-drive power head provides up to 8,850–13,150 N·m of rotary torque and 45–140 r/min stepless speed. Features a large hollow spindle diameter compatible with air flushing, foam injection, and positive displacement mud pumps.
Four heavy-duty hydraulic outriggers feature an extended 1.7-meter vertical travel stroke. Enables rapid chassis leveling on steep uneven ground and permits direct self-loading/unloading onto flatbed transport trucks without requiring a crane.
Integrated visual compression and decompression hydraulic feed mechanism allows the driller to precisely adjust weight-on-bit (WOB) as hole depth increases, preventing drill string deflection and bit premature wear.
Comes standard with a 2-ton auxiliary hydraulic winch for tool and casing hoisting, swing-out centralizer guide, hydraulic rod breakout wrench, and pre-plumbed hydraulic ports for onboard welding and foam injection pumps.
| Technical Parameter | Specification / Engineering Value |
|---|---|
| Maximum Drilling Depth | 600 m (approx. 1,970 ft) |
| Borehole Drilling Diameter | ⌀140 – 400 mm (5.5 – 15.75 in) |
| Drilling Methods | DTH Hammer (Air/Foam) & Mud Rotary Pumping |
| Diesel Engine Model & Power | Cummins Turbocharged Diesel Engine, 132 kW |
| Rig Pullback / Lifting Force | 30 Tons (300 kN) |
| One-Time Advance Stroke | 6.6 m (Accommodates 6-meter drill pipes) |
| Rotary Head Torque | 8,850 – 13,150 N·m |
| Rotary Head Rotation Speed | 45 – 140 r/min (Stepless regulation) |
| Working Air Pressure Range | 17 – 35 bar (1.7 – 3.5 MPa / 246 – 507 psi) |
| Air Consumption Demand | 17 – 42 m³/min (matching screw air compressor) |
| Average Penetration Efficiency | 15 – 35 m/h (formation dependent) |
| Compatible DTH Hammers | 6-inch, 7-inch, 8-inch medium & high pressure hammers |
| Applicable Drill Pipe Length & Diameters | Lengths: 1.5m, 2m, 3m, 6m | Diameters: ⌀102, ⌀108, ⌀114 mm |
| Auxiliary Winch Hoisting Capacity | 2 Tons (20 kN) |
| High Hydraulic Outrigger Stroke | 1.7 m (Self-loading on flatbed trucks) |
| Tramming Speed & Gradeability | 0 – 2.5 km/h | 30° Climbing Capacity |
| Overall Machine Dimensions (L×W×H) | 6,300 × 2,300 × 2,650 mm |
| Total Operating Weight | 13,000 kg (13 Tons) |
To achieve maximum penetration across 140–400 mm boreholes down to 600 meters, the KW600C connects seamlessly with the following high-pressure equipment packages:
Kaishan LGCY-27/25, LGCY-33/25, or KSCY-850/25 (25–35 bar, 27–33 m³/min) for fast rock penetration with 6"/8" DTH hammers.
BW-250 or BW-450 heavy reciprocating mud pumps for wall stabilization and drilling through loose gravel, sand, and clay strata.
A: The KW600C is engineered as a hybrid "gas and water" rig. Its overhead power head has a large-diameter hollow spindle that allows seamless switching between high-pressure compressed air (for DTH hammers in rock) and mud pumping (for rotary drag/tricone bits in soil, sand, and gravel).
A: The 1.7-meter extra-long hydraulic outrigger stroke allows the machine to elevate above standard flatbed trailer height. The truck can back directly underneath the elevated rig, allowing self-loading and unloading without hiring an expensive mobile crane.
A: Yes. The mast features an extended 6.6-meter one-time advance stroke, allowing operators to run 6-meter pipes directly (as well as 1.5m, 2m, or 3m rods), reducing pipe change frequency by 50% on deep 600m holes.
