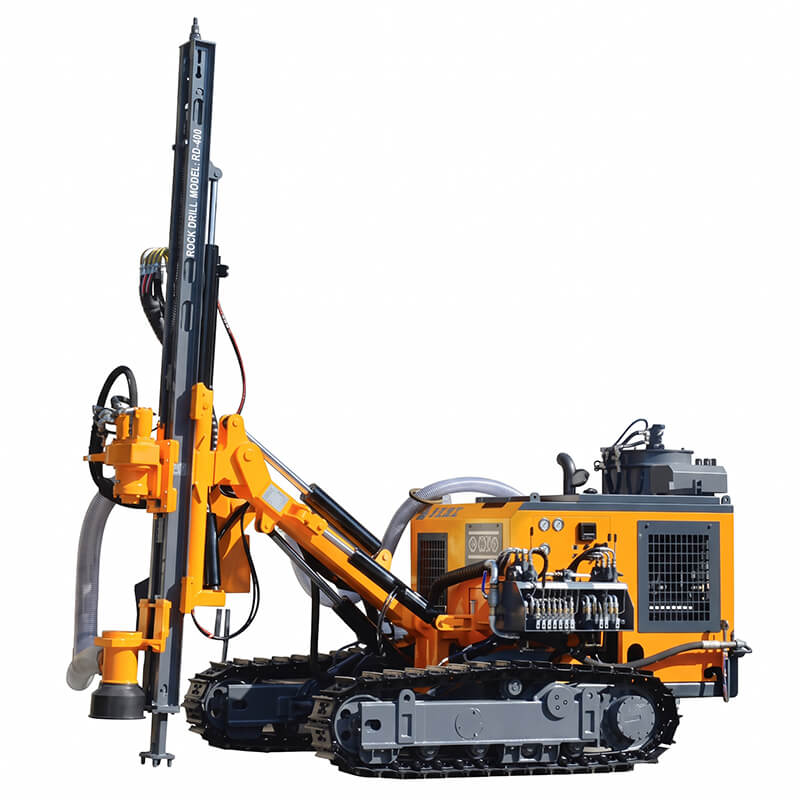

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Equipped with a Yuchai four-cylinder diesel engine (YC4DK80-T302, 58 kW @ 2200 rpm), meeting national Tier 3 / Stage III off-road emission standards with high power reserves and low fuel consumption.
Features a folded crawler chassis, a standard heavy-duty engineering track system, and ±10° track-leveling cylinders driven by plunger piston motors for high ground pressure and 30° climbing capability.
Enlarged feed cylinder and heavy leaf chain generate 25 kN lifting force. The rotary drive provides 2,000 N·m maximum torque at 0–140 rpm, effectively preventing drill tool sticking in fractured rock.
The KG420BH configuration includes an integrated dry cyclone dust collector (standard QZA-90 with 8 filter elements, optional QZA-120 with 12 elements), ensuring dust-free, environmentally compliant drilling.
| Model of drill rig | KG420B | KG420BH |
|---|---|---|
| Weight of complete machine | 4150KG | 4350KG |
| Outer dimensions | 5500×2250×2350mm | 5600×2450×2350mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-130mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-140rpm | |
| Rotary torque (Max) | 2000N·m (Max) | |
| Lifting force | 25KN | |
| Method of Feed | Oil cylinder+leaf chain | |
| Feed stroke | 3780mm | |
| Travelling speed | 0-2.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 280mm | |
| Tilt angle of beam | Down: 135°, up: 50°, total: 185° | |
| Swing angle of beam | Left: 100°, right: 45°, total: 145° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of drill boom | Left: 44°, right: 45°, total: 89° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 900mm | |
| Supporting power | Yuchai YC4DK80-T302 (58 KW / 2200r/min) | |
| DTH hammer | 3", 4" | |
| Drilling rod | Φ64×3m or Φ76×3m | |
| Air consumption | 10-17m³/min | |
| Maximum height of horizontal hole | 2750mm | |
| Minimum height of horizontal hole | 350mm | |
| Dust collector | None | Standard: QZA-90 (8 filter elements) Alternative: QZA-120 (12 filter element) |
Note: When the hole diameter of the dust collector exceeds Φ90 mm, the dust collector must be upgraded and enlarged.

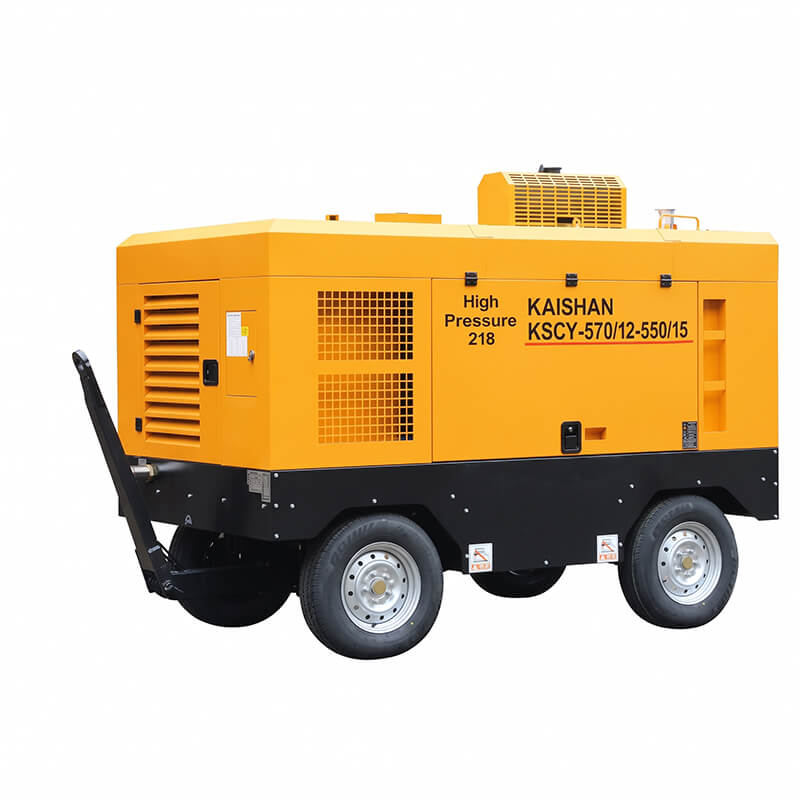

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection depends on hole diameter and air hose length.
A: The KG420BH comes standard with an integrated industrial dry-type cyclone dust collection system (QZA-90 with 8 filter elements, upgradable to QZA-120 with 12 elements for holes >90 mm), whereas the KG420B is the standard open-type rig without a dust collector.
A: The rig matches standard 3-inch and 4-inch DTH hammers (e.g., HD35, HD45, DHD340 shanks) and handles Φ64×3000 mm or Φ76×3000 mm drill pipes for drilling hole diameters of 90 mm to 130 mm up to an economical depth of 25 meters.
