Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

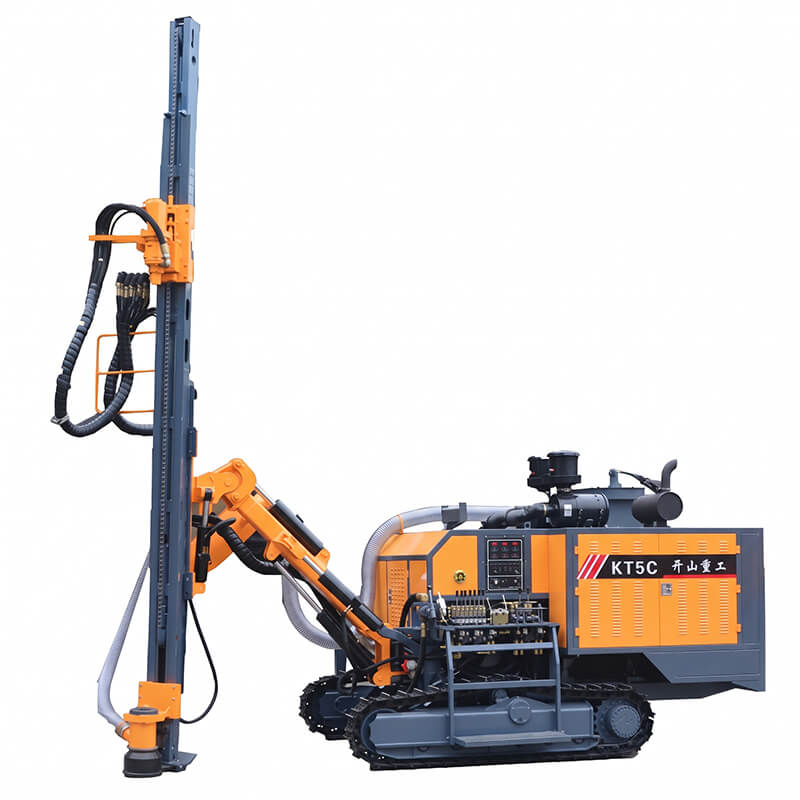

Integrates the down-the-hole drilling system and an onboard rotary screw compressor (12 m³/min @ 15 bar) into one unified crawler chassis. Powered by a single 162 kW Yuchai 6-cylinder diesel engine, eliminating the need to purchase, tow, and fuel a separate compressor while cutting diesel consumption by up to 30%.

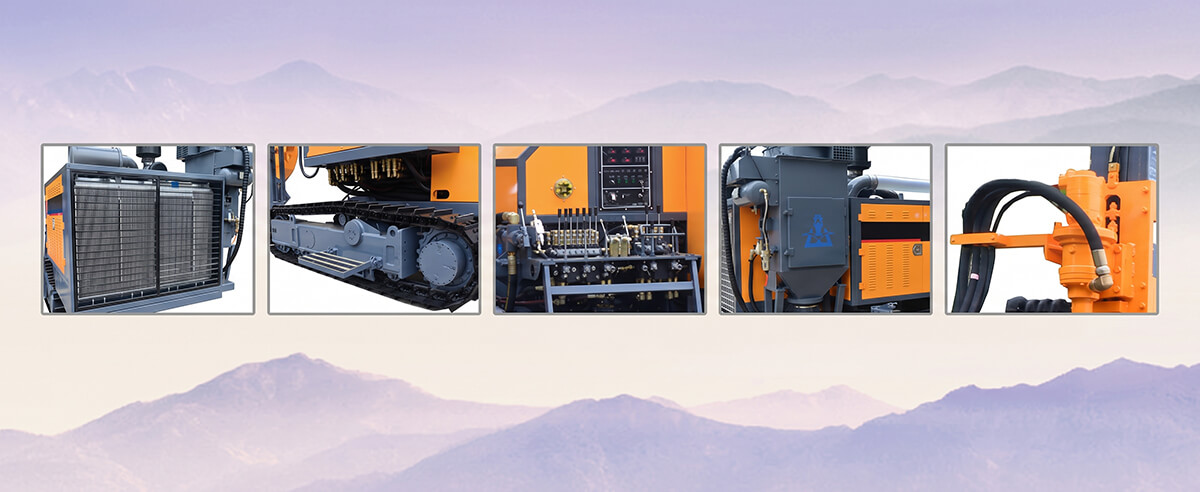

Equipped with an onboard hydraulically driven cyclonic laminar flow dust extraction system. Captures rock dust directly at the hole collar to maintain clean operator visibility, protect engine filters, and comply with strict green quarry standards.
Built on a rugged engineering track frame with 430 mm ground clearance and dual-speed tramming motors (up to 4.0 km/h). Coupled with hydraulic frame levelling (Up to 10° / Down 9°), it manoeuvres with ease over rocky quarry obstacles and climbs 25° grades.
The versatile articulated boom and carriage feature 125° beam tilt, 94° carriage swing, and flexible boom elevation, providing extensive drilling coverage for vertical blast holes, inclined pre-splitting, and low-angle horizontal toe holes.
| Parameter | KT5C Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 90-115 mm |
| Depth of economical drilling | 25 m |
| Travelling speed | 0-4 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Power of complete machine | 162 kW/ 2200r/min |
| Diesel engine | Yuchai YC6J220-T303 |
| Screw compressor | 12 m³/min / 15 bar |
| Outer dimensions (L×W×H) | 7800×2300×2500 mm |
| Weight | 8000 kg |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque (Max) | 1680 N·m (Max) |
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 54°, down 26° |
| Tilt angle of beam | 125° |
| Swing angle of carriage | Right 47°, left 47° |
| Pitch angle of drill boom | Up 54°, down 26° |
| Swing angle of drill boom | Right 53°, left 15° |
| Leveling angle of frame | Up 10°, down 9° |
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
| DTH hammer | 3" |
| Drilling rod | Φ64×3000 mm |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
A: No. The KT5C is an integrated all-in-one rig. It carries an onboard high-pressure rotary screw air compressor (12 m³/min @ 15 bar) powered by the rig's own 162 kW Yuchai engine, operating as a fully autonomous single machine.
A: A split rig-and-compressor system requires two diesel engines, dual maintenance routines, and a dedicated towing vehicle. The KT5C uses one centralized engine, reducing diesel consumption by 25%–35%, lowering labor requirements to a single operator, and eliminating air line pressure drops over long distances.
