Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Utilizes dual-wall hollow drill pipes where high-pressure air enters through the outer annulus and flushes high-purity ore samples directly up the inner tube. This completely prevents cross-contamination, ensuring precise stratum and grade identification to optimize blasting layouts and ore recovery per ton.
Powered by a heavy-duty Cummins QSZ13-C500-30 diesel engine (372 kW) driving an onboard Kaishan SKY11HG220-A two-stage screw compressor (31 m³/min at 25 bar) and hydraulic pumps (1 plunger + 1 triplex gear pump), delivering 6100 N·m torque and 65 kN hoisting force for RC4 to RC6 hammers.
Features an 8+1 automatic rod changer handling Φ102/Φ114×6000 mm pipes for 54 m deep exploration, automatic oil-spray lubrication, floating joint thread protection, electro-hydraulic anti-jamming, and a certified FOPS & ROPS safety cab with -30°C to +45°C ambient climate capability.
| Parameter / Item | KD65RC Specification |
|---|---|
| Transport dimensions (L×W×H) | (12550 ± 100)* (3160 ± 50)* (3850±50)mm |
| Weight | 30700Kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 120-190mm |
| Depth of economical drilling | 54m |
| Number of rods | 8+1 |
| Specifications of drilling rod | Φ 102/Φ114×6000mm |
| Ground clearance | 410mm |
| Leveling angle of track | ± 10° |
| Travelling speed | 0-3Km/h |
| Gradeability | 25° |
| Traction | 140KN |
| Lifting angle of drill boom | Up 49°, down 13° |
| Swing angle of drill boom | left 17°, Right 30° |
| Swing angle of carriage | left 37°, Right 37° |
| Tilt angle of beam | 133° |
| Compensation stroke | 1800mm |
| Feed stroke | 6700mm |
| Max. hoisting force | 65KN |
| Method of propulsion | Motor+ roller chains |
| Rotary torque (Max) | 6100N.m |
| Rotation speed | 0-100rpm fast rotation: 0~150rpm |
| Engine | Cummins QSZ13-C500-30 |
| Power | 372kW |
| Revolving speed of gyrator | 1900r/min |
| Screw air compressor | Kaishan SKY11HG220-A |
| Capacity of air compressor | 31m³/min |
| Air pressure | 25bar |
| DTH hammer | RC4、RC4.5、RC5、RC5.5、RC6 |
| Hydraulic pump | 1 plunger pump + 1 triplex gear pump |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot+ electric control |
| Filter fineness | 10 μm |
| Cooling capacity | -30°C~45°C environmental temperature |
| Voltage | 24V DC |
| Method of dust removal | Dry type |
| Method of extension rod | Automatic threading/unthreading |
| Anti-jamming | Electro-hydraulic anti-jamming |
| Method of drilling rod lubrication | Automatic oil-spraying lubrication |
| Protection of thread of drilling rod | With floating joint protection |
| Safe cab | Meet the requirements of FOPS&ROPS |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, sample splitter cyclones, and export-compliant diesel emission packages are available upon bulk order request.

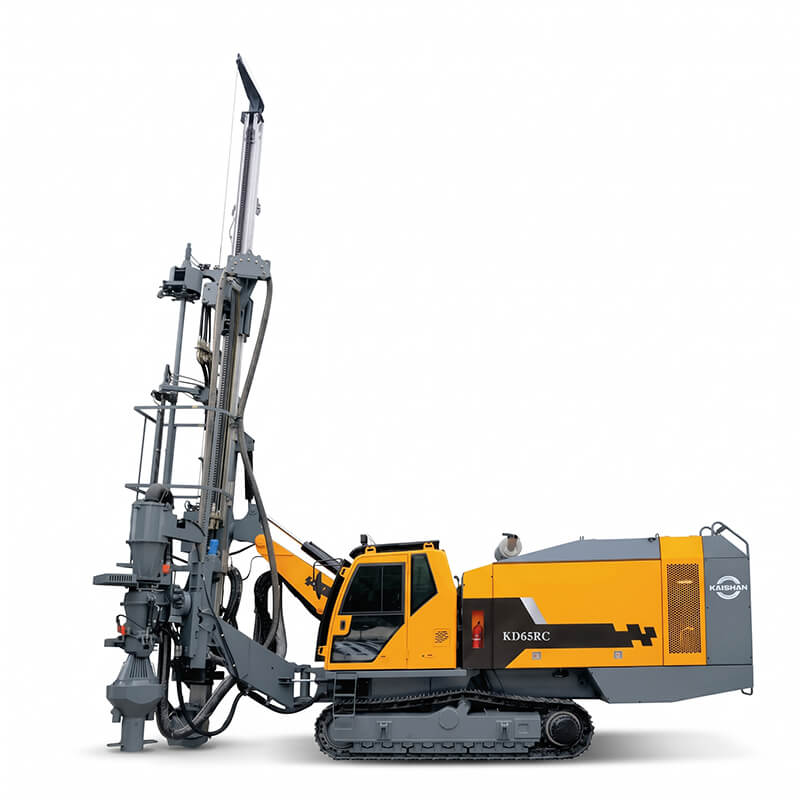

The Kaishan KD65RC reverse circulation exploration drilling rig is engineered specifically for mining geology, ore body delineation, and rapid grade control operations:
In standard DTH drilling, cuttings travel up the outside of the pipe against open borehole walls, causing sample loss and contamination. The KD65RC uses dual-wall pipes where compressed air travels down the outer tube, and high-velocity air carries cuttings directly up the isolated center tube into an onboard cyclonic sample collector, guaranteeing 100% representative geochemical samples.
The KD65RC is equipped to operate RC4, RC4.5, RC5, RC5.5, and RC6 reverse circulation DTH hammers with an 8+1 automatic carousel storing Φ102 or Φ114 × 6000 mm dual-wall drill pipes (6700 mm feed stroke), delivering up to 54 m depth.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, OEM/ODM customization, sample cyclone splitters, and complete RC drilling consumable packages (RC hammers, dual-wall pipes, inner tubes, and seal kits). Contact our export team for an official FOB/CIF quotation.
