Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

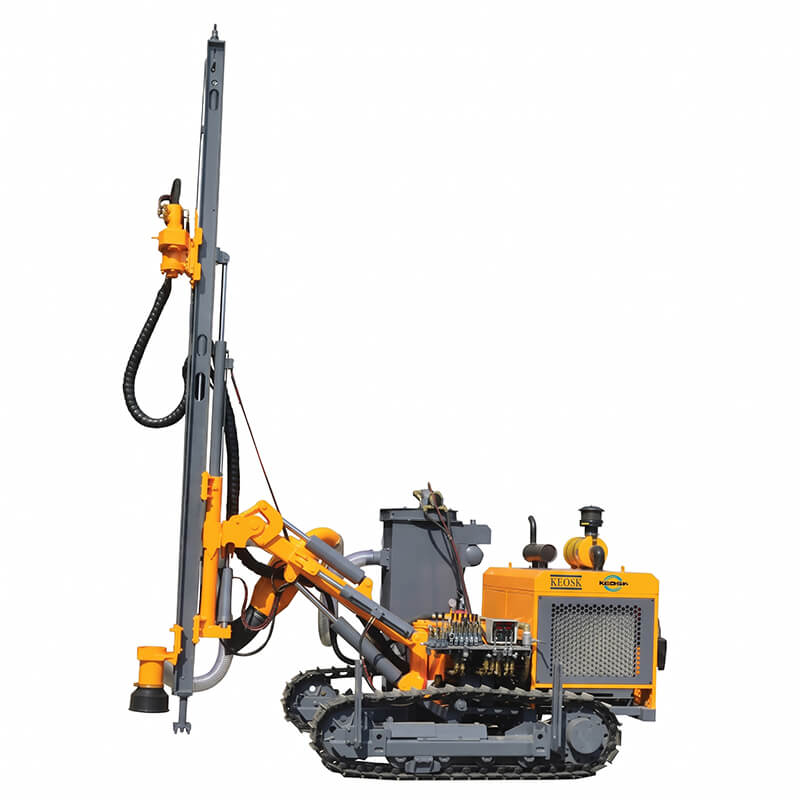

Equipped with a certified four-cylinder Yuchai non-road diesel engine (59 kW / 80 HP @ 2,400 rpm) meeting strict environmental emission regulations. Upgraded with high-pressure plunger tramming motors to boost working pressure, improve track traction, and achieve strong ≤30° climbing gradeability on steep quarry benches.
Features enlarged pitch and lift hydraulic cylinders with 185° total beam tilt (down 135°, up 50°) and 145° swing. Upgraded hydraulic flow accelerates rotation speed (0–120 rpm) with 2,000 N·m torque, allowing effortless vertical, inclined, and low horizontal toe-hole blast drilling (min height: 350 mm; max: 2,750 mm).

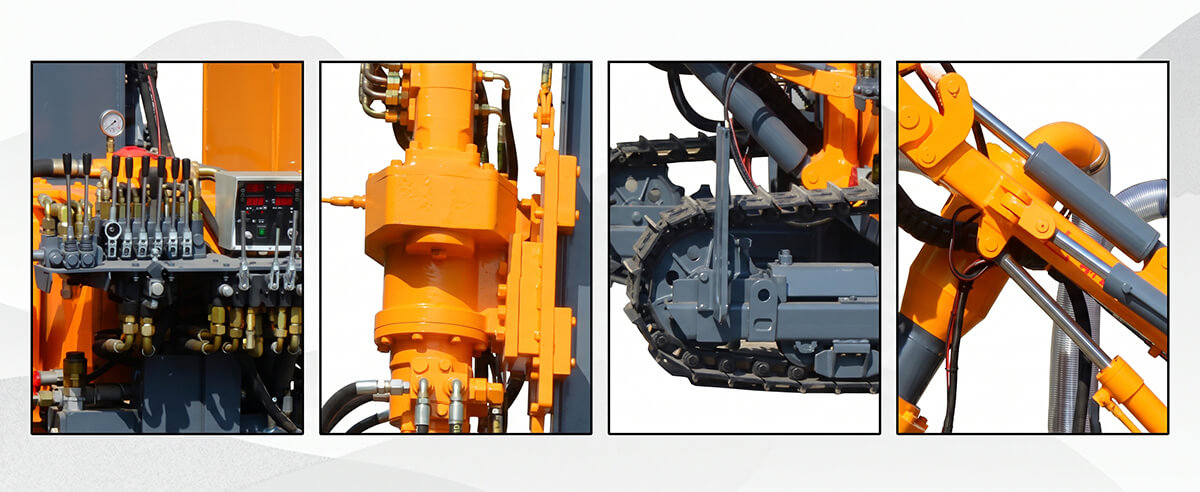

Built with thickened structural steel housing profiles, integrated hoisting rings for safe crane loading, and an inclined guide rail for easier visual monitoring. Outfitted with an onboard heavy-duty dust collector (standard QZA-90 8-filter or optional QZA-120 12-filter) to ensure clean, eco-compliant jobsite operations.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD35S Specification |
|---|---|
| Model of drill rig | KD35S |
| Weight of complete machine | 4400 kg |
| Outer dimensions | 5600×2600×2300 mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ90-115 mm |
| Depth of economical drilling | 25 m |
| Rotary speed | 0-120 rpm |
| Rotary torque (Max) | 2000 N·m (Max) |
| Lifting force | 18 kN |
| Method of Feed | Oil cylinder + leaf chain |
| Feed stroke | 3780 mm |
| Travelling speed | 0-2.5 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 350 mm |
| Tilt angle of beam | Down: 135°, up: 50°, total: 185° |
| Swing angle of beam | Left: 100°, right: 45°, total: 145° |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
| Swing angle of drill boom | Left: 44°, right: 45°, total: 89° |
| Compensation length of beam | 900 mm |
| Supporting power | Yuchai YCD4R23T8-80 (59 kW / 2400 rpm) |
| DTH hammer | 3" |
| Drilling rod | Φ64 × 3 m |
| Air consumption | 10-17 m³/min |
| Maximum height of horizontal hole | 2750 mm |
| Minimum height of horizontal hole | 350 mm |
| Dust collector | Standard: QZA-90 (8 filter elements) / Optional: QZA-120 (12 filter elements) |
*Note: When the hole diameter of the dust collector exceeds 90mm, the dust collector must be upgraded and enlarged.

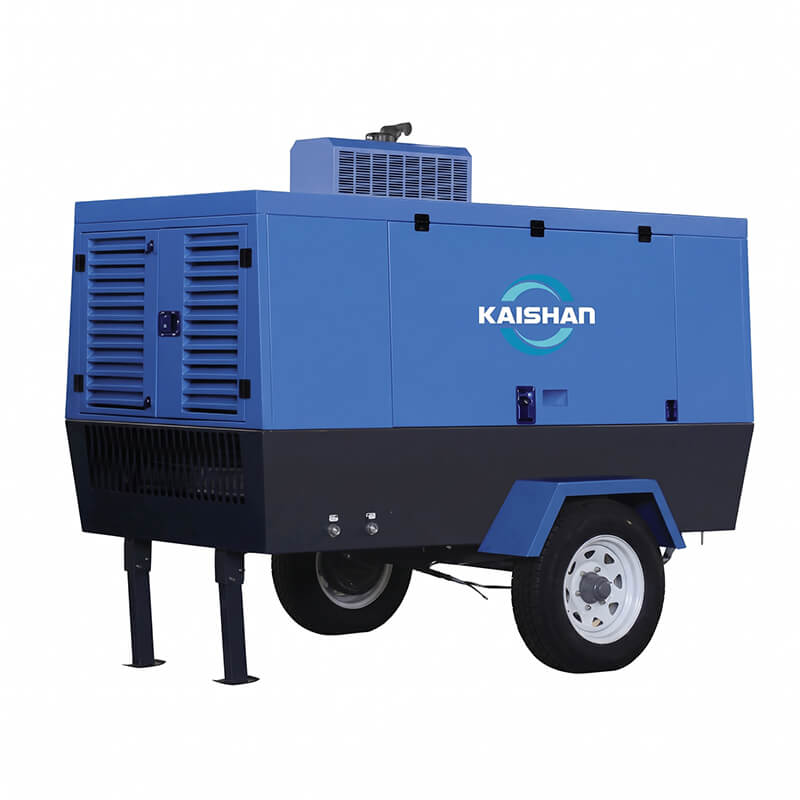

Diesel Engine Portable Screw Air Compressor Options:
*Note: Air compressor selection is subject to target borehole diameter and jobsite air supply hose length.
A: The KD35S is a split crawler drill rig requiring an external air supply of 10–17 m³/min. We recommend pairing it with Kaishan portable diesel screw air compressors such as the KP425-10 YC (10 bar) or KM570-12/15 YC (12/15 bar) based on your hole diameter and hose distance.
A: Yes. The KD35S features expanded pitch and lifting cylinders, allowing a minimum horizontal hole height of just 350 mm and a maximum horizontal height of 2,750 mm, providing excellent coverage for quarry floor toe blasting.
A: When drilling holes exceeding Φ90 mm in diameter or working in high-dust formations, the optional QZA-120 (12 filter elements) dust collector should be selected to ensure optimal suction capacity and compliance with environmental regulations.
