Features two symmetrically arranged rectangular-coordinate universal booms with 1800 mm boom extension, 1600 mm feed extension, 360° rollover, and automatic parallelism. Completely eliminates blind spots, covering expansive cross-sections (up to 8698 mm width × 7870 mm height) for fast blast hole drilling, crosscut opening, and roof bolting.
Fitted with two independent high-frequency hydraulic rock drills (2×HC95LMH / RD22U) delivering 21/22 kW per drifter at 53/62 Hz for Φ42–102 mm blast holes. Two separate 75 kW electric motor circuits drive axial variable-displacement piston pumps and a 400 L oil tank, maximizing penetration speed and steel service life.
Built on a 22,000 kg 4WD articulated carrier powered by a Cummins B3.9CS4-130C diesel engine (96 kW) with hydraulic torque converter + gearbox, enclosed wet bridge brakes, 120 L fuel capacity, and a telescopic FOPS & ROPS safety roof (2400/3100 mm height), with an optional fully enclosed air-conditioned cab available.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 13000 mm | Air compressor | DLGF 1.5/8-11(B) |
| Width | 2200 mm | Capacity of air compressor | 1.55m³/min |
| Height | 2400/3100 mm | Pressure | 8bar |
| Weight | Appr. 22000 kg | Device for shank lubrication | Electronic pulse lubrication pump |
| Tramming speed on flat ground | 10km/h | Oil Consumption of lubrication | 2x180-250g/h |
| Maximum climbing capacity | 25%(14°) | Air consumption of lubrication | 2x0.3m³/min |
| Safety protection | Power of water pump | 7.5kW | |
| Noise level | < 100dB(A) | Capacity of water pump | 10m³/h |
| Lifting safety roof | FOPS & ROPS certified (Enclosed cab optional) | Chassis | |
| Diesel engine | Cummins B3.9CS4-130C 96KW/2500rpm | ||
| Drive system | Hydraulic torque converter +gearbox | Travelling braking | Wet bridge brake |
| Parking braking | Mechanical brake | Fuel tank | 120L |
| Drilling system | |||
| Rock drill | 2XHC95LMH / RD22U | ||
| Rod size | R38 / T38 | ||
| Impact power | 21KW / 22KW | ||
| Impact Frequency | 62Hz / 53Hz | ||
| Hole diameter | Φ42-102mm | ||
| Beam rotation | 360° | ||
| Feed extension | 1600mm | ||
| Model of drill boom | K 40 | ||
| Form of drill boom | Self-leveling | ||
| Boom extension | 1800mm | ||
| Electric hydraulic power unit | |||
| Motor | 2x75kW | ||
| Impact /Feed/ Positioning | Axial variable displacement piston pump | ||
| Rotation | Gear pump | ||
| Filter fineness | 10 μ | ||
| Hydraulic oil tank | 400L | ||
| Hydraulic cooler | Water cooler | ||
| Working voltage | 380V | ||
| Frequency | 50Hz | ||
| Starting method | Star-triangle | ||
| Cable specifications | 3×120+3G25 | ||
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, optional fully enclosed air-conditioned cab, and site-specific underground electrical voltages are available upon bulk order request.

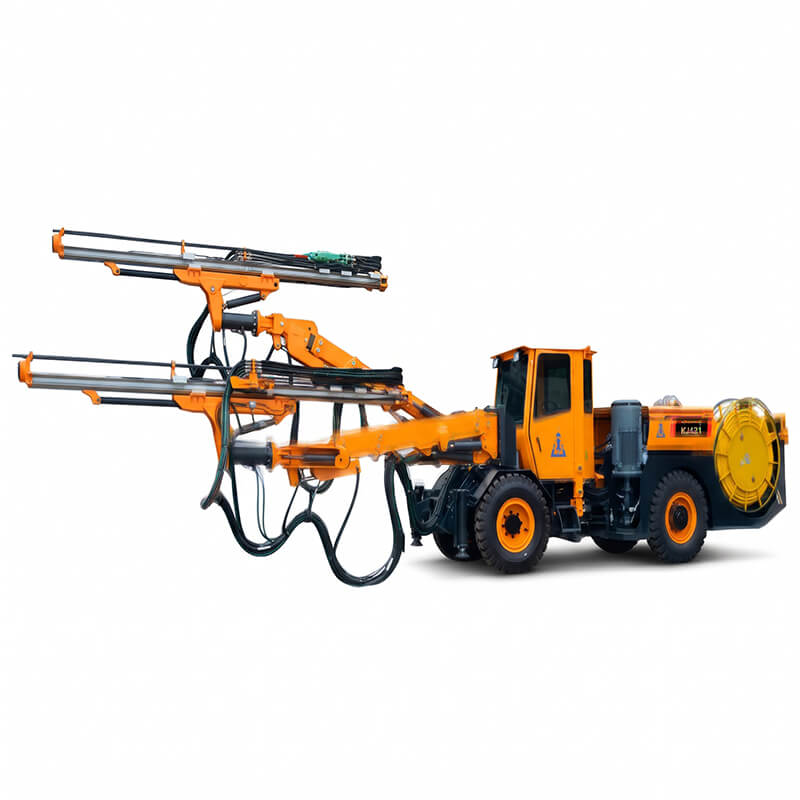

The Kaishan KJ421 twin-boom hydraulic underground mining jumbo is purpose-built for medium-to-large tunneling projects and high-volume mining headings across 16–68 m² cross-sections:
The KJ421 is engineered for tunnel cross-sections ranging from 16 m² up to 68 m². Its twin K 40 booms deliver a total working coverage reach of 8698 mm in width and 7870 mm in height, providing double the excavation speed of single-boom jumbos.
The KJ421 features two completely independent 75 kW electric-hydraulic power units (150 kW total), each with dedicated axial variable-displacement piston pumps. This ensures that each boom and HC95LMH/RD22U drifter operates at full hydraulic capacity without pressure drop during concurrent drilling.
As an authorized China manufacturer and global B2B supplier, Kaishan provides factory-direct pricing, flexible MOQ, optional enclosed air-conditioned cabs, site-specific voltages, and genuine spare parts packages (HC95LMH/RD22U seal kits, R38/T38 rods, and Cummins filters). Contact our export team for an official FOB/CIF quotation.
