Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

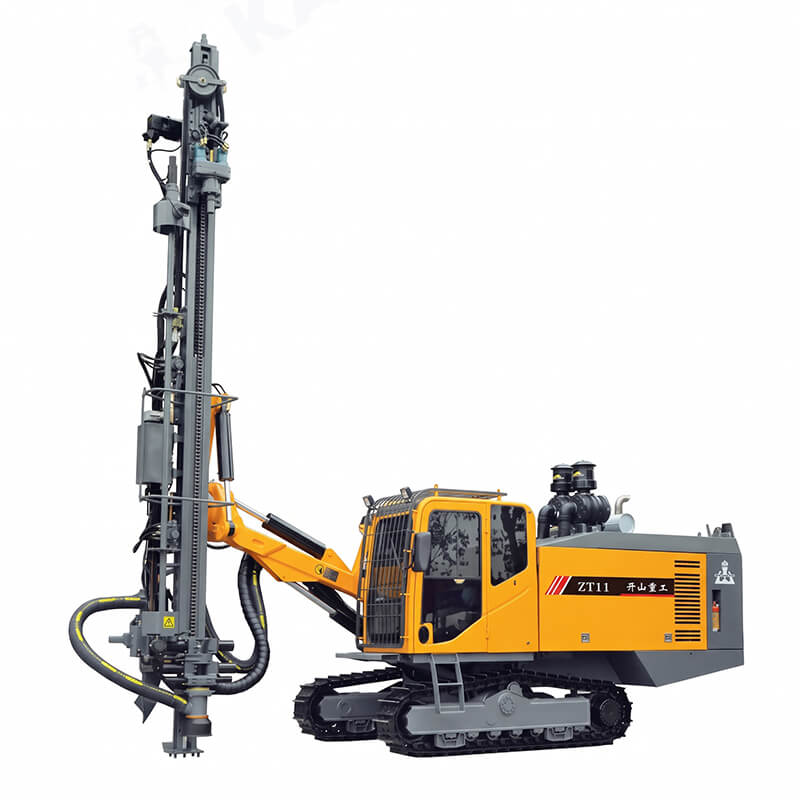

Combines the heavy DTH rock drilling system and an onboard two-stage screw compressor (18 m³/min @ 22 bar / 319 psi) onto a single crawler chassis. Powered by a single 235 kW Yuchai YCA08320 diesel engine driving both compressor and hydraulics via flywheel and PTO outputs, it eliminates trailing air hoses and cuts jobsite fuel burn by up to 25%.

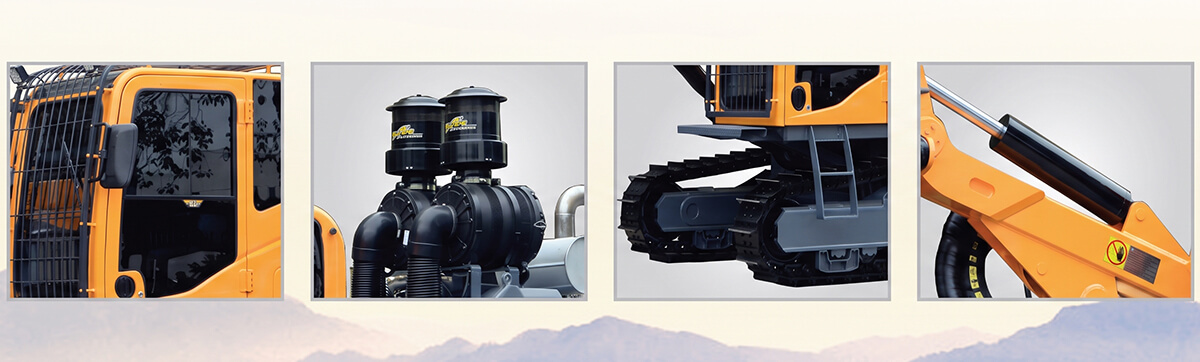

Features a heavy-duty articulated drill boom with a 148° beam tilt angle, 1,500 mm compensation stroke, and 37 kN maximum propelling force. The automated 7+1 rod carousel, floating slide module, and electro-hydraulic anti-jamming system allow safe, single-operator deep drilling down to 32 meters.
Equipped with an ergonomic, climate-controlled safety cabin meeting international ROPS & FOPS certifications with low interior noise below 85 dB(A). The 15,000 kg heavy-duty chassis features ±10° track oscillation and 355 mm ground clearance, ensuring stable tramming across 25° quarry slopes.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | ZT11 Specification |
|---|---|
| Transport dimensions (L×W×H) | 9900×2300×3200/3500 mm |
| Weight | 15000 kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-130 mm |
| Ground clearance | 355 mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Traction | 120 kN |
| Rotary torque (Max) | 2500 N·m (Max) |
| Rotation speed | 0-173 rpm |
| Swing angle of drill boom | Left 18°, right 46° |
| Swing angle of carriage | Left 9°, right 96° |
| Tilt angle of beam | 148° |
| Compensation stroke | 1500 mm |
| Rotation Head stroke | 4510 mm |
| Maximum propelling force | 37 kN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 32 m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64 / Φ76 × 4000 mm |
| DTH hammer | 3", 4" |
| Engine | Yuchai YCA08320-T300 |
| Rated power | 235 kW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | Two stage compression 18 m³/min / 22 bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meets the requirements of ROPS & FOPS |
| Indoor noise | Below 85 dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio |
A: The ZT11 upgrades the onboard two-stage screw compressor discharge pressure to 22 bar (versus 17 bar on ZT10), expands diesel engine power to 235 kW (versus 228 kW), increases maximum propelling force to 37 kN (versus 32 kN), extends rotation speed up to 173 rpm, and enlarges the carriage tilt angle to 148° for superior penetration efficiency in ultra-hard rock formations.
A: No. The ZT11 is completely self-contained. The 235 kW Yuchai diesel engine powers the hydraulic drilling and tramming systems while directly driving the onboard 22-bar two-stage screw air compressor, operating autonomously with zero trailing hoses.
