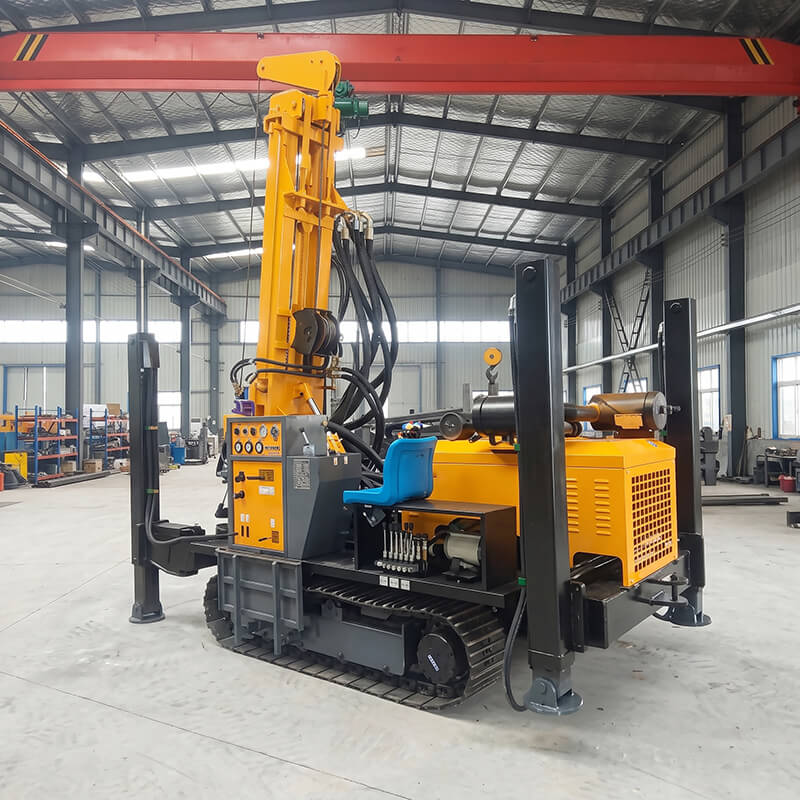

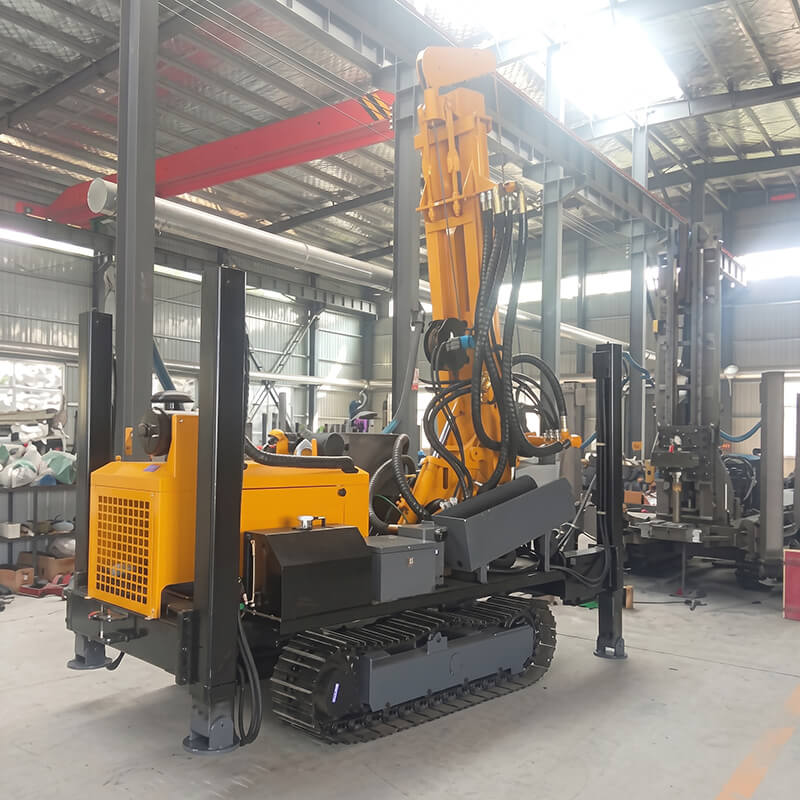

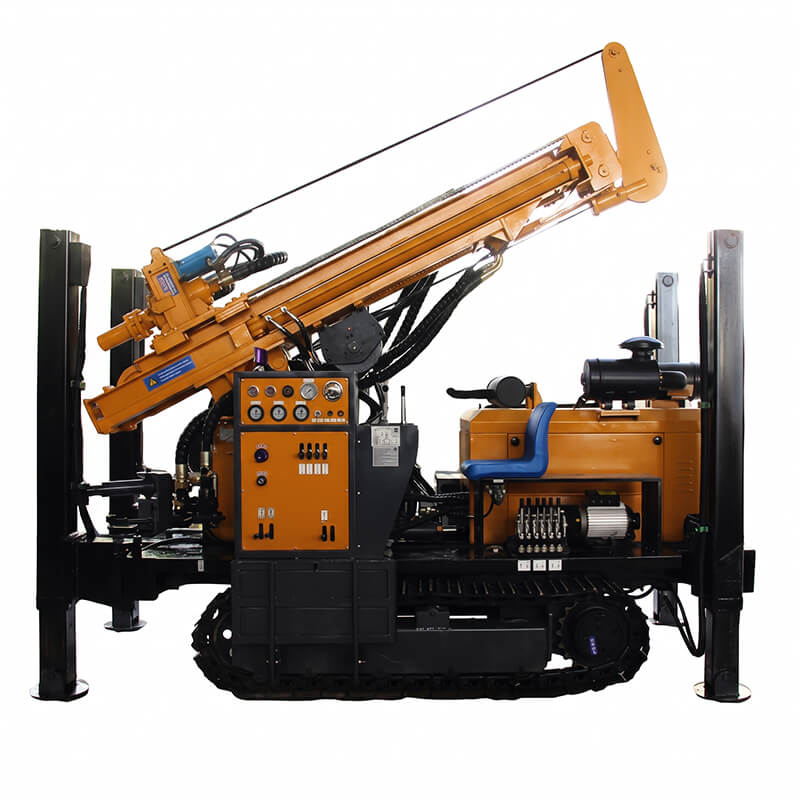

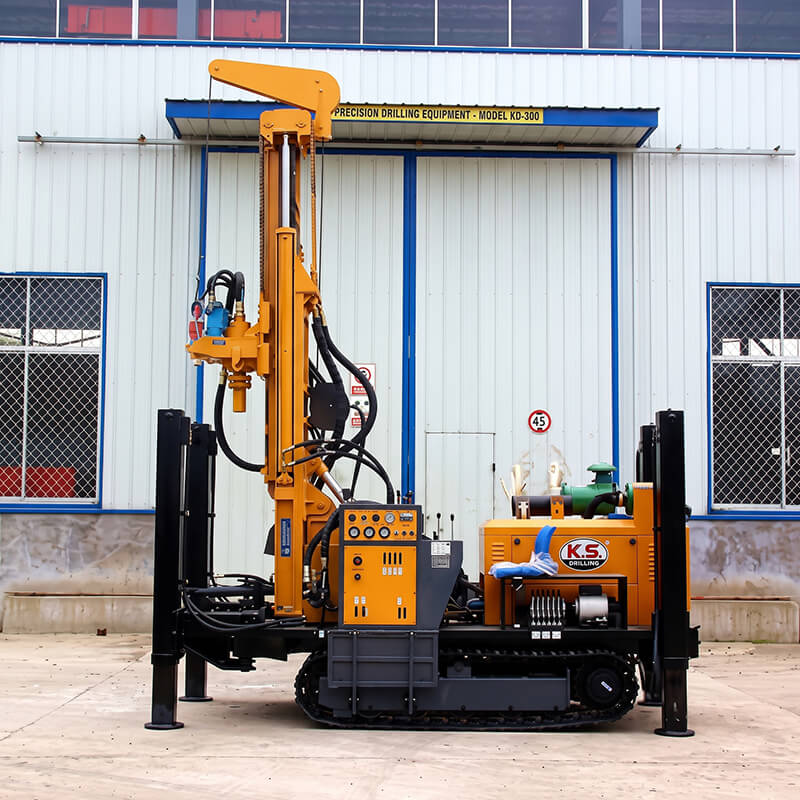

Direct Overview: The Kaishan KW260 is an ultra-compact, highly mobile crawler-mounted water well and geothermal drilling rig designed to drill borehole diameters from ⌀140 mm to 305 mm down to a rated depth of 260 meters. Weighing just 5.6 tons with a narrow 1.8-meter body width, it is powered by a 70–75 kW turbocharged diesel engine delivering 5,600 N·m rotary torque and a 15–20 ton (150–200 kN) pullback force. Its hybrid "Gas & Water" dual-mode system supports both high-pressure DTH air hammer drilling (17–30 bar) for rock and mud rotary pumping for soft soil at penetration speeds of 15–35 m/h.

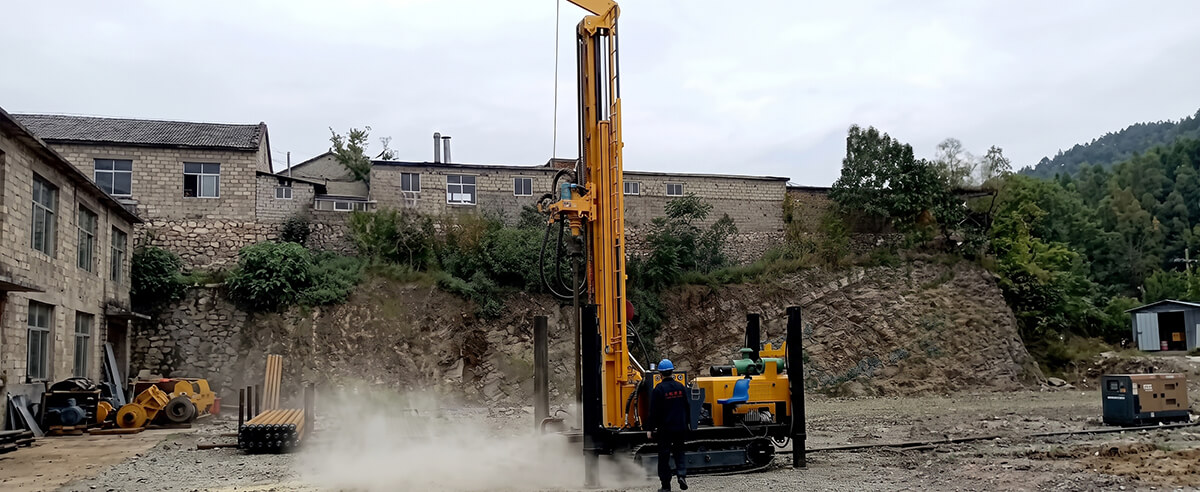

Residential groundwater contractors and rural well drillers often encounter extreme jobsite access restrictions—such as narrow village gates, residential backyards, orchards, and fragile paved roads. Heavy, oversized drilling rigs risk damaging asphalt surfaces or cannot enter these cramped quarters altogether.
The Kaishan KW260 is engineered specifically to conquer tight-access challenges without sacrificing penetration power. At only 4.0 meters in transport length, 1.8 meters in width, and 5,600 kg total weight, it moves smoothly through residential courtyards and rural plots. Operating up to 10 times faster than conventional rotary table drills, its top-drive power head effortlessly alternates between high-pressure DTH air hammer percussion (for granite, limestone, and basalt) and mud circulation (for sand, clay, and gravel).
Equipped with an industrial 70 kW / 75 kW turbocharged diesel engine driving a parallel transmission with independent hydraulic pumps. Delivers reliable power distribution, low fuel consumption, and easy worldwide maintenance.
Patented composite arm design with dual lifting cylinders delivers up to 15T–20T rig lifting power. The 3.4m one-time advance stroke handles standard 1.5m, 2m, and 3m drill pipes with built-in cylinder safety limiters.
Integrated gearbox with hydraulic motor and speed reducer delivers 4,200–5,600 N·m torque. A fast distribution valve provides 3-gear speed regulation (40–70 r/min, max up to 150–160 r/min) for both air and water drilling.
Four heavy-duty hydraulic outriggers enable rapid chassis leveling on slopes and rough terrain, allowing the rig to elevate and self-load directly onto flatbed transport trailers without a mobile crane.
Weighing only 5,600 kg with an ultra-slim 1.8m width, the KW260 features durable steel tracks (optional road-friendly rubber tracks), minimizing lawn and road surface damage while offering 30° climbing ability.
Includes an integrated dust removal system for cleaner operations in enclosed cavities/tunnels, customized DTH hammer oil lubricator, soft hydraulic hose sleeves, and a centralized easy-to-use control station.
| Technical Parameter | Specification / Engineering Value |
|---|---|
| Maximum Drilling Depth | 260 m (approx. 853 ft) |
| Borehole Drilling Diameter | ⌀140 – 305 mm (5.5 – 12.0 in) |
| Drilling Methods | Top Drive Hydraulic Rotary: DTH Air Hammer & Mud Pumping |
| Diesel Engine Model & Power | Turbocharged Diesel Engine, 70 kW / 75 kW |
| Rig Pullback / Lifting Force | 15 – 20 Tons (150 – 200 kN) |
| One-Time Advance Stroke | 3.4 m (Accommodates 1.5m, 2m, 3m drill pipes) |
| Rotary Head Torque | 4,200 – 5,600 N·m |
| Rotary Head Rotation Speed | 40 – 70 r/min (Fast valve max up to 150–160 r/min) |
| Working Air Pressure Range | 1.7 – 3.0 MPa (17 – 30 bar / 246 – 435 psi) |
| Air Consumption Demand | 15 – 31 m³/min (matching screw air compressor) |
| Average Penetration Efficiency | 15 – 35 m/h (geology dependent) |
| Compatible DTH Hammers | 4", 5", 6", 8" DTH hammers or CIR110, 130, 150, 170 series |
| Applicable Drill Pipe Length & Diameters | Lengths: 1.5m, 2m, 3m | Diameters: ⌀76 mm, ⌀89 mm, ⌀102 mm |
| Track Options & Climbing Capacity | Standard steel track (rubber track optional) | 30° Climbing Capacity |
| Tramming Speed & Dust Device | 0 – 2.5 km/h | Integrated dust collection device |
| Overall Machine Dimensions (L×W×H) | 4,000 × 1,800 × 2,350 mm (1.8m ultra-narrow width) |
| Total Operating Weight | 5,600 kg (5.6 Tons) |
To maximize penetration efficiency across 140–305 mm boreholes down to 260 meters, the KW260 pairs seamlessly with compact portable screw compressors and mud pumps:
Kaishan LGCY-13/13, LGCY-18/17, or KSCY-580/13 (13–17 bar, 15–18 m³/min) for high-speed DTH hammer drilling in rock.
BW-160 reciprocating mud pump for borehole wall stabilization when drilling through alluvial sand, gravel, and wet clay.
A: The KW260 is rated for drilling depths up to 260 meters (853 ft) with hole diameters from 140 mm to 305 mm, supported by a 15–20 ton lifting force hoist.
A: Weighing only 5.6 tons with an ultra-compact footprint (4.0m length × 1.8m width), the KW260 navigates narrow residential streets and courtyards with ease. Its optional rubber tracks protect finished asphalt and paved ground from damage.
A: Yes. The four hydraulic outriggers quickly level the rig and elevate it high enough for a flatbed trailer to back underneath, allowing crane-free self-loading and unloading.
