Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Powered by a single 6-cylinder Cummins QSL8.9-C360-30 non-road diesel engine (264 kW at 2200 rpm), with a two-terminal output configuration that simultaneously drives the two-stage screw air compressor (20 m³/min at 22 bar) and a 5× gear-pump hydraulic transmission system for high-penetration 115–152 mm drilling.

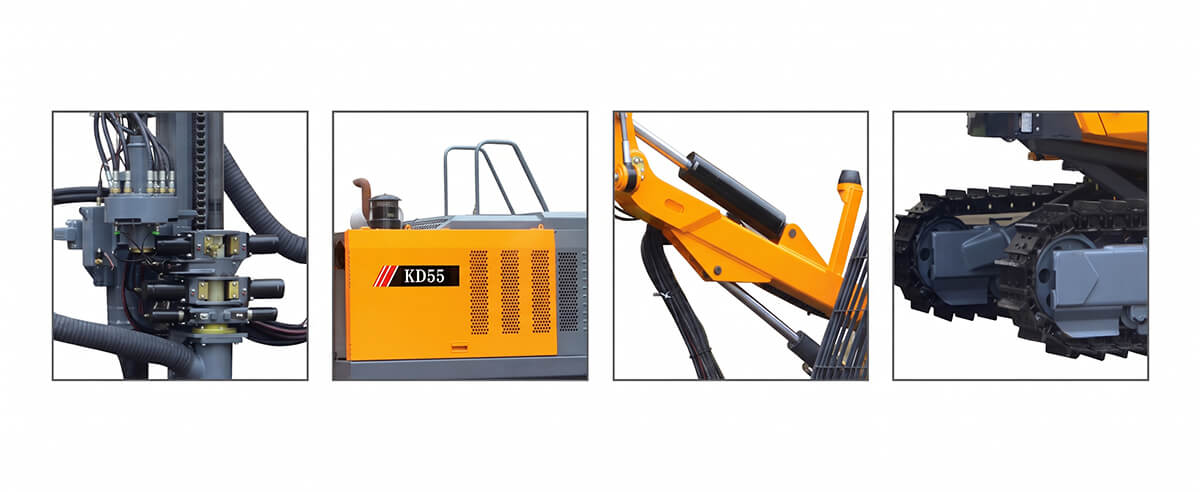

Equipped with an automatic 6+1 rod-handling carousel for Φ76/Φ89×4000 mm drill pipes, a drilling-rod floating slide module, a drill-pipe lubrication module, and an automatic electro-hydraulic anti-jamming system to ensure uninterrupted 28 m deep-hole production in complex rock formations (f=6–20).
Features a certified FOPS & ROPS safety cab with standard heating/cooling air conditioning, indoor noise below 85 dB(A), hydraulic pilot controls for both traveling and drilling, a hydraulic dry dust collection system, and optional drilling angle and depth indication functions.
| Parameter / Item | KD55 Specification |
|---|---|
| Transport dimensions (L×W×H) | 9900*2600*3350/3600 mm |
| Weight | 17500 Kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 115-152 mm |
| Ground clearance | 420 mm |
| Leveling angle of track | 10°up, 10°down |
| Travelling speed | 0-3 Km/h |
| Climbing capacity | 25° |
| Traction | 100 KN |
| Rotary torque (Max) | 3450 N·m (Max) |
| Rotation speed | 0-120 rpm |
| Lifting angle of drill boom | Up 47°, down 20° |
| Swing angle of drill boom | Right 50°, left 15° |
| Swing angle of carriage | Right 96°, left 30° |
| Tilt angle of beam | 114° |
| Compensation stroke | 1353 mm |
| Feed stroke | 4490 mm |
| Maximum propelling force | 40 KN |
| Method of propulsion | Motor+Roller chain |
| Depth of economical drilling | 28 m |
| Number of rods | 6+1 |
| Specifications of drilling rod | Φ76/Φ89x4000 mm |
| DTH hammer | 4", 5" |
| Engine | Cummins QSL8.9-C360-30 |
| Number of cylinders | 6 |
| Output power | 264 KW/2200 rpm |
| Hydraulic pump | 5× gear pumps |
| Screw air compressor | Two stage compression 20m³/min /22bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-Jamming |
| Voltage | 24V, DC |
| Safe cab | Meets the requirements of FOPS & ROPS |
| Indoor noise | Below 85dB (A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio +Mp3 |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, optional drilling-angle and depth-indication modules, and export-compliant diesel-emission packages are available upon request for bulk orders.

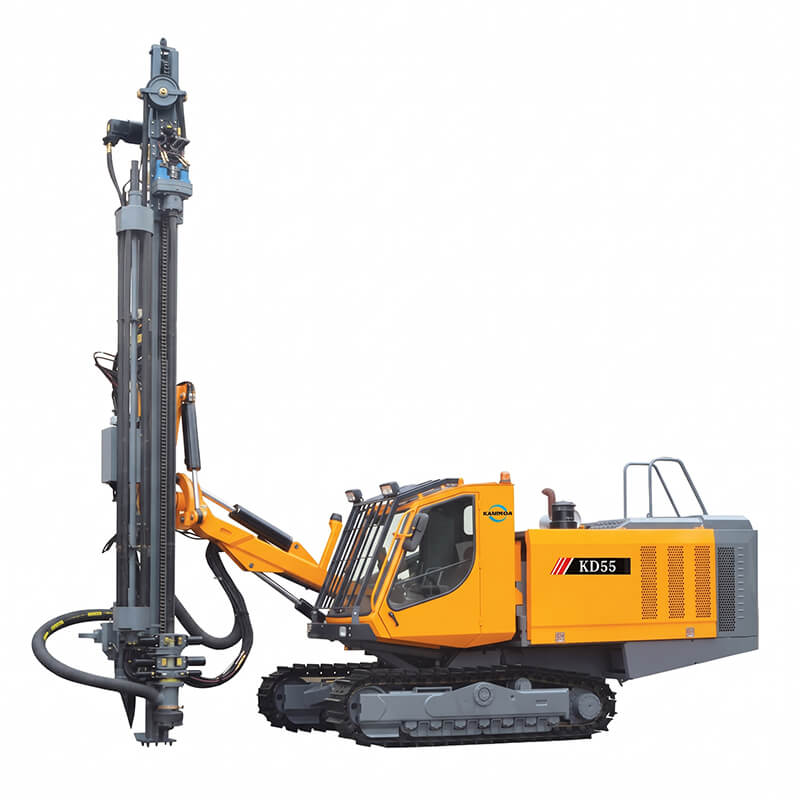

The Kaishan KD55 integrated surface DTH drilling rig is engineered for continuous, high-production bench blasting and pre-splitting operations across demanding surface sites:
The KD55 is a heavy-duty 17,500 kg cabin-equipped rig powered by a 264 kW Cummins QSL8.9-C360-30 engine with a FOPS & ROPS air-conditioned cab, hydraulic pilot controls, 40 kN propelling force, 100 kN traction, and a 6+1 rod changer for Φ76/Φ89×4000 mm rods (28 m depth), whereas the KD55ED is a 13,000 kg open-station rig using Φ76×3000 mm rods.
No. The KD55 integrates a built-in two-stage screw air compressor that delivers 20 m³/min at 22 bar, driven directly by the Cummins engine's two-terminal output alongside the 5× gear pump hydraulic system.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, OEM/ODM customization, and complete genuine maintenance kits (4"/5" DTH hammers, Φ76/Φ89×4000 mm drill rods, and Cummins/air-end filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
