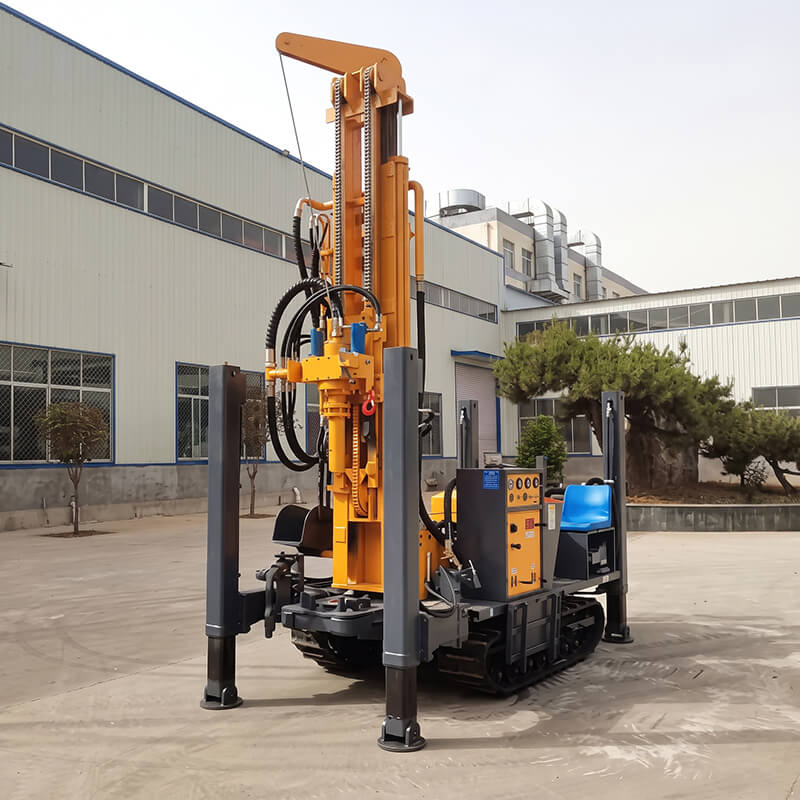

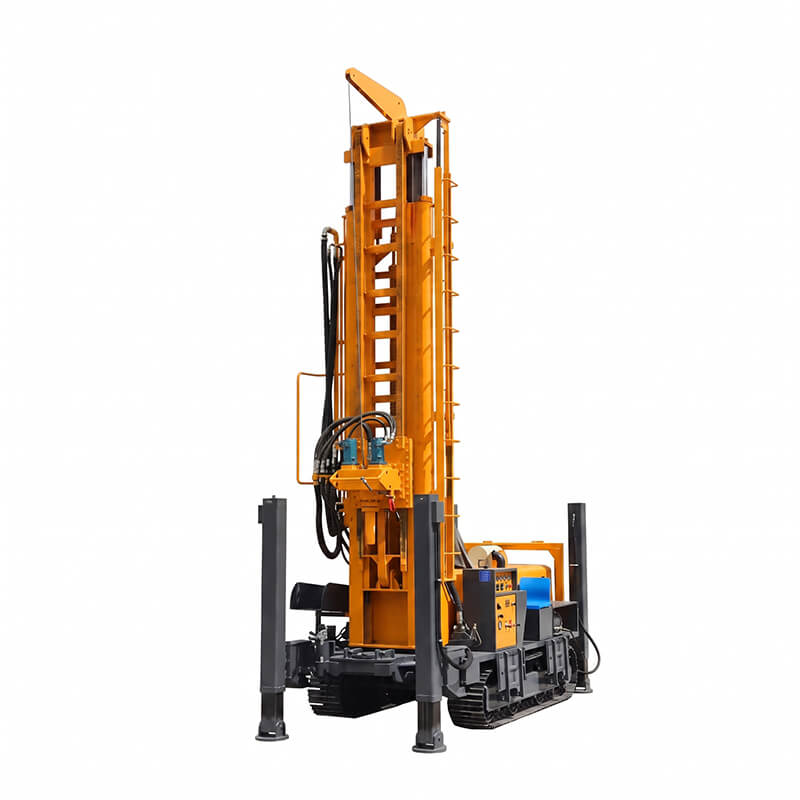

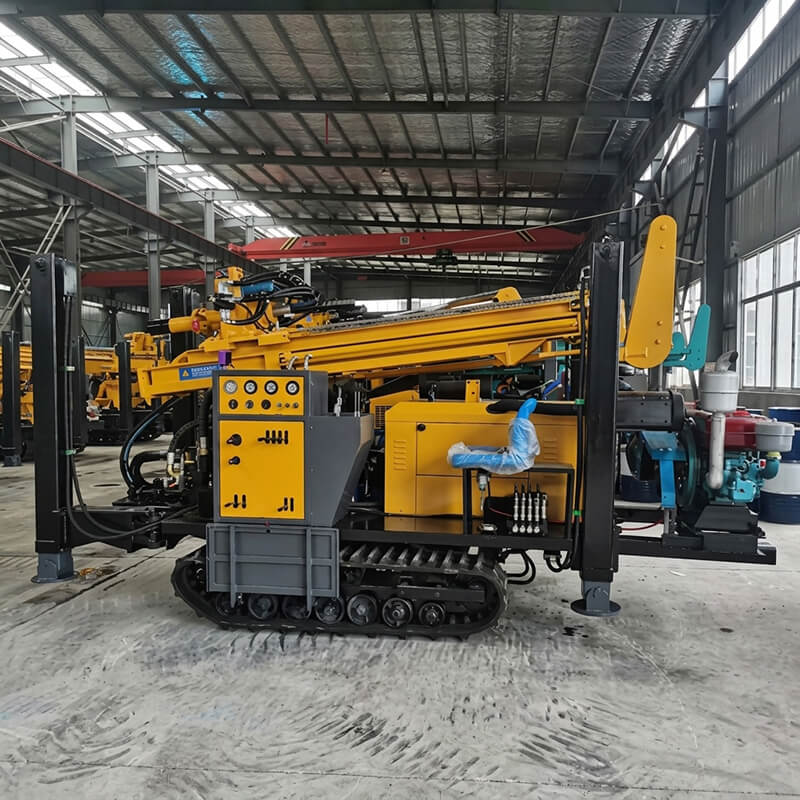

Direct Overview: The Kaishan KW200R is an ultra-portable, rubber-tracked multifunctional water well and geothermal drilling rig engineered to drill borehole diameters from ⌀140 mm to 305 mm down to a maximum depth of 200 meters. Upgraded from the popular KW180R, it features a more powerful 65 kW Quanchai turbocharged diesel engine, 13-ton (130 kN) pullback capacity, and 4,700 N·m rotary torque. Weighing only 5,000 kg with an ultra-slim 1.7-meter body width, its non-marking rubber tracks and hybrid "Gas & Water" dual drilling system allow seamless air DTH hammer and mud pump operation across residential courtyards, paved urban driveways, and agricultural fields.

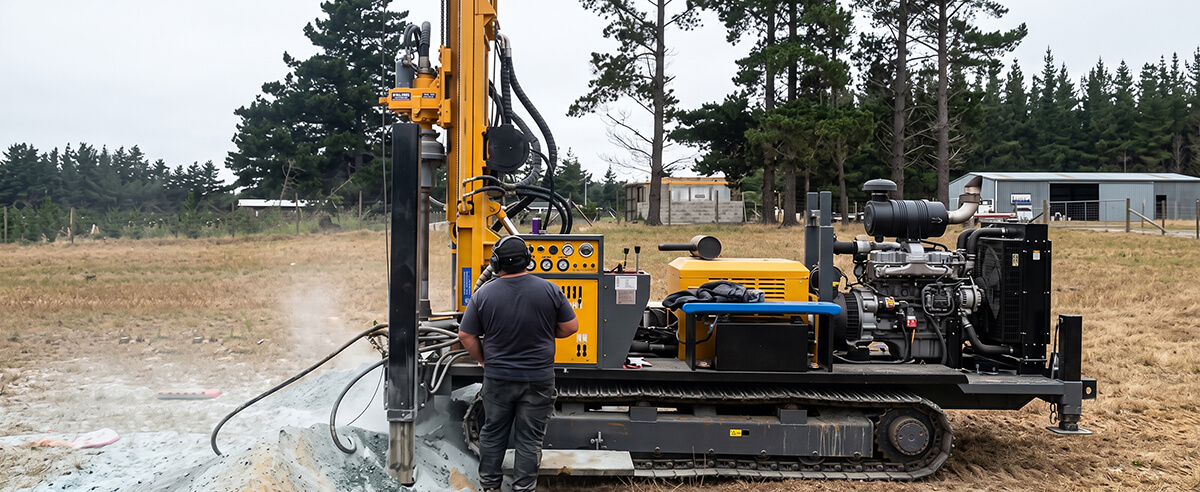

Private residential water supply, greenhouse farming, and shallow geothermal HVAC installations demand a drilling rig that is agile, lightweight, and gentle on finished surfaces. Traditional steel-tracked or heavy truck-mounted rigs frequently damage private asphalt driveways, garden turf, and concrete pavers, or cannot navigate through tight residential gate entrances.
The Kaishan KW200R is the optimal solution for contractors seeking maximum portability. Built with high-grade road-friendly rubber tracks and an ultra-narrow 1,700 mm footprint, the KW200R delivers exceptional maneuverability in tight city alleys and rural homesteads. Operating up to 10 times faster than conventional rotary drills, it enables drillers to switch instantly between high-pressure air hammer percussion for hard rock (f=6–20) and mud circulation for loose sand, silt, and clay formations.
Powered by a fuel-efficient 65 kW Quanchai industrial engine coupled with an independent hydraulic pump design, ensuring strong hydraulic flow, low fuel consumption, and economical long-term maintenance.
Equipped with heavy-duty rubber tracks (steel tracks optional) that travel across lawns, residential brick pavers, and asphalt without surface gouging. Features 30° climbing capacity and 0–2.5 km/h tramming speed.
Patented composite arm design delivers 13T (130 kN) rig lifting power with integrated cylinder safety limiters. The 3.4m advance stroke accommodates standard 1.5m, 2m, and 3m drill pipes smoothly.
High-torque top drive head delivers 3,300–4,700 N·m torque and 45–65 r/min (fast valve regulation up to 150–160 r/min). Large hollow spindle allows air flushing, foam mist, and mud drilling without head swaps.

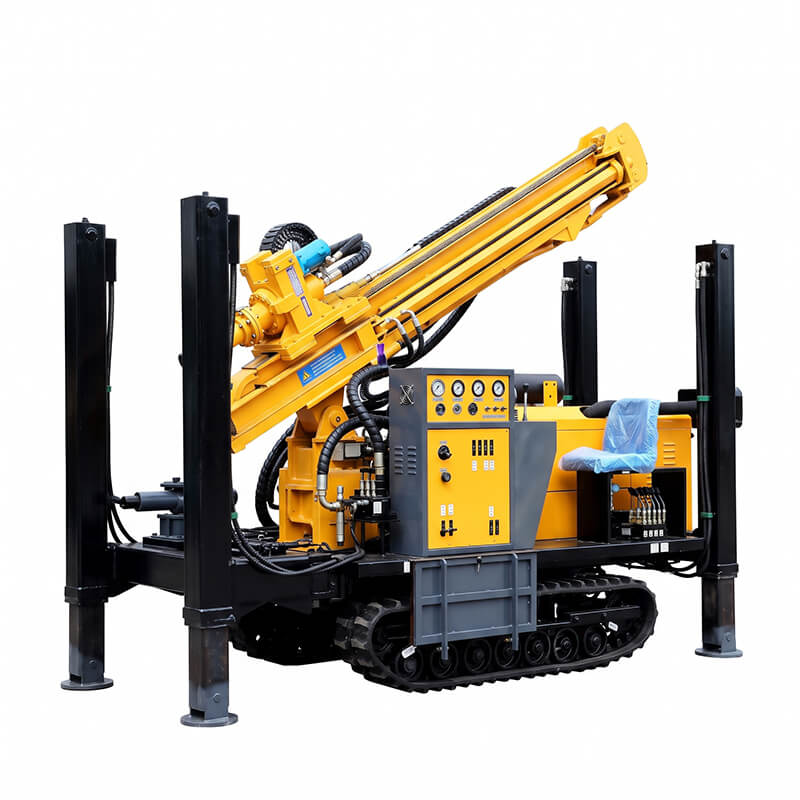

Four heavy-duty hydraulic outriggers provide rapid chassis leveling on uneven terrain and elevate the rig high enough for a flatbed trailer to back underneath, enabling 100% crane-free self-loading and unloading.
Equipped with an integrated dust suppression device suitable for tunnel/cavity applications, customized DTH hammer oil mist lubricator, soft-protected hydraulic hoses, and an ergonomic operator panel.
| Technical Parameter | Specification / Engineering Value |
|---|---|
| Maximum Drilling Depth | 200 m (approx. 656 ft) |
| Borehole Drilling Diameter | ⌀140 – 305 mm (5.5 – 12.0 in) |
| Drilling Methods | Top Drive Hydraulic Rotary: DTH Air Hammer & Mud Pumping |
| Diesel Engine Model & Power | Quanchai Turbocharged Diesel Engine, 65 kW (55–65 kW) |
| Rig Pullback / Lifting Force | 13 Tons (130 kN) |
| One-Time Advance Stroke | 3.4 m (Accommodates 1.5m, 2m, 3m drill pipes) |
| Rotary Head Torque | 3,300 – 4,700 N·m |
| Rotary Head Rotation Speed | 45 – 65 r/min (Fast valve max up to 150–160 r/min) |
| Working Air Pressure Range | 1.7 – 3.0 MPa (17 – 30 bar / 246 – 435 psi) |
| Air Consumption Demand | 15 – 31 m³/min (matching screw air compressor) |
| Average Penetration Efficiency | 15 – 35 m/h (geology dependent) |
| Compatible DTH Hammers | 4", 5", 6", 8" DTH hammers or CIR110, 130, 150, 170 series |
| Applicable Drill Pipe Length & Diameters | Lengths: 1.5m, 2m, 3m | Diameters: ⌀76 mm, ⌀89 mm, ⌀102 mm |
| Track Type & Climbing Capacity | Heavy-duty rubber track (steel track optional) | 30° Climbing Capacity |
| Tramming Speed & Leveling Legs | 0 – 2.5 km/h | 4 high hydraulic leveling outriggers |
| Overall Machine Dimensions (L×W×H) | 3,950 × 1,700 × 2,300 mm (1.7m ultra-slim width) |
| Total Operating Weight | 5,000 kg (5.0 Tons) |
To achieve maximum penetration across 140–305 mm boreholes down to 200 meters, the KW200R connects easily with standard portable screw compressors and mud pumps:
Kaishan LGCY-13/13, LGCY-15/13, or KSCY-580/13 (13–17 bar, 15–18 m³/min) for rapid DTH hammer rock penetration.
BW-160 reciprocating mud pump for borehole wall stabilization when drilling through alluvial sand, gravel, and wet clay.
A: The KW200R is rated for drilling depths up to 200 meters (656 ft) with hole diameters from 140 mm to 305 mm, supported by a 13-ton lifting force hoist.
A: The "R" designates Rubber track undercarriage. The heavy-duty rubber tracks allow the machine to maneuver freely across paved roads, residential driveways, and lawns without causing surface cracking or damage.
A: The KW200R upgrades engine power from 55 kW to 65 kW, increases max drilling diameter to 305 mm, and upgrades the lifting hoist to 13 tons, providing greater reliability and faster penetration across tough rock strata.
