Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

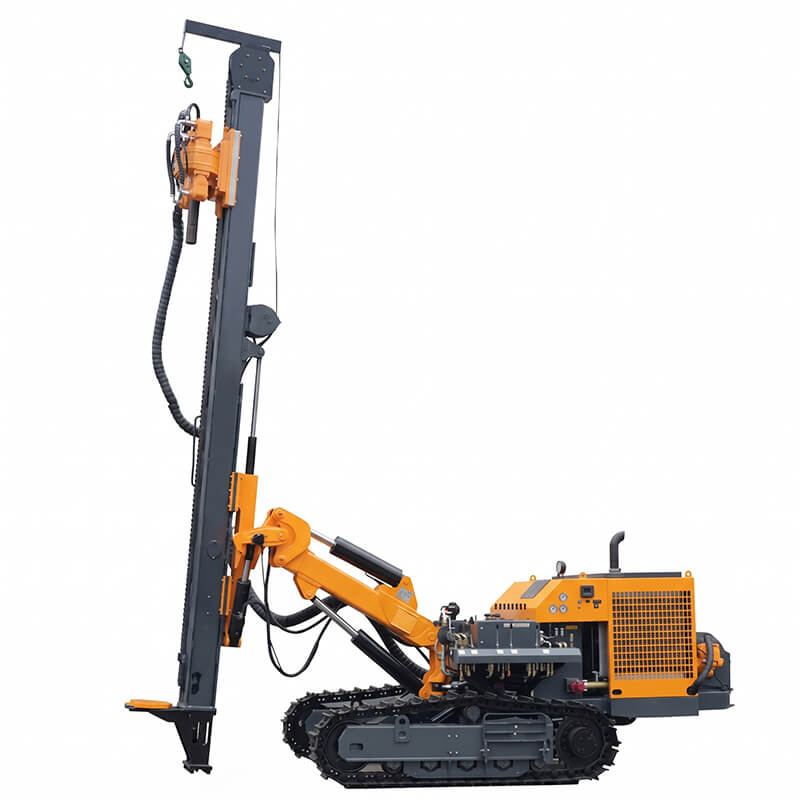

Custom-designed for large-diameter solar photovoltaic (PV) ground pile holes up to 500 mm (20 inches). Handles heavy 6" to 12" DTH hammers (standard 8" hammer) with Φ102 mm drill rods to penetrate tough boulder layers and solid bedrock.

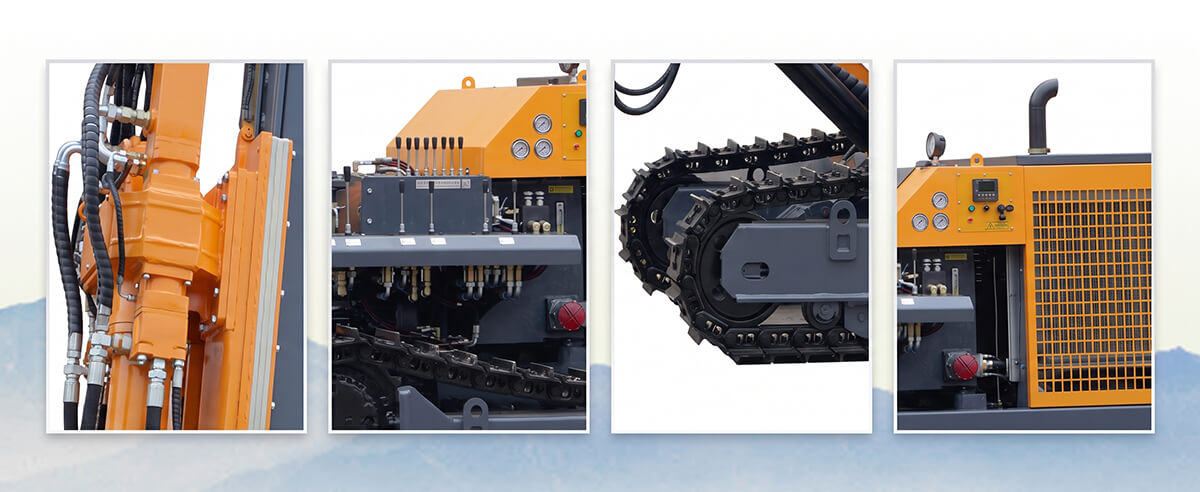

Equipped with four sets of hydraulic rotary motors driven by high-modulus straight-tooth gearing with a massive reduction ratio, producing up to 12,000 N·m torque at 0–80 rpm to conquer severe drilling resistance without stalling.
Built on a reinforced box-type structural steel mast with 28A heavy-duty roller chain feed (4,275 mm stroke). Enables continuous single-pass drilling over 4 meters, backed by high-pressure cast-iron hydraulic gear pumps.
Powered by an 86 kW Yuchai DKC9G0 diesel engine with high-efficiency desert cyclone air filtration. Offers an optional 1-ton mast winch for hoisting heavy drill bits and an optional 8-ton chassis winch for steep mountain slope traction.
| Model of drill rig | KG500GF |
|---|---|
| Weight of complete machine | 7500Kg |
| Outer dimensions | 6680×2450×2710mm |
| Drilling hardness | F=6-20 |
| Drilling diameter | Φ185-500mm |
| Rotary speed | 0-80rpm |
| Rotary torque (Max) | ≥12000Nm |
| Lifting force | 25KN |
| Method of Feed | Motor + roller chain |
| Feed stroke | 4275mm |
| Travelling speed | 0-3km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 440mm |
| Tilt angle of beam | 165° |
| Swing angle of beam | Left: 50°, right: 50°, total: 100° |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
| Swing angle of drill boom | Left: 30°, right: 30°, total: 60° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 1200mm |
| Air pressure for work | 1-2.4MPa |
| Supporting power | Yuchai DKC9G0 (86KW/2200r/min) |
| DTH hammer | 6-12" (standard configuration 8") |
| Drilling rod | Φ102×1500mm |
| Air consumption | 15-45m³/min |
| Frame winch for feed (optional) | 1 ton |
| Frame winch for rig (optional) | 8 tons |

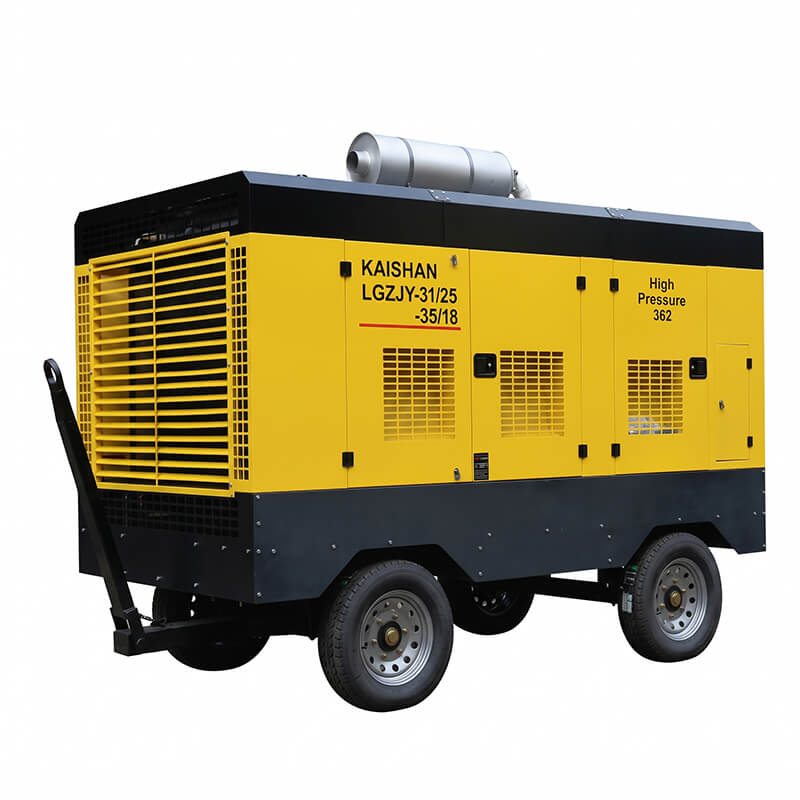

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: Drilling large holes up to 500 mm (20 inches) with 8" to 12" DTH hammers generates tremendous rotational friction and cuttings resistance. The four-motor configuration with high-modulus gear reduction provides an extraordinary 12,000 N·m torque, preventing drill-string stalling even in fractured, hard bedrock (f=6–20).
A: The 1-ton mast winch is recommended for effortlessly hoisting heavy 8"–12" DTH hammers and Φ102 mm drill rods during tool changes. The 8-ton chassis winch is essential for steep slope operations (up to 30°), providing secure traction and tethered stability on mountainous solar farms.
