Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Driven entirely by a powerful 96 kW Cummins B3.9CS4-130C diesel engine with an onboard 170 L fuel tank, integrated 0.3 m³/min air compressor, and built-in water tank supply. Completely eliminates reliance on external electrical cables, compressed air lines, or water mains, offering 100% autonomous mobility across draw points.
Specifically tailored for short-duration, multi-workstation secondary rock breaking in block caving and sublevel open-stoping operations. Enables rapid single-operator setup, high-speed drilling of oversized boulders (1000 mm / 1500 mm depth), and instant relocation between stope drawpoints to keep mine haulage flowing.
Features a heavy-duty K25 telescopic boom with 1200 mm extension, 850 mm feed extension, 360° beam rotation, and ±30° swing angles, paired with a high-frequency HC50 drifter (13 kW at 62 Hz) for Φ32–76 mm blast holes, an axial piston pump hydraulic system with wind cooler, and a FOPS/ROPS lifting canopy.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 8200mm | Capacity of air compressor | 0.3m³/min |
| Width | 1780mm | Pressure | 3-5bar |
| Height | 2000/3000 mm | Device for shank lubrication | Electronic pulse lubrication pump |
| Weight | Appr. 12000 kg | Oil consumption for lubrication | 180-250g/h |
| Tramming speed on flat ground | 10km/h | Capacity of water pump | 3m³/h |
| Maximum climbing capacity | 25%(14°) | Chassis | |
| Safety protection | Diesel engine | Cummins B3.9CS4-130C 96KW/2500rpm | |
| Noise level | < 100dB(A) | Drive system | Closed hydraulic system for four-wheel driving |
| Lifting safety roof | FOPS & ROPS certified | Swing angle | Swing of rear axle: ±6° |

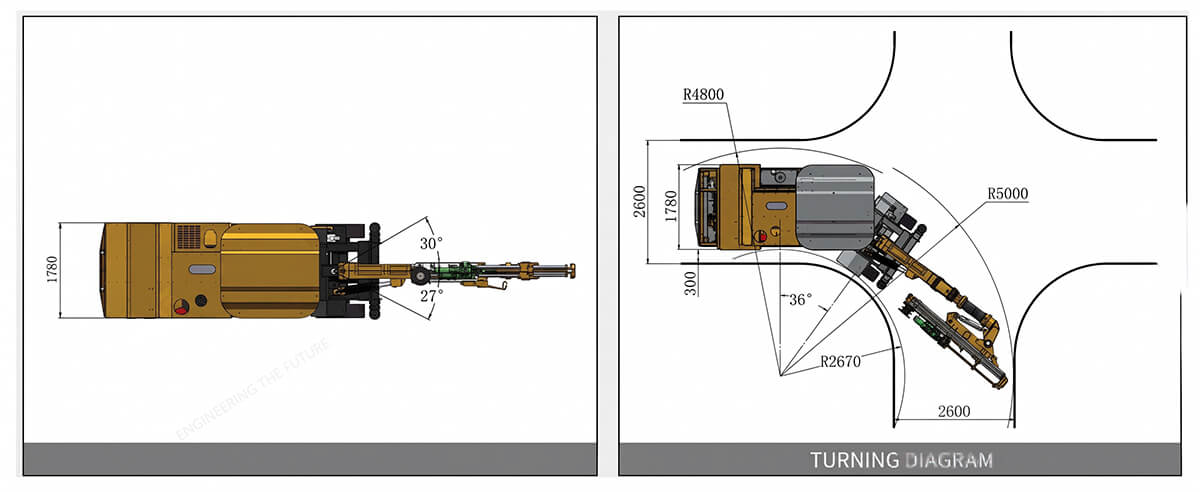

| Steering mechanism | Articulated steering: ±35° | ||
| Travelling braking / Parking braking | Multidisc brake | ||
| *Secondary Braking Specialized Configuration | Fuel tank | 170L | |
| Drilling system | Drill boom | ||
| Rock drill | 1×HC50 / R38 | Model of drill boom | K25 |
| Impact power | 13kW | Form of drill boom | Telescopic |
| Impact Frequency | 62 Hz | Boom extension | 1200mm |
| Hole diameter | Φ32-76mm | Hydraulic power unit | |
| Beam rotation | 360° | Impact /Feed/ Positioning | Axial variable displacement piston pump |
| Feed extension | 850mm | Rotation | Gear pump |
| Drilling depth | 1000mm / 1500mm | Filter fineness | 10 μ |
| Drill rod | R38-H35-R32-1350 / R38-H35-R32-1850 | Hydraulic oil tank | 240L |
| Hydraulic cooler | Wind cooler | ||
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, secondary boulder breaking attachments, and export-compliant diesel emission packages are available upon bulk order request.

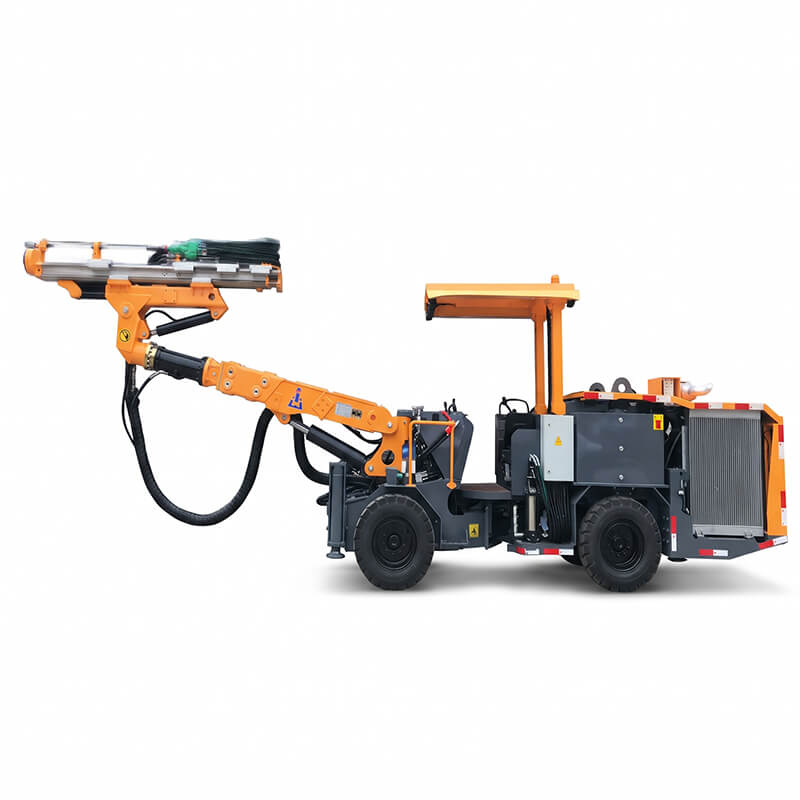

The Kaishan KJ314 hydraulic drilling rig is specifically tailored for rapid, multi-position secondary rock breaking and oversized boulder drilling in underground mining:
Standard tunneling jumbos require connecting heavy 380V electric trailing cables and external water/air hoses at every heading. The KJ314 operates purely on diesel power (Cummins 96 kW) with its own onboard water tank and air compressor, allowing operators to drive directly up to an oversized boulder, drill a blast hole in minutes, and quickly tram to the next drawpoint without hookup delays.
The KJ314 utilizes an HC50 rock drill (13 kW at 62 Hz) with R38 shank threads, supporting drill rods R38-H35-R32-1350 for 1000 mm hole depth, or R38-H35-R32-1850 for 1500 mm hole depth across Φ32–76 mm diameters, ideal for secondary boulder splitting.
As an authorized China manufacturer and global B2B exporter, Kaishan provides factory-direct pricing, flexible MOQ, OEM customization, and complete spare parts support (HC50 drifter seal kits, shank adapters, R38 drill rods, and Cummins engine filters). Contact our sales team for an official FOB/CIF quotation.
