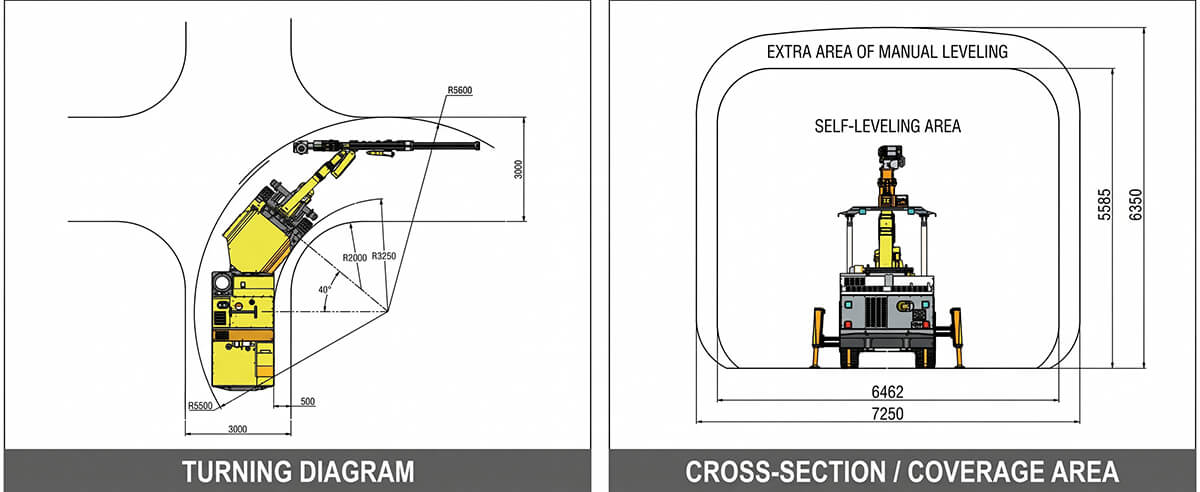

Equipped with a robust K 26F self-leveling universal drill boom featuring 1200 mm boom extension, 1600 mm feed extension, and 360° beam rotation. Delivers optimal face coverage (automatic self-leveling area up to 6462×5585 mm; manual leveling extra area up to 7250×6350 mm) for face blasting, lateral crosscut opening, and roof bolting across 12–35 m² hard rock tunnels.
Supports multiple high-frequency hydraulic rock drills (HC50 / HC95 / RD18U / HC95LMH / RD22U) delivering 13–22 kW impact power at 53–62 Hz for Φ32–102 mm blast holes. The stepped piston architecture optimizes shockwave transmission efficiency, increases penetration rates, lowers R38/T38 drill steel consumption, and maximizes machine availability.
Built on a balanced 12,000 kg 4WD articulated wheeled chassis (1750 mm width) powered by a Cummins B3.9CS4-80C diesel engine (59 kW) for 10 km/h tramming, ±40° steering, ±10° rear axle oscillation, and 60 L fuel capacity, paired with a 45/55/75 kW electro-hydraulic power pack and a certified FOPS & ROPS lifting safety canopy.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 11500mm | Air compressor | DLGF 0.7/8-5.5(B) |
| Width | 1750mm | Capacity of air compressor | 0.7m³/min |
| Height | 2000/3000 mm | Pressure | 6-8bar |
| Weight | Appr. 12000kg | Device for shank lubrication | Electronic pulse lubrication pump |
| Tramming speed on flat ground | 10km/h | Air consumption of lubrication | 0.3m³/min |
| Maximum climbing capacity | 25%(14°) | Oil consumption for lubrication | 180-250g/h |
| Safety protection | Power of water pump | 1.5kW / 4kW | |
| Noise level | < 100dB(A) | Capacity of water pump | 3m³/h / 5.8m³/h |
| Lifting safety roof | FOPS & ROPS certified | Chassis | |
| Diesel engine | Cummins B3.9CS4-80C 59KW/2500rpm | ||
| Steering mechanism | Articulated steering: ±40° | Drive system | Closed hydraulic system for four-wheel driving |
| Travelling braking | Two-circuit hydraulic brake | Swing angle | Swing of rear axle: ±10° |
| Parking braking | Wet multi-disc brake of reducer | Fuel tank | 60L |
| Drilling system | |||
| Rock drill | HC50 | HC95 / RD18U | HC95LMH / RD22U |
| Rod size | R38 / T38 | ||
| Impact power | 13KW | 20KW / 18KW | 21KW / 22KW |
| Impact Frequency | 62Hz | 62Hz / 57Hz | 62Hz / 53Hz |
| Hole diameter | Φ32-76mm | Φ42-89 mm | Φ42-102mm |
| Beam rotation | 360° | ||
| Feed extension | 1600mm | ||
| Model of drill boom | K 26F | ||
| Form of drill boom | Self-leveling | ||
| Boom extension | 1200mm | ||
| Electric hydraulic power unit | |||
| Motor | 45kW | 55kW | 75kW |
| Impact /Feed/ Positioning | Axial variable displacement piston pump | ||
| Rotation | Gear pump | ||
| Filter fineness | 10 μ | ||
| Hydraulic oil tank | 240L | ||
| Hydraulic cooler | Water cooler | ||
| Working voltage | 380V | ||
| Frequency | 50Hz | ||
| Starting method | Star-triangle | ||
| Cable specifications | 3×35+3G6 | 3×50+3G10 | |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, drifter selections (HC50 / HC95 / RD18U / HC95LMH / RD22U), and tailored underground electrical voltages are available upon request for bulk orders.

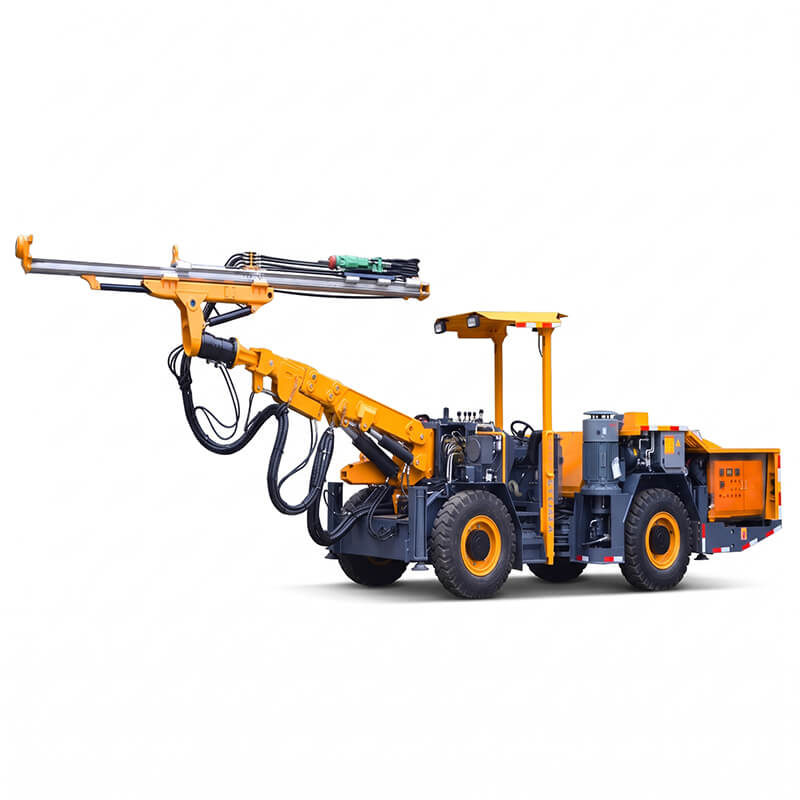

The Kaishan KJ311 hydraulic underground mining jumbo is purpose-built for medium-to-large hard rock tunneling and mining development across 12–35 m² cross-sections:
While both cover 12–35 m² headings using the K 26F self-leveling boom, the KJ311 is mounted on a 12,000 kg 4WD articulated wheeled chassis with a 10 km/h tramming speed and 60 L fuel tank for rapid transit between multiple underground headings, whereas the KJ310 is a 13,500 kg crawler-mounted unit (2.5 km/h tramming speed).
The KJ311 can be equipped with HC50 (13 kW, Φ32–76 mm), HC95 / RD18U (18–20 kW, Φ42–89 mm), or HC95LMH / RD22U (21–22 kW, Φ42–102 mm) hydraulic drifters, paired with 45 kW, 55 kW, or 75 kW electric-hydraulic power units (380V/50Hz standard; custom site voltages available).
As an authorized China manufacturer and global B2B supplier, we offer factory-direct pricing, flexible MOQs, custom site-voltage configurations, and complete genuine maintenance kits (HC50/HC95/RD drifter seals, shank adapters, R38/T38 rods, and hydraulic filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
