Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

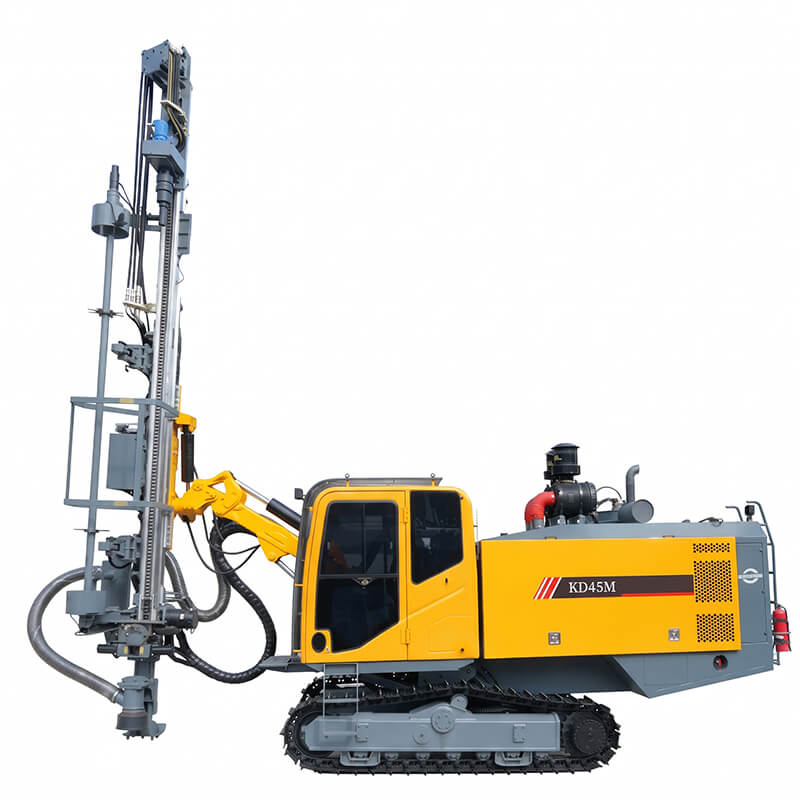

Combines the heavy DTH percussion rock drilling system and an onboard two-stage screw air compressor (18 m³/min @ 22 bar / 319 psi) onto a single self-propelled crawler chassis. Powered by a single 235 kW (320 HP) Yuchai YCA08320 diesel engine via rear flywheel and PTO outputs, it eliminates the need to tow a trailer compressor, reduces jobsite fuel burn by up to 25%, and avoids trailing air-hose hazards.

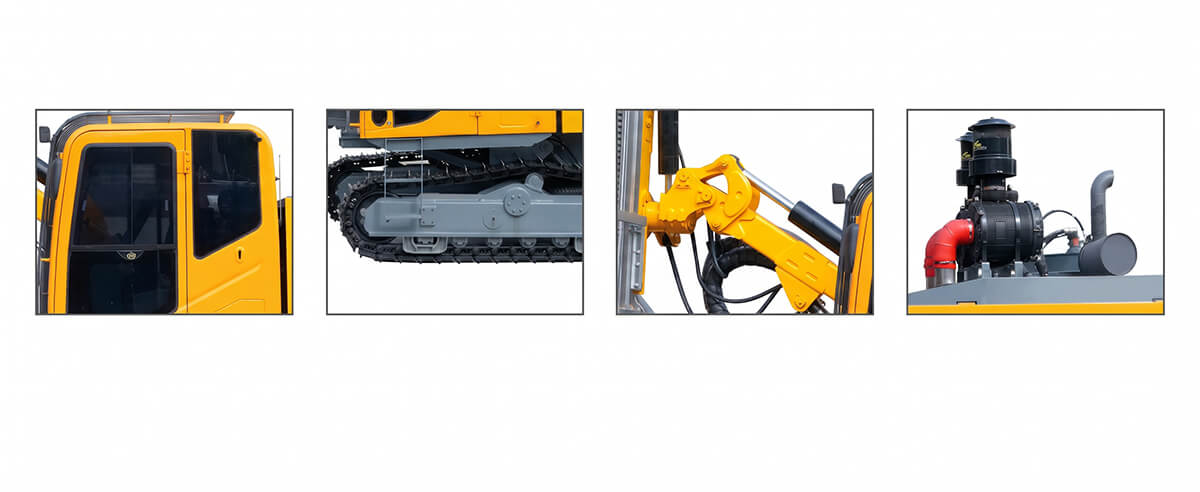

Features a heavy-duty articulated drill boom with a 148° beam tilt angle, 1,500 mm compensation stroke, 4,510 mm feed stroke, and 37 kN propelling force. The mechanised 7+1 carousel for 4-meter (Φ64/Φ76 mm) rods, floating joint module, automatic thread lubrication, and electro-hydraulic anti-jamming system enable single-operator deep drilling down to 32 meters.
Equipped with an ergonomic, climate-controlled operator cabin certified to international ROPS & FOPS safety standards with low interior noise below 85 dB(A) and hydraulic pilot controls. Built on a 13,000 kg heavy-duty crawler undercarriage with ±10° track oscillation and 355 mm ground clearance, ensuring steady tramming across 25° quarry slopes.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD45M Specification |
|---|---|
| Transport dimensions (L×W×H) | 9900×2300×3200/3500 mm |
| Weight | 13000 kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-130 mm |
| Ground clearance | 355 mm |
| Levelling angle of track | ±10° |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Traction | 80 kN |
| Rotary torque (Max) | 2500 N·m (Max) |
| Rotation speed | 0-173 rpm |
| Swing angle of drill boom | Left 18°, right 46° |
| Swing angle of carriage | Left 9°, right 96° |
| Tilt angle of beam | 148° |
| Compensation stroke | 1500 mm |
| Rotation Head stroke | 4510 mm |
| Maximum propelling force | 37 kN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 32 m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64 / Φ76 × 4000 mm |
| DTH hammer | 3", 4" |
| Engine | Yuchai YCA08320-T300 |
| Rated power | 235 kW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | Two stage compression 18 m³/min / 22 bar |
| Travelling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meets the requirements of ROPS & FOPS |
| Indoor noise | Below 85 dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio |
A: The KD45M upgrades the onboard two-stage screw compressor to 18 m³/min @ 22 bar (versus 12 m³/min @ 15 bar on KD35M), increases diesel engine power to 235 kW (versus 176 kW), expands borehole diameter up to 130 mm (versus 105 mm), boosts rotary torque to 2,500 N·m (versus 1,680 N·m), increases propelling force to 37 kN (versus 32 kN), and utilizes 4-meter long Φ64/Φ76 mm drill rods to reach 32 meters economical depth (versus 24 meters).
A: No. The KD45M is completely self-contained. The 235 kW Yuchai diesel engine powers the hydraulic drilling and tramming systems and directly drives the onboard 22-bar, two-stage screw air compressor, operating autonomously with no trailing hoses.
A: The operator works inside a climate-controlled, noise-insulated (<85 dB(A)) cabin certified to ROPS & FOPS impact standards. Additionally, the automatic electro-hydraulic anti-jamming system senses abnormal rotational resistance in fractured rock and automatically adjusts feed pressure to prevent stuck drill tools.
