Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

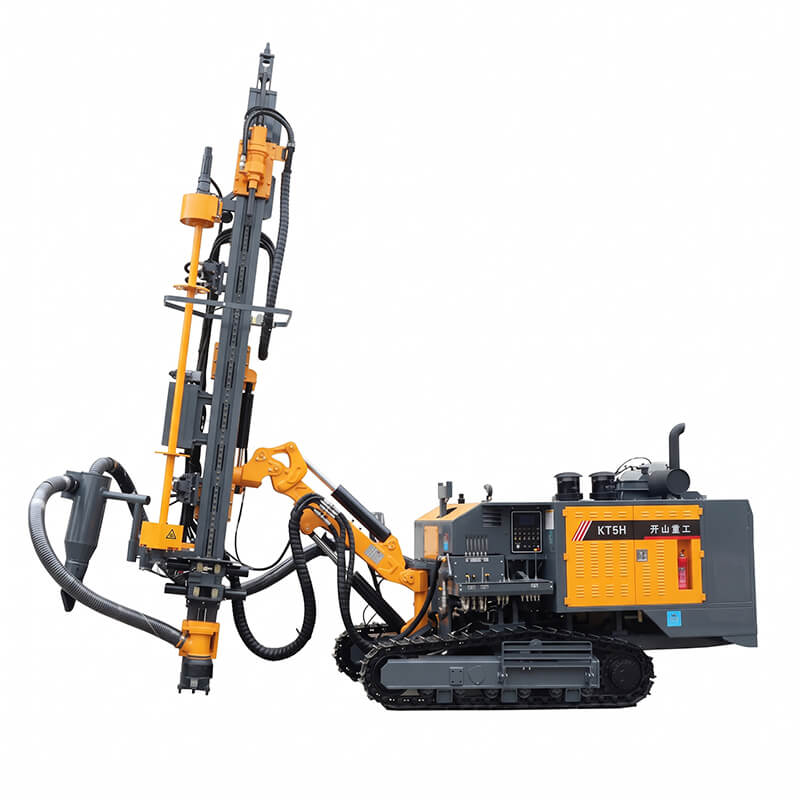

Integrates a heavy-duty two-stage rotary screw compressor delivering 13 m³/min at 18 bar (261 psi). Powered by a single 162 kW Yuchai 6-cylinder diesel engine, eliminating separate compressor towing and cutting total fuel burn by up to 30%.

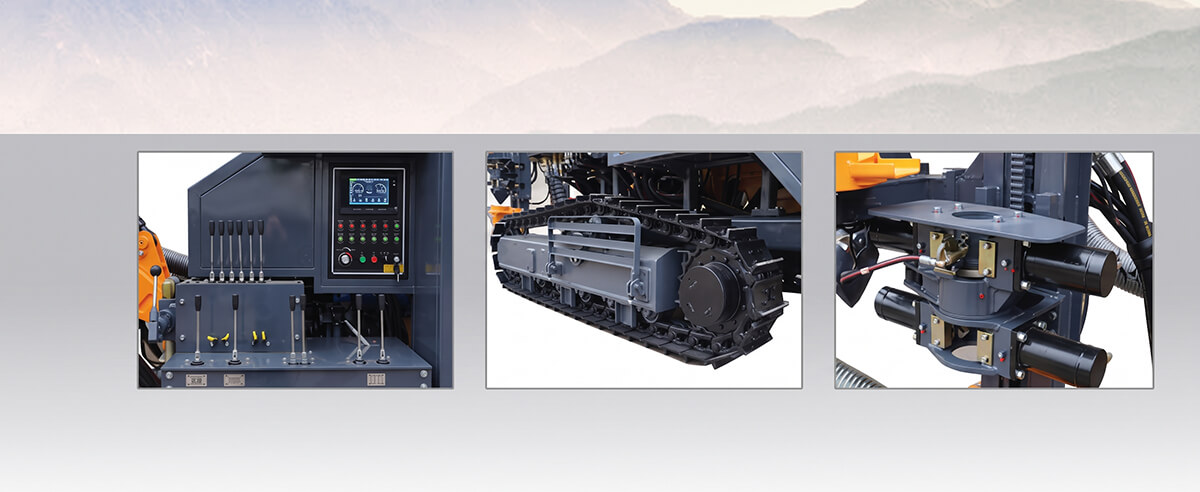

Equipped with an automated mechanical pipe carousel storing 7+1 rods (Φ64×3000 mm), hydraulic breakout tongs, and automatic thread oil injection. Enables single-operator drilling down to 24 meters with zero manual rod lifting.
Features an integrated hydraulically driven cyclonic laminar flow dust extraction system. Captures cuttings and fine silica dust directly at the borehole collar to protect engine filtration and satisfy green quarry mandates.
Boasts 147° beam tilt, 105° carriage swing, and ±10° hydraulic frame levelling on heavy crawler tracks. Easily navigates rugged quarry slopes (≤25°) to drill vertical blast holes, inclined pre-splitting, and horizontal toe holes.
| Parameter | KT5H Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 90-127 mm |
| Depth of economical drilling | 24 m |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Ground clearance | 330 mm |
| Power of complete machine | 162 kW/ 2200r/min |
| Diesel engine | Yuchai YC6J220-T300 |
| Screw compressor | Two stage compression 13 m³/min / 18 bar |
| Outer dimensions (L×W×H) | 8300×2450×2650 mm |
| Weight | 9500 kg |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque (Max) | 1680 N·m (Max) |
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 48°, down 16° |
| Tilt angle of beam | 147° |
| Swing angle of carriage | Right 53°, left 52° |
| Swing angle of drill boom | Right 34°, left 25° |
| Levelling angle of frame | Up 10°, down 10° |
| One-time advance length | 3500 mm |
| Compensation length | 900 mm |
| DTH hammer | 3" |
| Drilling rod | Φ64×3000 mm |
| Number of rods | 7+1 |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
| Method of extension rod | Automatic unloading rod |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
A: The KT5H adds an integrated 7+1 automatic rod handling carousel with automatic thread lubrication, upgrades the onboard screw compressor from 15 bar to a two-stage 18 bar (13 m³/min) unit, expands maximum hole diameter from 115 mm to 127 mm, and extends the single feed stroke to 3,500 mm.
A: No. The KT5H is a completely self-contained integrated rig. Its 162 kW Yuchai engine simultaneously powers the hydraulic tramming, drilling systems, dust collector, and the onboard 18-bar two-stage screw compressor, operating without any trailing hoses or secondary compressors.
