Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

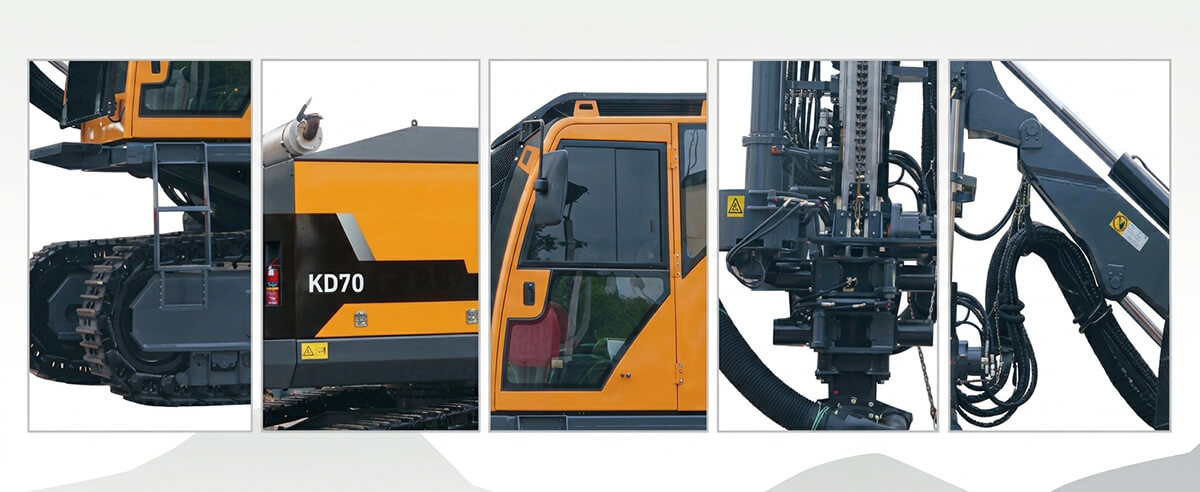

Powered by a single heavy-duty Cummins QSZ13-500-30 diesel engine (372 kW), with a two-terminal output configuration that simultaneously drives the two-stage screw air compressor (31 m³/min at 25 bar) and the hydraulic transmission system for high-penetration 152–203 mm blast hole drilling.
Equipped with an automatic rod-handling system (6+1 for 5000 mm rods or 5+1 for 6000 mm rods), a floating-joint module to protect drill-pipe threads, automatic oil-injection lubrication, and electro-hydraulic anti-sticking control for continuous 35 m/36 m deep-hole production.
Features a certified FOPS & ROPS air-conditioned safety cab with real-time drilling angle and depth display, paired with a hydraulic cyclonic laminar-flow dry dust removal system (with optional wet dust suppression) for safe, eco-friendly open-pit operations.
| Parameter / Item | KD70 Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 152-203 mm |
| Depth of economical drilling (depth of automatic extension rod) | 35m / 36m |
| Travelling speed | 3.0 Km/h |
| Climbing capacity | 25° |
| Ground clearance | 410 mm |
| Power of complete machine | 372 Kw |
| Diesel engine | Cummins QSZ13-500-30 |
| Screw compressor | Two stage compression 31 m³/min/25 bar |
| Outer dimensions (L×W×H) | 12100×2900×3850 mm |
| Weight | 28100 Kg |
| Revolving speed of gyrator | 0-100/0-150 r/min |
| Rotary torque | 6100 N·m |
| Maximum Feed force | 65 KN |
| Tilt angle of beam | 133° |
| Swing angle of carriage | Right 37°, left 37° |
| Swing angle of drill boom | Right 30°, left 17° |
| Lifting angle of drill boom | Up 49°, down 13° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1800 mm |
| Method of propulsion | Motor+roller chain |
| Feed stroke | 5700 mm / 6700 mm |
| DTH hammer | 5", 6" |
| Drilling rod (ϕ× length of drilling rod) | Φ102/Φ114/Φ127×5000 mm or Φ102/Φ114/Φ127×6000 mm |
| Drilling rod | 6+1 / 5+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow)/wet (optional) |
| Method of extension rod | Automatic unloading rod |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of thread of drilling rod | Equipped with a floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS&ROPS |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, optional wet dust removal systems, and export-compliant diesel emission packages are available upon request for bulk orders.

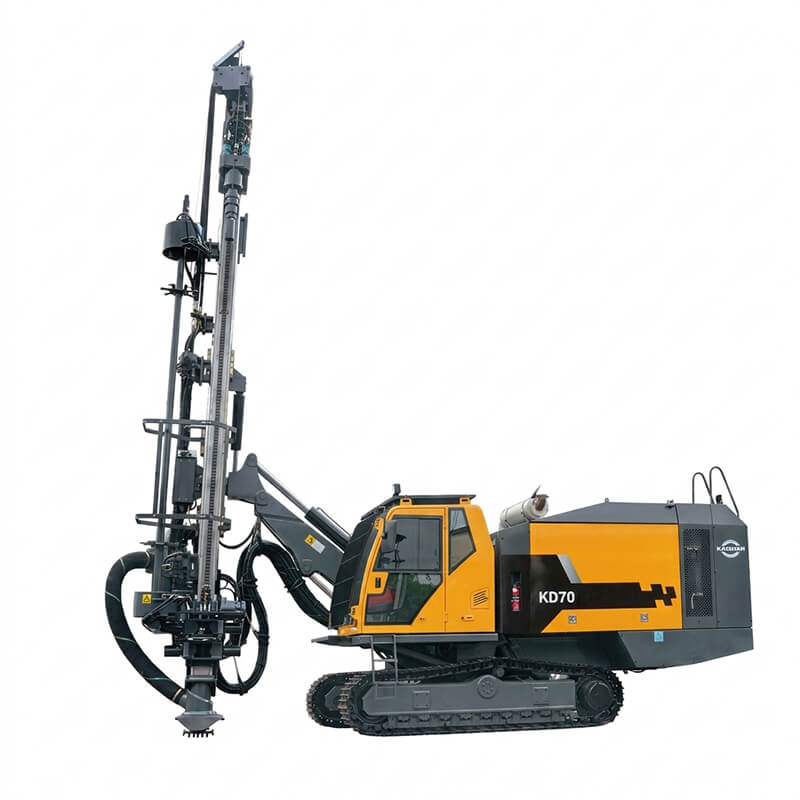

The Kaishan KD70 integrated surface DTH drilling rig is engineered for large-scale bench blasting and pre-splitting operations across heavy surface mining and civil infrastructure projects:
The KD70 supports two automatic rod handling configurations for 5" and 6" DTH hammers: a 6+1 carousel using Φ102/Φ114/Φ127×5000 mm rods (5700 mm feed stroke, 35 m economical depth) or a 5+1 carousel using Φ102/Φ114/Φ127×6000 mm rods (6700 mm feed stroke, 36 m economical depth).
No. The KD70 integrates an onboard two-stage screw air compressor that delivers 31 m³/min at 25 bar, powered directly by the 372 kW Cummins QSZ13-500-30 diesel engine's two-terminal output.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, OEM/ODM customization, and complete genuine maintenance kits (5"/6" DTH hammers, Φ102/Φ114/Φ127 drill rods, and Cummins/air-end filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
