Equipped with a robust K 26F self-leveling universal drill boom featuring 1200 mm boom extension, 1600 mm feed extension, and 360° beam rotation. Delivers optimal face coverage (automatic leveling up to 6462×5355 mm; manual leveling up to 7250×6120 mm) for vertical, inclined, horizontal, crosscut, and rock-bolt drilling across 12–35 m² hard-rock tunnels.
Supports multiple high-frequency hydraulic rock drills (HC50 / HC95 / YYG18U / HC95LMH / YYG22U) delivering 13–22 kW impact power at 53–62 Hz for Φ32–102 mm blast holes. A 75 kW star-triangle electric hydraulic power unit drives axial variable-displacement piston pumps for rapid penetration and low drill steel wear.
Built on a balanced 13,500 kg chassis powered by a Cummins B3.9CS4-80C diesel engine (59 kW at 2500 rpm) with 20° climbing capacity, ±40° steering, ±10° rear axle oscillation, two-circuit hydraulic travelling brakes, reducer wet multidisc parking brakes, and a certified FOPS & ROPS lifting safety roof.
| Dimensions and weight | Air & water system | ||
|---|---|---|---|
| Length | 10250mm | Air compressor | DLGF 0.7/8-5.5(B) |
| Width | 1800mm | Capacity of air compressor | 0.7m³/min |
| Height | 2000/2730 mm | Pressure | 8bar |
| Weight | Appr. 13500kg | Device for shank lubrication | Electronic pulse lubrication pump |
| Tramming speed on flat ground | 2.5km/h | Air consumption of lubrication | 0.3m³/min |
| Maximum climbing capacity | 20° | Oil consumption for lubrication | 180-250g/h |
| Safety protection | Power of water pump | 4kW | |
| Noise level | < 100dB(A) | Capacity of water pump | 5.8m³/h |
| Lifting safety roof | Meets the requirements of FOPS & ROPS | Chassis | |
| Diesel engine | Cummins B3.9CS4-80C 59KW/2500rpm | ||
| Steering mechanism | Articulated steering: ±40° | Drive system | Closed hydraulic system for four-wheel driving |
| Travelling braking | Two-circuit hydraulic brake | Swing angle | Swing of rear axle: ±10° |
| Parking braking | Wet multi-disc brake of reducer | Fuel tank | 34L |
| Drilling system | |||
| Rock drill | HC50 | HC95 / YYG18U | HC95LMH / YYG22U |
| Rod size | R38 / T38 | ||
| Impact power | 13KW | 20KW / 18KW | 21KW / 22KW |
| Impact Frequency | 62Hz | 62Hz / 57Hz | 62Hz / 53Hz |
| Hole diameter | Φ32-76mm | Φ42-102 mm | Φ42-102mm |
| Beam rotation | 360° | ||
| Feed extension | 1600mm | ||
| Model of drill boom | K 26F | ||
| Form of drill boom | Self-leveling | ||
| Boom extension | 1200mm | ||
| Electric hydraulic power unit | |||
| Motor | 75kW | ||
| Impact /Feed/ Positioning | Axial variable displacement piston pump | ||
| Rotation | Gear pump | ||
| Filter fineness | 10 μ | ||
| Hydraulic oil tank | 240L | ||
| Hydraulic cooler | Water cooler | ||
| Working voltage | 380V | ||
| Frequency | 50Hz | ||
| Starting method | Star-triangle | ||
| Cable specifications | 3×50+3G10 | ||
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, drifter selections (HC50 / HC95 / YYG18U / HC95LMH / YYG22U), and tailored underground electrical voltages are available upon bulk order request.

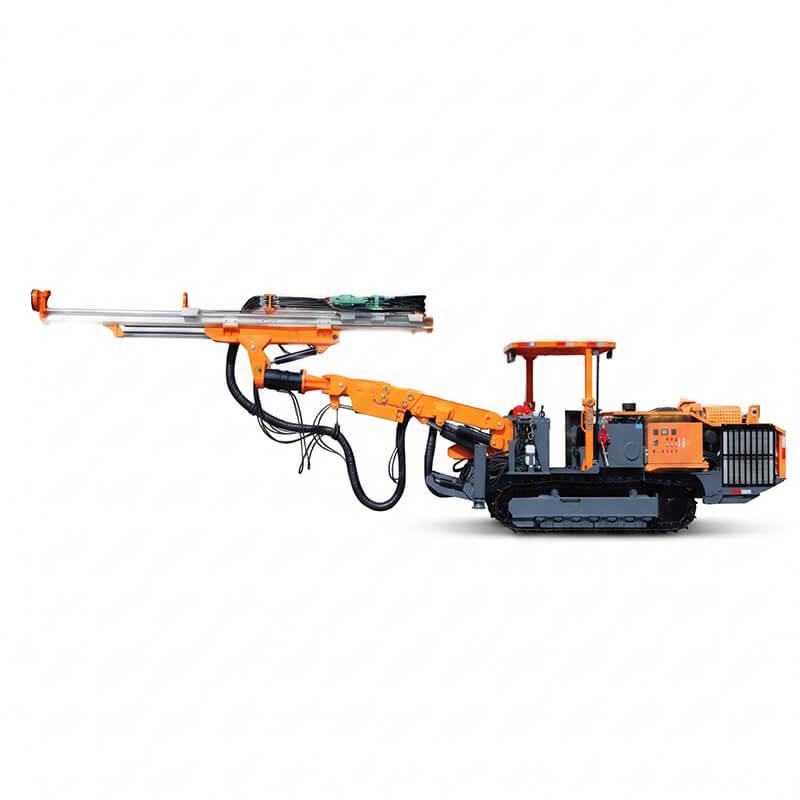

The Kaishan KJ310 hydraulic underground mining jumbo is purpose-built for medium-to-large hard rock tunneling and mining development across 12–35 m² cross-sections:

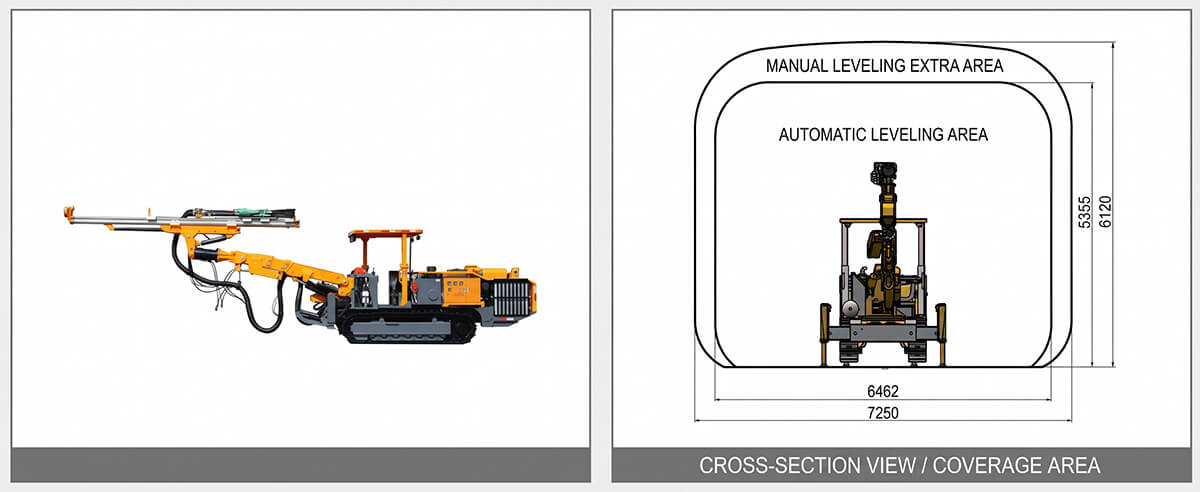

The KJ310 is engineered for hard rock tunnel cross-sections between 12 m² and 35 m², with automatic hydraulic self-leveling coverage of 6462 mm width × 5355 mm height and extended manual leveling coverage of 7250 mm width × 6120 mm height.
The KJ310 is a heavier 13,500 kg crawler/carrier class jumbo designed for larger 12–35 m² headings, equipped as standard with a 75 kW electric-hydraulic power unit, a 4 kW (5.8 m³/h) water pump, 20° climbing capability, ±10° rear axle oscillation, and the heavy-duty K 26F self-leveling boom.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, custom site voltage configurations, and complete genuine maintenance kits (HC50/HC95/YYG drifter seals, shank adapters, R38/T38 rods, and hydraulic filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
