Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

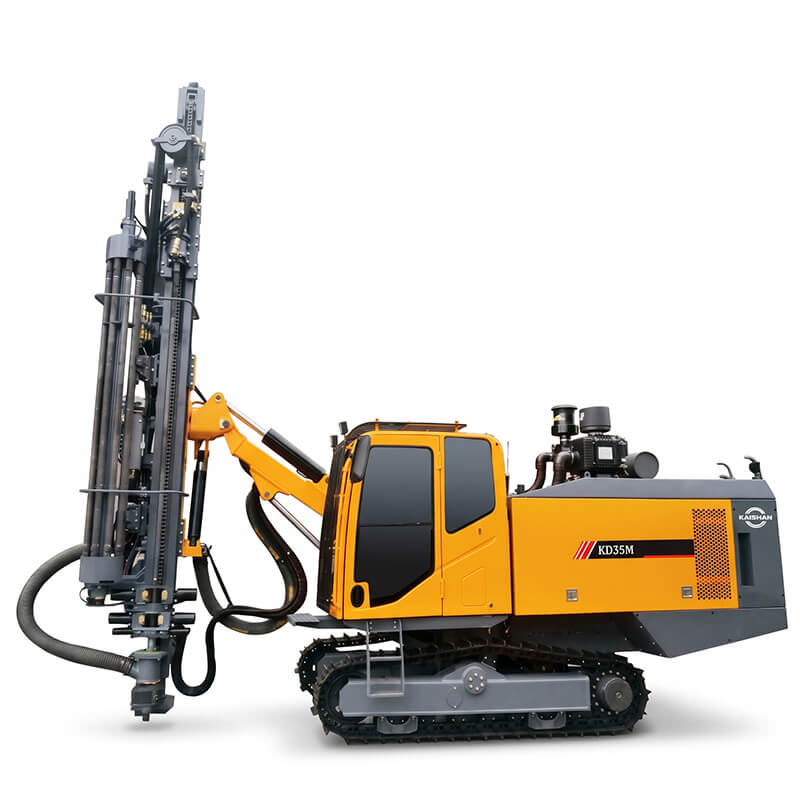

Combines the DTH percussion rock drilling system and an onboard screw air compressor (12 m³/min @ 15 bar / 218 psi) onto a single self-propelled crawler chassis. Driven by a single 176 kW (240 HP) Yuchai YCA07240 diesel engine via the rear flywheel and PTO outputs, it eliminates the need to tow a trailer compressor, reduces jobsite fuel burn by up to 25%, and avoids trailing air-hose hazards.

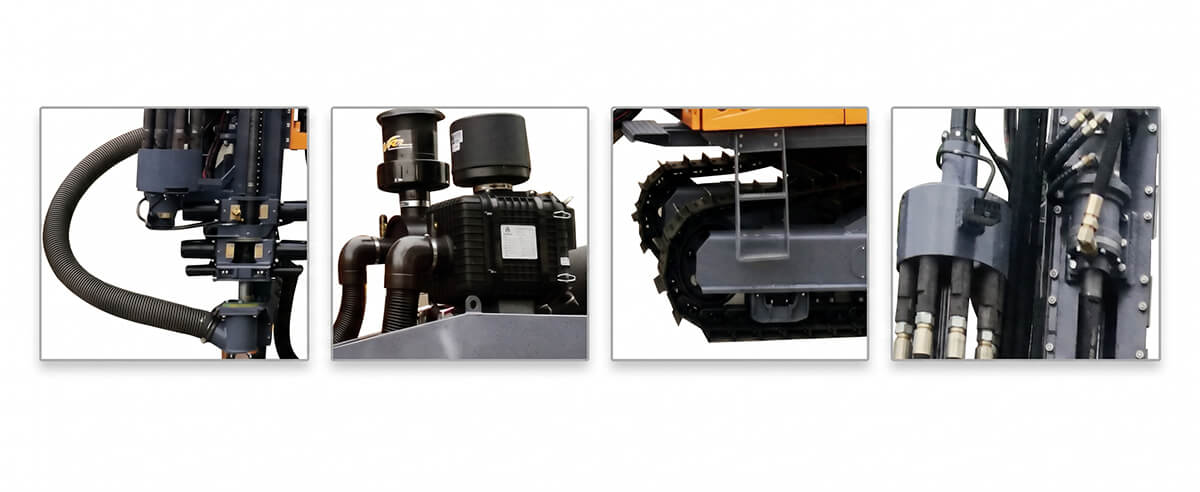

Equipped with an automated 7+1 drill rod carousel, floating slide module, and automatic thread lubrication for single-operator deep drilling down to 24 meters with Φ64 × 3,000 mm rods. The automatic electro-hydraulic anti-jamming system continuously monitors rotation and feed pressure and automatically retracts to prevent tools from getting stuck in fractured rock formations.
Features an enclosed, climate-controlled operator cabin certified to international ROPS & FOPS safety standards with low interior noise below 85 dB(A) and hydraulic pilot joysticks. Built on a 13,800 kg heavy-duty crawler undercarriage with 120 kN traction, 430 mm ground clearance, and ±10° track leveling for steady gradeability on 25° quarry slopes.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD35M Specification |
|---|---|
| Transport dimensions (L×W×H) | 8850×2180×2830 mm |
| Weight | 13800 kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-105 mm |
| Ground clearance | 430 mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Traction | 120 kN |
| Rotary torque (Max) | 1680 N·m (Max) |
| Rotation speed | 0-120 rpm |
| Lifting angle of drill boom | Up 47°, down 20° |
| Swing angle of drill boom | Left 21°, right 50° |
| Swing angle of carriage | Left 95°, right 35° |
| Tilt angle of beam | 114° |
| Compensation stroke | 900 mm |
| Rotation Head stroke | 3490 mm |
| Maximum propelling force | 32 kN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 24 m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64 × 3000 mm |
| DTH hammer | 3" |
| Engine | Yuchai YCA07240-T300 |
| Rated power | 176 kW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | 12 m³/min / 15 bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meets the requirements of ROPS & FOPS |
| Indoor noise | Below 85 dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio |
A: The KD35M upgrades to a fully enclosed, air-conditioned ROPS & FOPS certified safety cabin (<85 dB(A)), adds a mechanized 7+1 automatic carousel rod changer with floating slide and thread lubrication, incorporates automatic electro-hydraulic anti-jamming control, upgrades engine power to 176 kW (vs. 162 kW on KD35E), increases propelling force to 32 kN, and raises machine weight to 13,800 kg for heavy-duty stability.
A: No. The KD35M is a 100% self-contained integrated crawler drill rig. Its 176 kW Yuchai diesel engine simultaneously drives the onboard 15-bar screw air compressor (12 m³/min) via the rear flywheel and the hydraulic transmission system via the PTO port, operating autonomously with zero trailing air hoses.
A: Yes. The heavy articulated drill boom provides versatile multi-angle positioning: boom lifting from up to 47° to down to 20°, boom swing from left 21° to right 50°, carriage swing from left 95° to right 35°, and a 114° beam tilt angle, enabling efficient vertical, inclined pre-split, and horizontal toe-hole drilling.
