Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

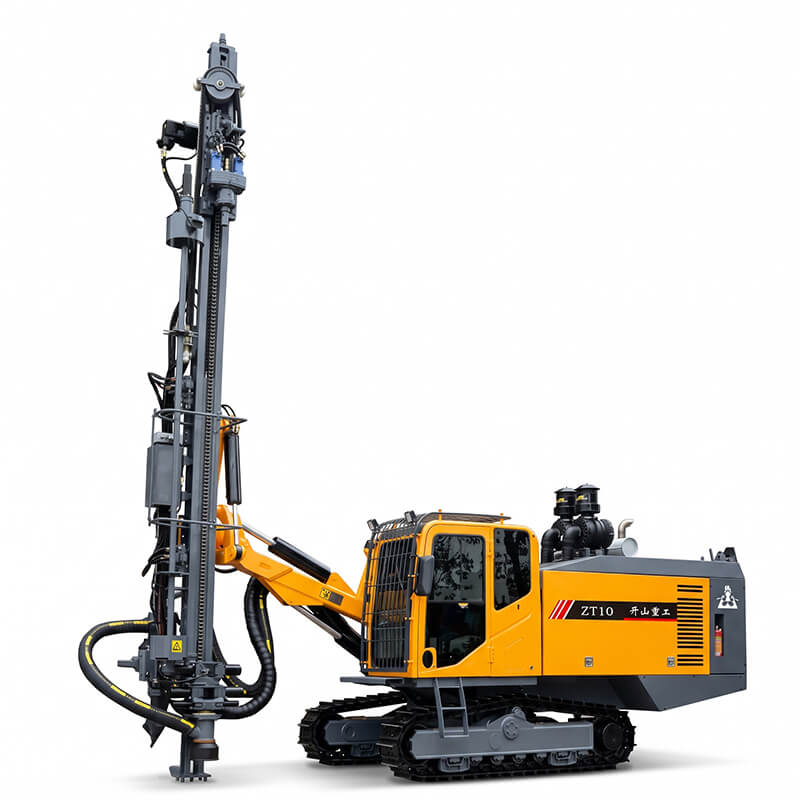

Combines the heavy DTH rock drilling system and an onboard two-stage screw compressor (18 m³/min @ 17 bar / 246 psi) onto a single crawler chassis. Powered by a single 228 kW Yuchai YC6L310 non-road diesel engine driving both compressor and hydraulics via flywheel and PTO outputs, it eliminates trailing air hoses and cuts jobsite diesel fuel burn by up to 25%.
Features an automated 7+1 drill rod carousel, floating slide carriage, and automatic thread lubrication module, enabling single-operator deep drilling down to 32 meters. The electro-hydraulic anti-jamming system continuously monitors rotational torque and feed pressure, automatically retracting to prevent stuck tools in fractured rock.
Outfitted with an enclosed, climate-controlled safety cabin meeting international ROPS & FOPS certifications with low interior noise below 85 dB(A). The 15,000 kg heavy-duty chassis features 430 mm ground clearance and ±10° track oscillation, delivering steady gradeability on 25° quarry slopes.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | ZT10 Specification |
|---|---|
| Transport dimensions (L×W×H) | 9300×2400×3300/3600 mm |
| Weight | 15000 kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-130 mm |
| Ground clearance | 430 mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Traction | 120 kN |
| Rotary torque (Max) | 2800 N·m (Max) |
| Rotation speed | 0-120 rpm |
| Lifting angle of drill boom | Up 47°, down 20° |
| Swing angle of drill boom | Left 21°, right 50° |
| Swing angle of carriage | Left 35°, right 95° |
| Tilt angle of beam | 114° |
| Compensation stroke | 1353 mm |
| Rotation Head stroke | 4490 mm |
| Maximum propelling force | 32 kN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 32 m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64 / Φ76 × 4000 mm |
| DTH hammer | 3", 4" |
| Engine | Yuchai YC6L310-H300 |
| Rated power | 228 kW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | 18 m³/min / 17 bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meets the requirements of ROPS & FOPS |
| Indoor noise | Below 85 dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard heating and cooling |
| Entertainment | Radio |
A: The ZT10 consolidates the drill crawler and a 17-bar two-stage screw compressor onto one unified chassis driven by a single 228 kW engine. This eliminates the purchase and maintenance of a separate compressor, saves 20%–25% in diesel fuel burn, cuts crew requirements from two workers to one, and completely avoids hazardous trailing air hose bursts.
A: Yes. The heavy-duty articulated drill boom offers extensive angular positioning: up 47° to down 20° lifting, left 21° to right 50° swing, carriage swing from left 35° to right 95°, and a 114° beam tilt angle, allowing versatile vertical, angled, and horizontal borehole operations.
