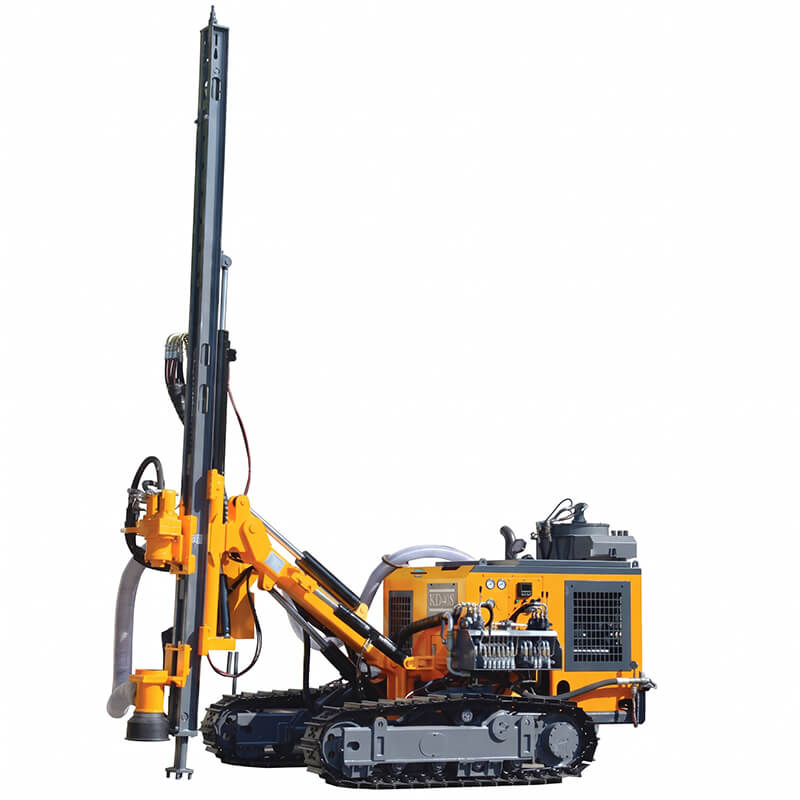

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

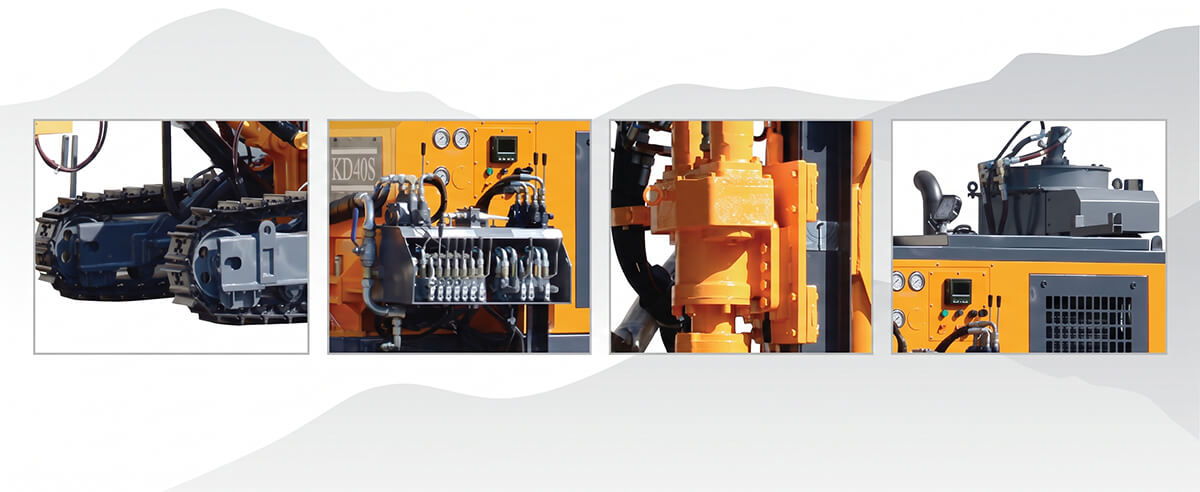

Equipped with a certified four-cylinder Yuchai non-road diesel engine (58 kW / 78 HP @ 2,200 rpm) meeting strict emission standards. Features an upgraded folding-frame crawler chassis with plunger piston tramming motors and newly added ±10° track leveling cylinders, delivering enhanced ground traction and ≤30° climbing gradeability on rugged quarry benches.
Reinforced with an enlarged lifting cylinder and heavy-duty leaf chain, increasing pull-up capacity to 25 kN with 2,000 N·m rotary torque and higher rotation speeds (0–140 rpm). Accommodates both Φ64 mm and Φ76 mm drill pipes with 3″ and 4″ DTH hammers, extending the hole diameter range to 130 mm and the depth to 25 meters.
Enlarged pitch and lifting cylinders provide 185° total beam tilt (down 135°, up 50°) and 145° beam swing, allowing versatile vertical, inclined, and low horizontal toe-hole blast drilling (min height: 350 mm; max: 2,750 mm). Built with thickened housing profiles, hoisting rings, and an onboard cyclonic dust collector (QZA-90 / QZA-120).
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD40S Specification |
|---|---|
| Model of drill rig | KD40S |
| Weight of complete machine | 4350 kg |
| Outer dimensions | 5600×2450×2350 mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ90-130 mm |
| Depth of economical drilling | 25 m |
| Rotary speed | 0-140 rpm |
| Rotary torque (Max) | 2000 N·m (Max) |
| Lifting force | 25 kN |
| Method of Feed | Oil cylinder + leaf chain |
| Feed stroke | 3780 mm |
| Travelling speed | 0-2.5 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 280 mm |
| Tilt angle of beam | Down: 135°, up: 50°, total: 185° |
| Swing angle of beam | Left: 100°, right: 45°, total: 145° |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° |
| Swing angle of drill boom | Left: 44°, right: 45°, total: 89° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 900 mm |
| Supporting power | Yuchai YC4DK80-T302 (58 kW / 2200 rpm) |
| DTH hammer | 3", 4" |
| Drilling rod | Φ64×3m or Φ76×3m |
| Air consumption | 10-17 m³/min |
| Maximum height of horizontal hole | 2750 mm |
| Minimum height of horizontal hole | 350 mm |
| Dust collector | Standard: QZA-90 (8 filter elements) / Optional: QZA-120 (12 filter elements) |
*Note: When the hole diameter of the dust collector exceeds 90mm, the dust collector must be upgraded and enlarged.

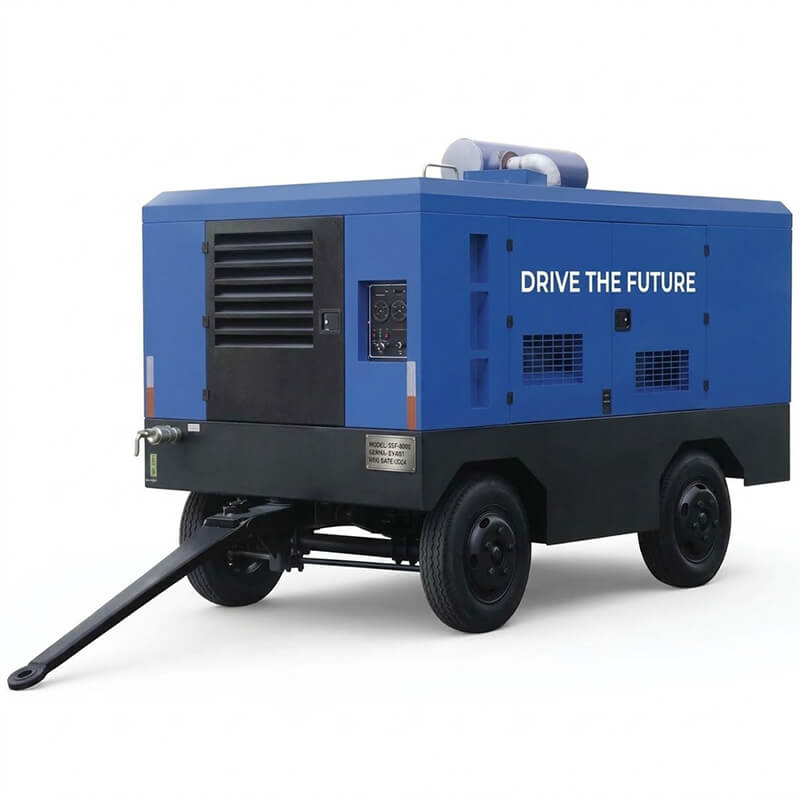

Diesel Engine Portable Screw Air Compressor Options:
*Note: Air compressor selection is subject to target borehole diameter and jobsite air supply hose length.
A: The KD40S adds ±10° hydraulic track leveling cylinders for enhanced terrain stability, increases lifting pull force from 18 kN to 25 kN, raises rotary speed from 120 rpm to 140 rpm, expands hole diameter up to 130 mm (compatible with both 3" and 4" hammers as well as Φ64/Φ76 mm rods), and narrows machine transport width to 2,450 mm for better mobility.
A: Depending on hole diameter and air hose distance, we recommend pairing the KD40S with Kaishan portable diesel screw air compressors such as the KP450-14 CU (14 bar), KM570-12/15 YC (12/15 bar), or KP650-15/18 YC (15/18 bar) for optimal penetration rates.
A: Yes. The KD40S wide-angle boom supports horizontal drilling down to a minimum height of 350 mm and up to 2,750 mm, providing complete coverage for quarry floor toe blasting without leaving dangerous toe overhangs.
