Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

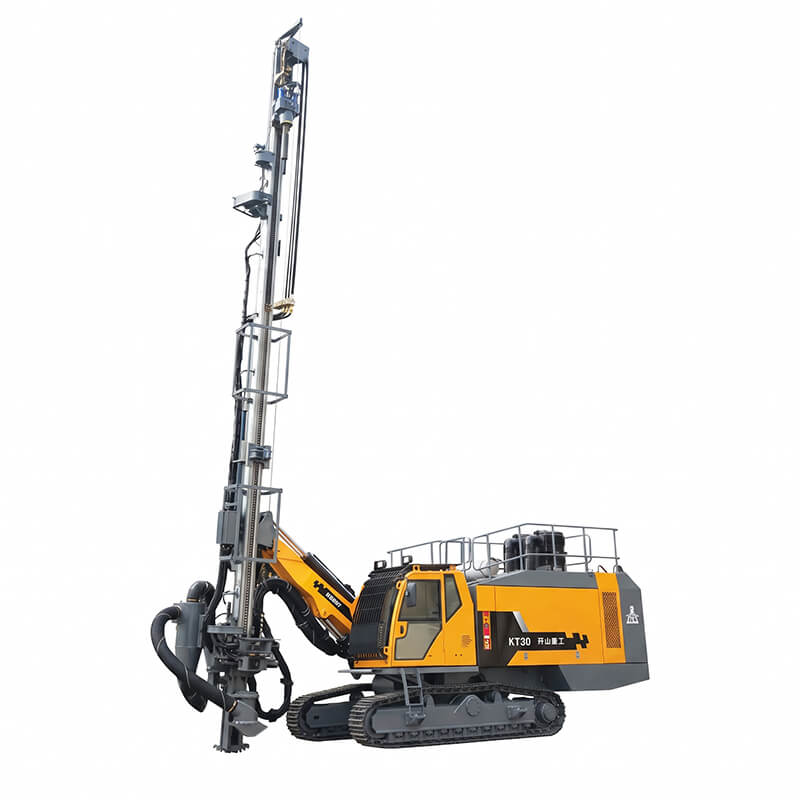

Combines heavy DTH mining percussion drilling with an onboard giant two-stage screw air compressor (39 m³/min @ 25 bar / 363 psi) on a single crawler platform. Driven by a 563 kW (755 HP) Cummins QSM15 diesel engine via dual-terminal outputs, it eliminates trailing air hoses and cuts quarry diesel fuel burn by up to 25%.
Engineered for large 195–254 mm (up to 10-inch) blast holes, featuring an aluminum guide rail with a 9,550 mm feed stroke for Φ140 × 9,000 mm long drill rods, drastically reducing pipe changes. Delivering 6,100 N·m rotary torque and 70 kN feed thrust, it powers 8-inch (K8) DTH hammers with real-time digital angle and depth monitoring.
Governed by an advanced all-electric control system offering high sensitivity and effortless joystick operation inside a climate-controlled FOPS & ROPS safety cabin. Built on a reinforced 33,930 kg crawler undercarriage with 430 mm ground clearance and ±10° frame leveling for 25° gradeability across ultra-large open-pit mines.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KT30 Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 195-254 mm |
| Depth of economical drilling (depth of automatic extension rod) | 27 m |
| Travelling speed | 3.0 Km/h |
| Climbing capacity | 25° |
| Ground clearance | 430 mm |
| Power of complete machine | 563 Kw |
| Diesel engine | Cummins QSM15 77C |
| Screw compressor | Two stage compression 39 m³/min / 25 bar |
| Outer dimensions (L×W×H) | 14300×3000×4100 mm |
| Weight | 33930 Kg |
| Revolving speed of gyrator | 0-100 / 0-150 r/min |
| Rotary torque | 6100 N·m |
| Maximum Feed force | 70 KN |
| Tilt angle of beam | 132° |
| Swing angle of carriage | Right 37°, left 37° |
| Swing angle of drill boom | Right 29°, left 17° |
| Lifting angle of drill boom | Up 55°, down 13° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1800 mm |
| Method of propulsion | Motor + roller chain |
| Feed stroke | 9550 mm |
| DTH hammer | k8 / 8'' |
| Drilling rod (Φ× length of drilling rod) | Φ140 × 9000 mm |
| Drilling rod (number of rods) | 2+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow) / wet (optional) |
| Method of extension rod | Semi-automatic rod handling |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of thread of drilling rod | Equipped with a floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS & ROPS |
A: The KT30 is Kaishan's ultimate heavy-duty flagship model, upgrading engine output to 563 kW / 755 HP (vs. 372 kW on KT25), boosting screw compressor delivery to 39 m³/min @ 25 bar (vs. 31 m³/min @ 25 bar), expanding maximum hole diameter to 254 mm / 10 inches (vs. 203 mm), increasing maximum feed force to 70 kN (vs. 65 kN), utilizing 9-meter long Φ140 mm rods with a 9,550 mm stroke to minimize rod changes, and increasing machine weight to 33,930 kg for maximum operational stability.
A: The entire machine is governed by an advanced electro-hydraulic system featuring proportional pilot joysticks and automated anti-sticking valves. This reduces operator physical fatigue, improves control responsiveness, and automatically regulates feed and rotation parameters when crossing variable rock strata.
A: No. The KT30 is 100% self-contained. The 563 kW Cummins diesel engine powers all hydraulic positioning, feed, and tramming systems while directly driving the onboard 25-bar two-stage screw compressor, operating completely autonomously with zero trailing air hoses.
