Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Powered by a single Cummins QSM15 77C diesel engine (563 kW), with a dual-end output design that simultaneously drives the onboard two-stage screw air compressor (39 m³/min at 25 bar) and the hydraulic transmission system for large-aperture 195–254 mm blast-hole drilling.
Features a precision aluminum guide rail (9550 mm feed stroke) for superior hole straightness and 2+1 semi-automatic handling of Φ140×9000 mm long drill rods to minimize rod-changing downtime, supported by floating joint thread protection, automatic oil injection lubrication, and electro-hydraulic anti-sticking control.
Governed by a high-sensitivity, labor-saving full-electric control system inside a certified FOPS & ROPS air-conditioned cab with real-time drilling angle and depth display, paired with a hydraulic cyclonic laminar-flow dry dust collector (with optional wet dust removal).
| Parameter / Item | KD85 Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 195-254 mm |
| Depth of economical drilling (depth of automatic extension rod) | 27m |
| Travelling speed | 3.0 Km/h |
| Climbing capacity | 25° |
| Ground clearance | 430 mm |
| Power of complete machine | 563 Kw |
| Diesel engine | Cummins QSM15 77C |
| Screw compressor | Two stage compression 39 m³/min/25 bar |
| Outer dimensions (L×W×H) | 14300×3000×4100 mm |
| Weight | 33930 Kg |
| Revolving speed of gyrator | 0-100/0-150 r/min |
| Rotary torque | 6100 N·m |
| Maximum Feed force | 70 KN |
| Tilt angle of beam | 132° |
| Swing angle of carriage | Right 37°, left 37° |
| Swing angle of drill boom | Right 29°, left 17° |
| Lifting angle of drill boom | Up 55°, down 13° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1800 mm |
| Method of propulsion | Motor+roller chain |
| Feed stroke | 9550 mm |
| DTH hammer | k8/8″ |
| Drilling rod (ϕ× length of drilling rod) | Φ140×9000 mm |
| Drilling rod | 2+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow)/wet (optional) |
| Method of extension rod | Semi-automatic rod handling |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of the thread of the drilling rod | Equipped with the floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS&ROPS |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, optional wet dust removal systems, and export-compliant diesel emission packages are available upon request for bulk orders.

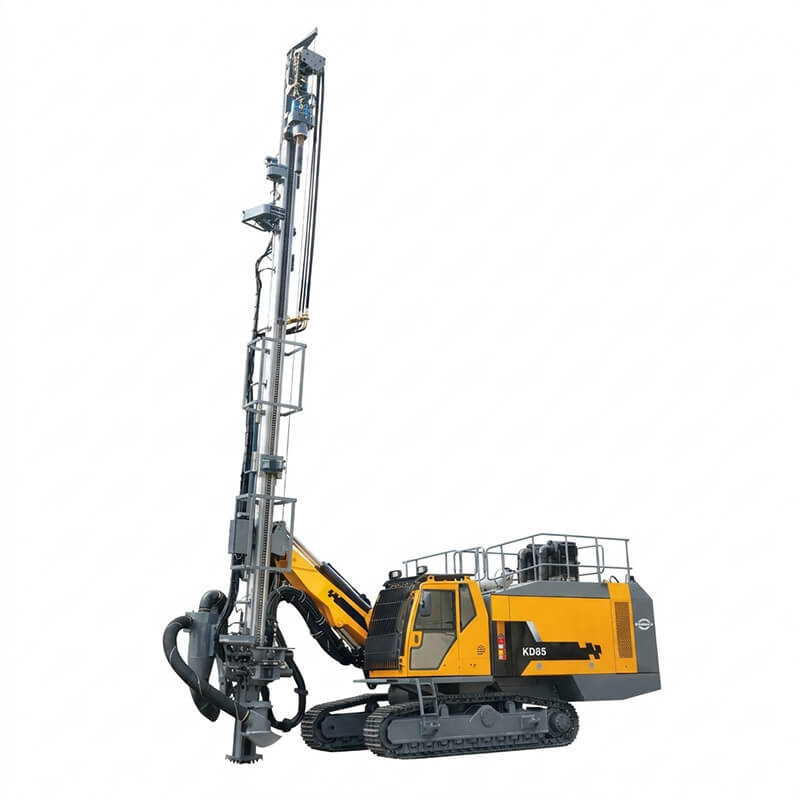

The Kaishan KD85 integrated surface DTH drilling rig is purpose-built for large-aperture bench blasting and pre-splitting operations across large-scale surface mines and heavy stonework projects:
The KD85 uses an extended 9550 mm aluminum guide rail and a 2+1 semi-automatic rod-handling system for heavy-duty Φ140×9000 mm drill rods, enabling 27 m of economical drilling depth with far fewer rod connections and superior hole straightness.
No. The KD85 integrates a high-capacity, two-stage screw air compressor that delivers 39 m³/min at 25 bar, powered directly by the 563 kW Cummins QSM15 77C diesel engine's dual-end output.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, OEM/ODM customization, and complete genuine maintenance kits (k8/8″ DTH hammers, Φ140×9000 mm drill rods, and Cummins/air-end filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
