Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

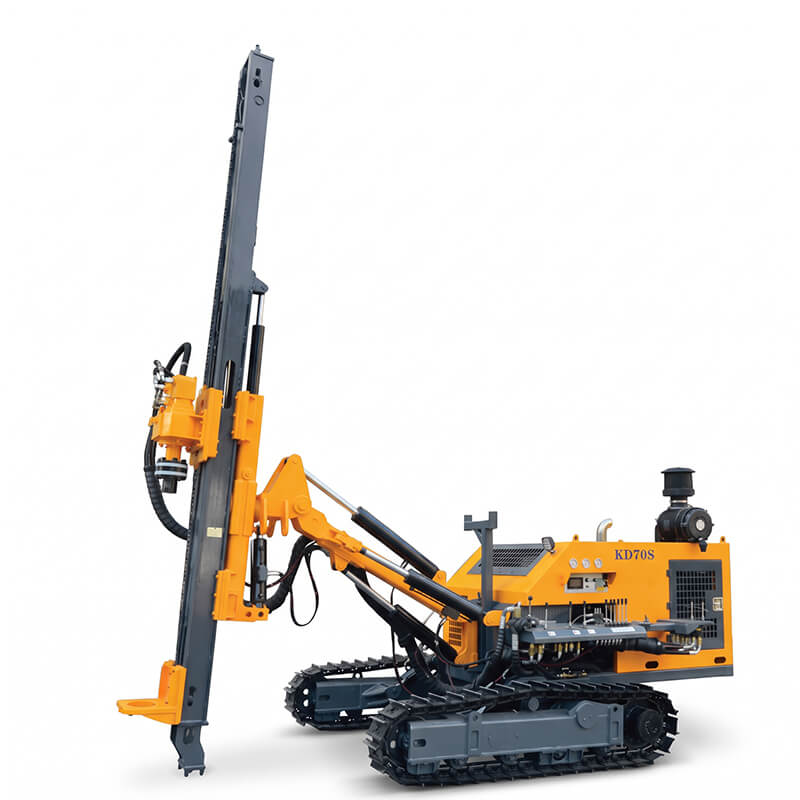

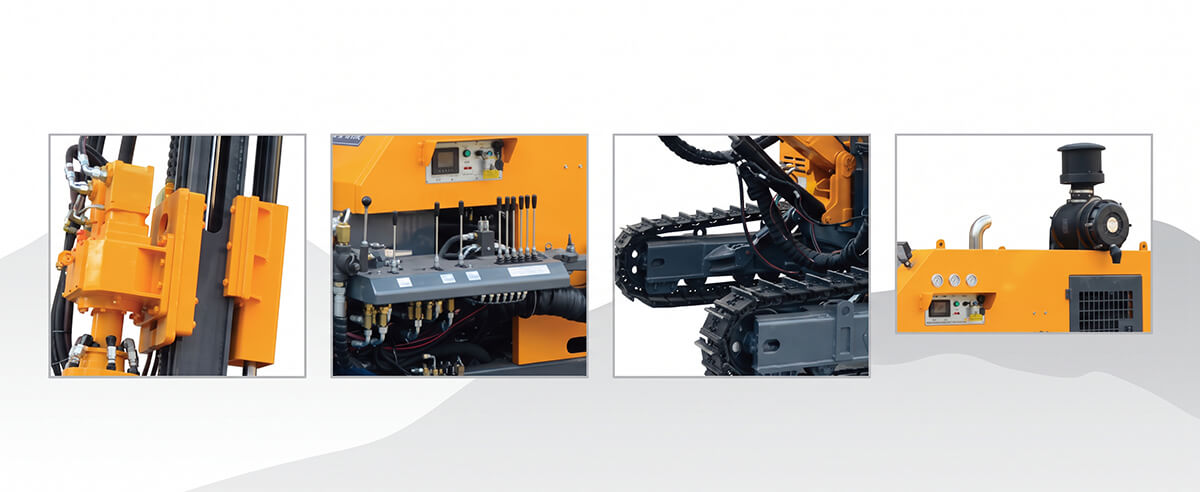

Features a high-reduction-ratio dual-motor rotary head delivering over 3,500 N·m torque, paired with an oil cylinder and heavy 20A roller chain providing 40 kN pull-up lifting force. The feed beam is fitted with high wear-resistant nylon anti-wear press plates, effortlessly driving 4–6 inch DTH hammers across large 115–203 mm solar pile foundation boreholes.
Powered by a high-efficiency four-cylinder Yuchai DKC2G3 diesel engine (73.5 kW / 98 HP @ 2,200 rpm) driving high-strength, large-displacement cast iron gear pumps. Built on a folding-frame crawler chassis with reinforced plunger piston tramming motors and ±10° hydraulic track leveling for steady ≤30° gradeability across steep mountain solar farms.
Equipped with an integrated digital controller for real-time monitoring of operational drilling parameters. The heavy articulated boom delivers wide coverage with 165° beam tilt (down 130°, up 35°) and a 900 mm compensation stroke, providing excellent positioning agility for photovoltaic piling and quarry bench blasting.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD70S Specification |
|---|---|
| Model of drill rig | KD70S |
| Weight of complete machine | 5500 kg |
| Outer dimensions | 6250×2260×2600 mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ115-203 mm |
| Rotary speed | 0-110 rpm |
| Rotary torque (Max) | ≥3500 N·m |
| Lifting force | 40 kN |
| Method of Feed | Oil cylinder + 20A roller chain |
| Feed stroke | 3475 mm |
| Travelling speed | 0-2.5 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 325 mm |
| Tilt angle of beam | Down: 130°, up: 35°, total: 165° |
| Swing angle of beam | Left: 45°, right: 45°, total: 90° |
| Pitch angle of drill boom | Down: 50°, up: 15°, total: 65° |
| Swing angle of drill boom | Left: 42°, right: 38°, total: 80° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 900 mm |
| Air pressure for work | 1.0-2.4 MPa |
| Supporting power | Yuchai DKC2G3 (73.5 kW / 2200 rpm) |
| DTH hammer | 4-6" |
| Drilling rod | Φ76 × 2000 mm |
| Air consumption | 15-26 m³/min |

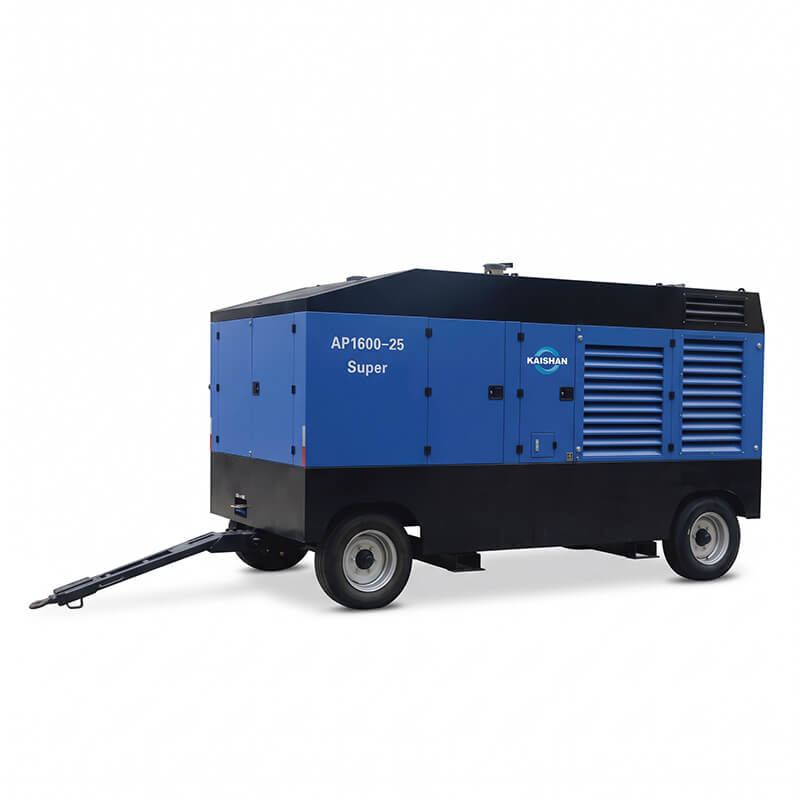

Diesel Engine Portable Screw Air Compressor Option:
*Note: Air compressor selection is subject to target borehole diameter and jobsite air supply hose length.
A: Solar farm installations frequently encounter uneven mountain terrain and hard bedrock where standard pile drivers fail. The KD70S provides large hole capability (115–203 mm), high torque (≥3,500 N·m), ±10° track leveling, and steep ≤30° climbing ability, allowing rapid pilot hole drilling for post-driven or cast-in-place solar piles on rocky slopes.
A: The KD70S requires an external air supply of 15–26 m³/min at 1.0–2.4 MPa working pressure. We recommend pairing it with the Kaishan KP825-18/21 YC portable diesel screw air compressor (18/21 bar) for optimum penetration and hole flushing speed in 115–203 mm holes.
A: The KD70S is configured for Φ76 mm × 2,000 mm friction-welded drill pipes and 4-inch to 6-inch high-pressure DTH hammers, offering high rock penetration rates across hardness ratings from f=6 up to f=20.
