Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

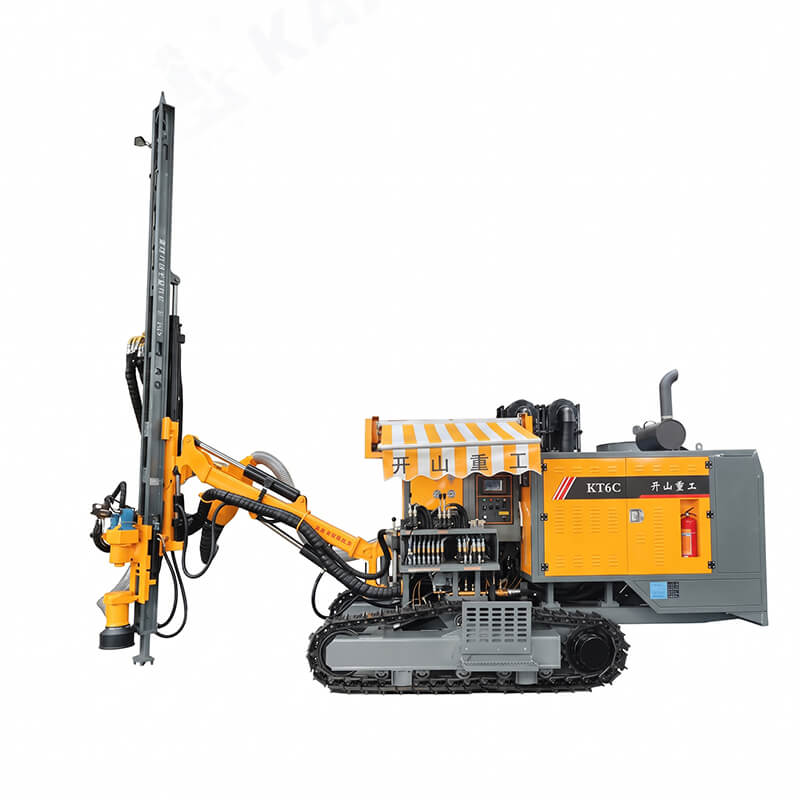

Integrates a heavy-duty two-stage rotary screw compressor delivering an upgraded 15 m³/min at 18 bar (261 psi). Powered by a single 162 kW Yuchai 6-cylinder diesel engine, it provides higher air flushing velocity for ⌀90–127 mm holes while cutting total fuel consumption by up to 30%.

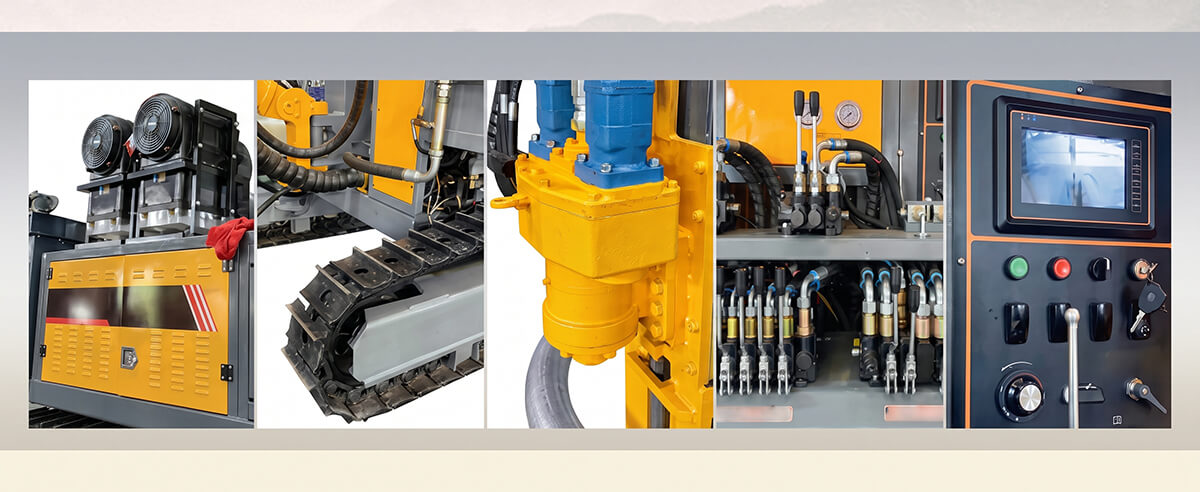

Upgraded hydraulic rotation gearbox delivers 2,000 N·m maximum torque at 0–120 rpm, paired with 25,000 N push-pull force. Provides robust anti-jamming torque to penetrate through fractured rock and complex geological formations (f=6–20).
Features dual-speed crawler travel (2.5 km/h low-speed working mode / 4.0 km/h high-speed relocation mode) with 330 mm ground clearance and ±10° hydraulic frame levelling, allowing rapid repositioning between quarry benches and 25° hill climbing.
Equipped with an onboard dry cyclonic laminar flow dust extraction system. Captures cuttings and respirable silica dust directly at the borehole collar, providing clear operator visibility and complying with green quarry standards.
| Parameter | KT6C Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 90-127 mm |
| Depth of economical drilling | 20 m |
| Travelling speed | 2.5/4 km/h (Dual speed) |
| Climbing capacity | ≤25° |
| Ground clearance | 330 mm |
| Power of complete machine | 162 kW |
| Diesel engine | Yuchai YC6J220-T300 |
| Screw compressor | Two-stage compression 15 m³/min / 18 bar |
| Outer dimensions (L×W×H) | 7900×2390×2620 mm |
| Weight | 7700 kg |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque (Max) | 2000 N·m (Max) |
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 50°, down 25° |
| Tilt angle of beam | 125° |
| Swing angle of carriage | left 39°, Right 40° |
| Swing angle of drill boom | left 44°, Right 39° |
| Levelling angle of frame | Up 10°, down 10° |
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
| DTH hammer | 3" |
| Drilling rod | Φ64×3000 mm |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
A: The KT6C upgrades the onboard two-stage compressor capacity to 15 m³/min @ 18 bar (versus 12 m³/min @ 15 bar on the KT5C), increases rotary torque to 2,000 N·m (versus 1,680 N·m), expands hole diameter to 127 mm, and features dual-speed tramming (2.5 / 4.0 km/h) for faster relocation.
A: No. The KT6C is completely autonomous. The 162 kW Yuchai diesel engine powers the hydraulic drilling and positioning systems while directly driving the onboard 18-bar two-stage screw air compressor, operating with zero trailing hoses.
