Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

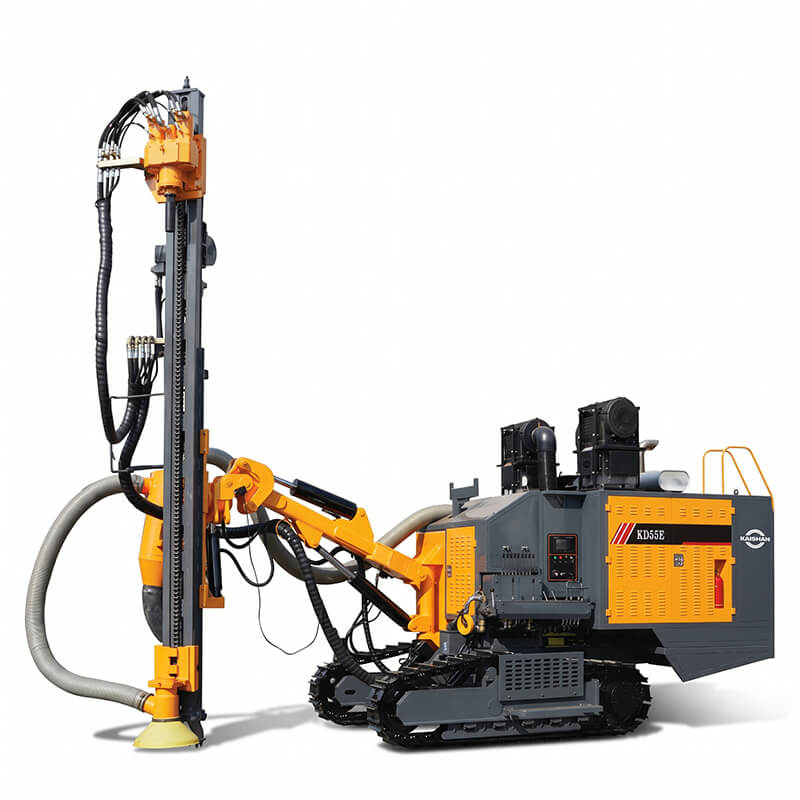

Combines heavy DTH percussion rock drilling and an onboard two-stage screw air compressor (20 m³/min @ 22 bar / 319 psi) onto a single self-propelled crawler chassis. Powered by a massive 295 kW (400 HP) Yuchai YCK09400 diesel engine, it eliminates trailer compressor towing, cuts jobsite fuel burn by up to 25%, and avoids trailing air-hose hazards.
Equipped with a reinforced high-torque rotary head delivering 4,000 N·m maximum torque and 25 kN push-pull thrust, optimised for 4" and 5" DTH hammers in large 115–165 mm blast holes. Features an extended 4,010 mm one-time advance stroke, accommodating Φ76 mm and heavy Φ89 mm drill pipes, for faster penetration to 25 meters.
Built on a reinforced 12,100 kg crawler undercarriage with 430 mm ground clearance and ±10° hydraulic frame levelling for stable tramming and drilling on ≤25° quarry benches. Equipped with an onboard hydraulic cyclonic laminar-flow dry dust collection system to capture over 99% of airborne rock fines directly at the hole collar.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD55E Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ115-165 mm |
| Depth of economical drilling | 25 m |
| Travelling speed | 2.5/3.5 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Power of complete machine | 295 kW / 1900 rpm |
| Diesel engine (choose) | Yuchai YCK09400-T300 |
| Screw compressor | Two stage compression 20 m³/min / 22 bar |
| Outer dimensions (L×W×H) | 8250×2300×3200 mm |
| Weight | 12100 kg |
| Rotation speed of gyrator | 0-100 rpm |
| Rotary torque (Max) | 4000 N·m (Max) |
| Maximum push-pull force | 25 kN |
| Lifting angle of drill boom | Up 47°, down 20° |
| Tilt angle of beam | 120° |
| Swing angle of carriage | Right 35°, left 95° |
| Swing angle of drill boom | Right 39°, left 34° |
| Levelling angle of frame | ±10° |
| One-time advance length | 4010 mm |
| Compensation length | 900 mm |
| DTH hammer | 4", 5" |
| Drilling rod | Φ76/Φ89×3000 mm |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
A: The KD55E is a significantly heavier class machine (12,100 kg vs. 10,000 kg), upgrading diesel engine power to 295 kW / 400 HP (vs. 191 kW), expanding screw compressor delivery to 20 m³/min @ 22 bar (vs. 17 m³/min @ 18 bar), boosting rotary torque to 4,000 N·m (vs. 2,800 N·m), extending borehole diameter up to 165 mm (vs. 146 mm), and lengthening single-pass advance stroke to 4,010 mm for heavy-duty 4" and 5" hammer drilling.
A: No. The KD55E is a 100% self-contained, integrated crawler drill rig with an onboard 22-bar, two-stage screw air compressor (20 m³/min) powered directly by its 295 kW Yuchai diesel engine, operating autonomously with no trailing air hoses.
A: The KD55E is factory-optimised for 4-inch and 5-inch high-pressure DTH hammers and Φ76 mm or heavy Φ89 mm × 3,000 mm friction-welded drill pipes, delivering exceptional energy transfer and penetration rates in hard rock formations up to f=20.
