Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Equipped with dual hydraulic rotation motors delivering an industry-leading 5,000 N·m rotary torque and an expanded lifting cylinder with a heavy roller chain providing 40 kN pull-up force. Effortlessly powers 4-inch DTH hammers and Φ76 mm drill pipes in large 90–152 mm boreholes down to 25 meters without drill string binding.

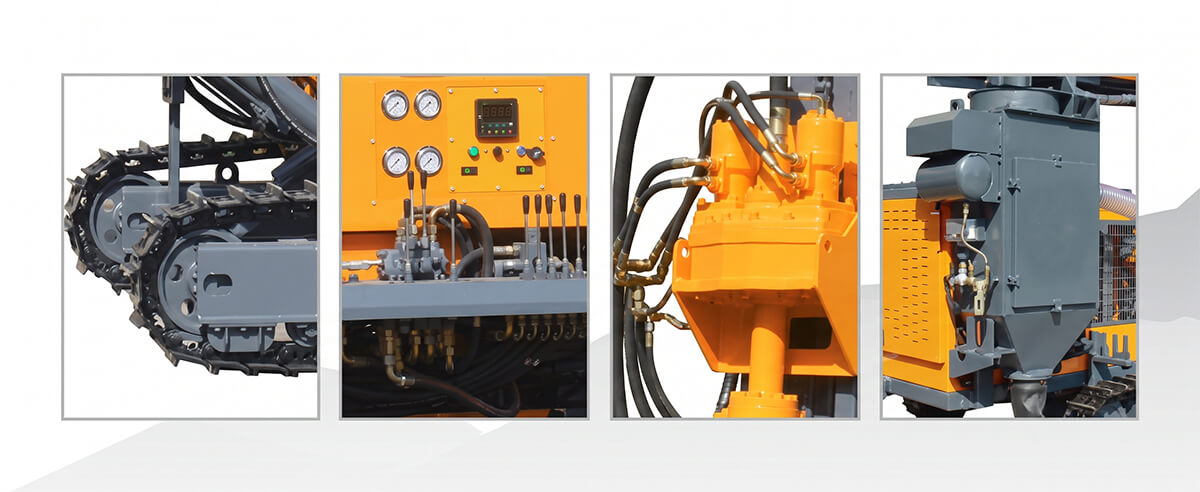

Powered by a certified Yuchai four-cylinder non-road diesel engine (options: 58 kW / 78 HP or 73 kW / 98 HP) meeting strict emission regulations. Features upgraded folding-frame tracks, a four-wheel-drive undercarriage, plunger piston tramming motors, and ±10° track-leveling cylinders for ≤30° climbing gradeability on steep benches.
Enlarged pitch and lifting cylinders provide wide angular reach with low horizontal toe-hole blast drilling (min height: 350 mm; max: 2,850 mm). Built with thickened structural housing profiles, hoisting rings, and an enlarged onboard cyclonic dust collector (standard QZA-120 12-filter or optional QZA-140 16-filter) for clean quarry operations.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD45S Specification |
|---|---|
| Model of drill rig | KD45S |
| Weight of complete machine | 5700 kg |
| Outer dimensions | 6300×2400×2700 mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ90-152 mm |
| Depth of economical drilling | 25 m |
| Rotary speed | 0-90 rpm |
| Rotary torque (Max) | 5000 N·m (Max) |
| Lifting force | 40 kN |
| Method of Feed | Oil cylinder + roller chain |
| Feed stroke | 3175 mm |
| Travelling speed | 0-2.5 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 290 mm |
| Tilt angle of beam | Down: 110°, up: 35°, total: 145° |
| Swing angle of beam | Left: 91°, right: 5°, total: 96° |
| Pitch angle of drill boom | Down: 55°, up: 15°, total: 70° |
| Swing angle of drill boom | Left: 32°, right: 32°, total: 64° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 970 mm |
| Supporting power | Yuchai YC4DK80-T302 (58 kW / 2200 rpm) / Yuchai YC4DK100-T304 (73 kW / 2200 rpm) |
| DTH hammer | 4" |
| Drilling rod | Φ76×2m + Φ76×3m |
| Air consumption | 13-20 m³/min |
| Maximum height of horizontal hole | 2850 mm |
| Minimum height of horizontal hole | 350 mm |
| Dust collector | Standard: QZA-120 (12 filter elements) / Optional: QZA-140 (16 filter elements) |
*Note: When the hole diameter of the dust collector exceeds 130mm, the dust collector must be upgraded and enlarged.

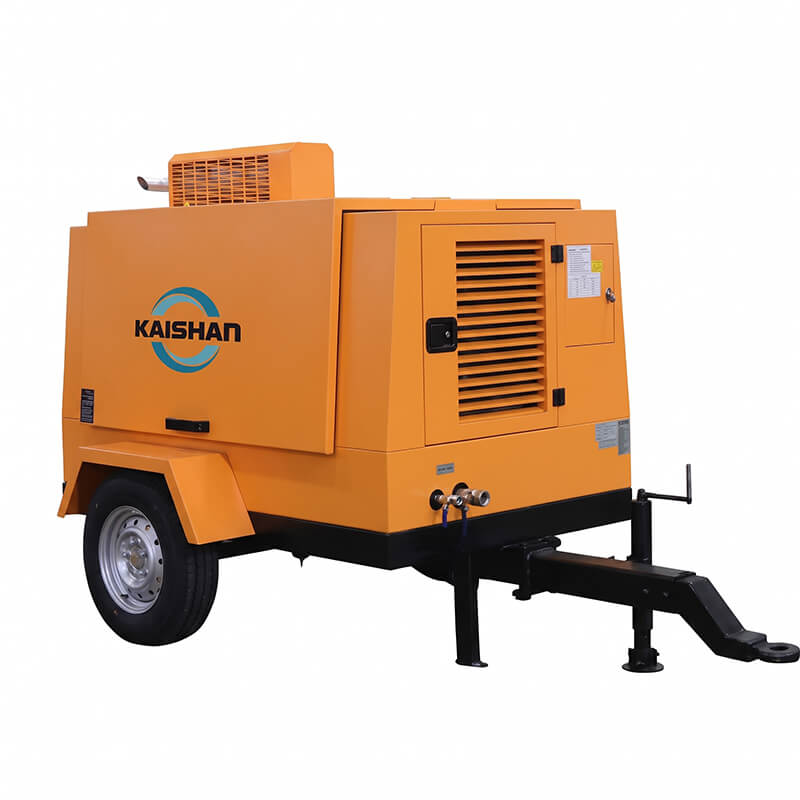

Diesel Engine Portable Screw Air Compressor Options:
*Note: Air compressor selection is subject to target borehole diameter and jobsite air supply hose length.
A: The KD45S upgrades to dual hydraulic rotation motors yielding 5,000 N·m rotary torque (vs. 2,000 N·m on KD40S), expands pull-up lifting force to 40 kN (vs. 25 kN), increases maximum drilling hole diameter to 152 mm (vs. 130 mm), upgrades diesel engine power up to 73 kW (vs. 58 kW), incorporates oil cylinder + roller chain feed, and increases machine operating weight to 5,700 kg for superior stability in hard rock.
A: To deliver air consumption of 13–20 m³/min, we recommend pairing the KD45S with Kaishan portable diesel screw air compressors such as the KM550-13 YC (13 bar), KM570-12/15 YC (12/15 bar), or KP400-18 YC (18 bar) depending on borehole diameter and altitude requirements.
A: Yes. The KD45S articulated boom supports horizontal drilling down to a minimum height of 350 mm and up to 2,850 mm, providing full coverage for quarry-floor toe blasting without leaving troublesome toe overhangs.
