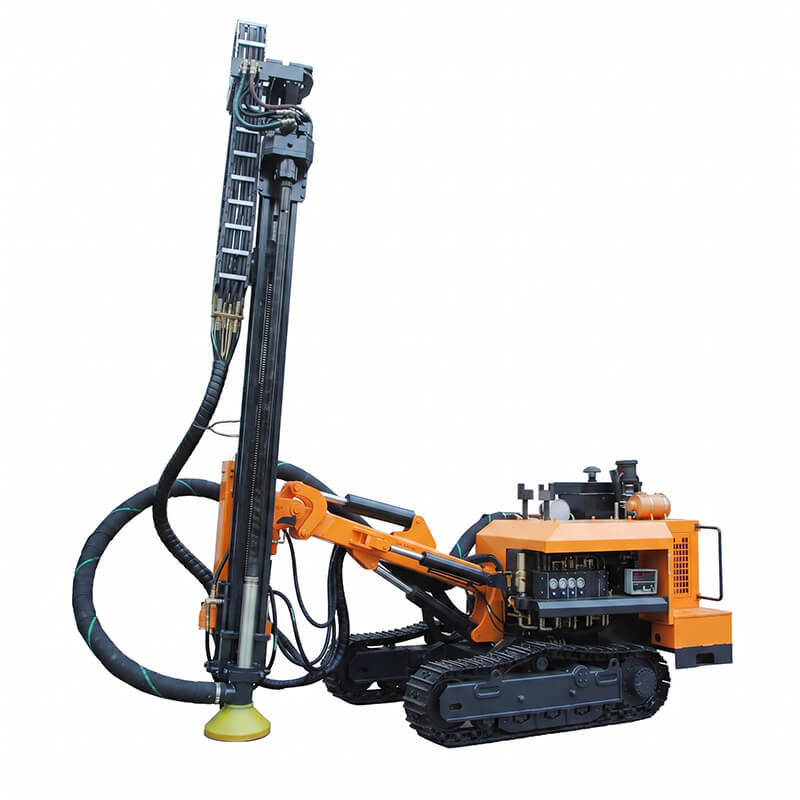

Engineering Advantages & Performance Highlights
1. Cummins High-Output Powertrain (92 kW)
Equipped with a turbocharged Cummins QSB3.9-C125 industrial diesel engine (92 kW / 2200 rpm), providing massive power reserve, low specific fuel consumption, and consistent penetration speed in tough rock up to f = 20.

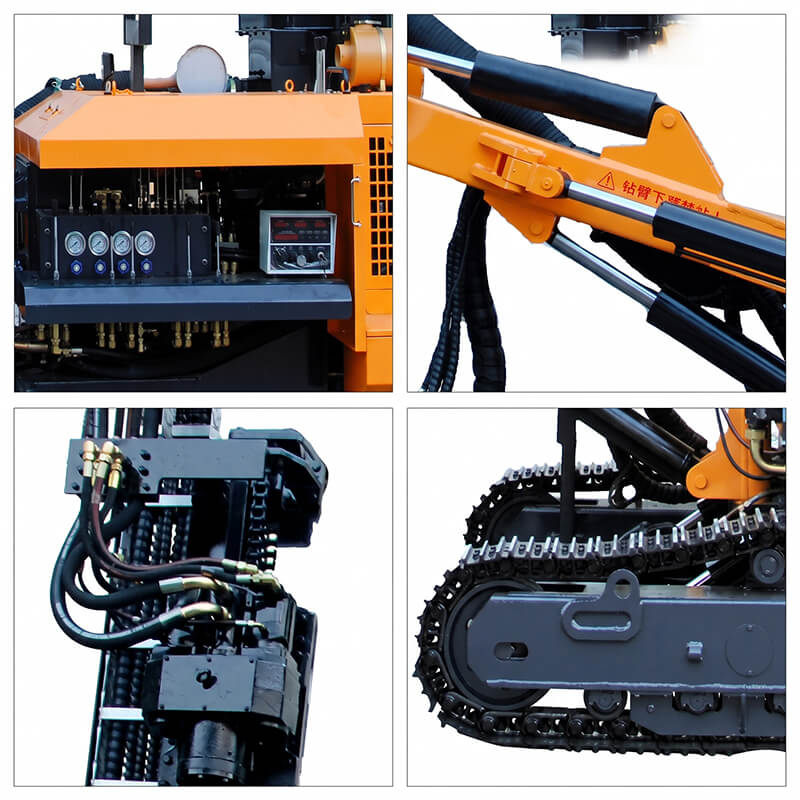

2. Double-Motor High-Torque Rotary Head
Dual hydraulic drive motors double the output rotary torque to 4500 N·m while maintaining smooth 0–110 rpm speed regulation. This prevents drill pipe stalling when drilling large-diameter holes (up to 202 mm).
3. Folding Frame Track with ±8° Self-Leveling
Heavy-duty steel crawler chassis features a folding frame structure and hydraulic track pitch leveling (±8°). Combined with 440 mm ground clearance, it keeps the drill mast vertical on steep slopes and uneven benches.
4. Heavy-Duty Feed Mechanism & Lifting Force
An expanded oil cylinder-leaf chain feed mechanism provides a 4010 mm long feed stroke and 25 kN lifting force, significantly speeding up 3-meter drill rod handling and deep-hole tool recovery.
5. Large Multi-Stage Dust Collection (KG610H)
The KG610H configuration integrates a heavy-duty cyclone/dry dust collection system to capture respirable silica dust at the hole collar, complying with strict international green mining regulations.
6. Reinforced Boom Articulation & Limiting Reach
Expanded boom pitch and heavy lift cylinders allow wide-angle articulation (beam tilt 185°, swing 80°). Minimum horizontal hole height reaches 900 mm and maximum reach extends to 2850 mm for versatile bench trimming.
Target Industrial Applications (Rock Hardness f = 6 – 20)
Engineered for continuous heavy-load operations across demanding open-pit mining and major infrastructure sites:
- Open-Pit Metal & Non-Metal Mining: Large-scale blast hole drilling in iron ore, copper, gold, coal, and limestone mines.
- Quarry & Aggregate Production: Heavy bench blasting, perimeter pre-splitting, and secondary boulder reduction.
- Major Civil Earthworks: Deep rock excavation for highways, railways, hydroelectric dams, and power station foundations.
- Geotechnical Engineering: High-wall slope reinforcement, rock bolting, and anchor cable hole drilling.
Technical Specifications: KG610 vs. KG610H
| Parameter | KG610 (Standard) | KG610H (With Dust Collector) |
|---|---|---|
| Operating Weight | 7,100 kg | 7,600 kg |
| Dimensions (L × W × H) | 6700 × 2250 × 2850 mm | 6700 × 2800 × 2850 mm |
| Drillable Rock Hardness | f = 6 – 20 | |
| Drilling Diameter | Φ105 – 202 mm | |
| Depth of Economical Drilling | 40 m | |
| Rotary Speed Range | 0 – 110 rpm | |
| Max Rotary Torque | 4500 N·m (Dual-Motor Drive) | |
| Lifting Force / Feed Stroke | 25 kN / 4010 mm | |
| Feed Mechanism | Oil cylinder – leaf chain | |
| Travelling Speed / Gradeability | 0 – 4.0 km/h / ≤ 30° | |
| Track Leveling Angle | ±8° (Folding frame track) | |
| Ground Clearance | 440 mm | |
| Guide Beam Tilt Angle | Down 135°, Up 50° (Total 185°) | |
| Guide Beam Swing Angle | Left 40°, Right 40° (Total 80°) | |
| Drill Boom Pitch Angle | Down 55°, Up 25° (Total 80°) | |
| Drill Boom Swing Angle | Left 45°, Right 45° (Total 90°) | |
| Guide Beam Compensation Length | 900 mm | |
| Engine Model & Power | Cummins QSB3.9-C125 (92 kW / 2200 rpm) | |
| Equipped DTH Hammer | K5 (5-Inch High Air Pressure Hammer) | |
| Drill Pipe Specification | Φ76 × 3000 mm / Φ89 × 3000 mm | |
| Recommended Air Consumption | 15 – 26 m³/min | |
| Horizontal Hole Height (Min / Max) | 900 mm / 2850 mm | |
| Dust Collection System | Optional / None | Standard High-Capacity Dry Dust Collector |
Frequently Asked Questions (FAQ)
What is the main difference between Kaishan KG610 and KG610H?
The primary difference is that the KG610H is factory-equipped with a high-capacity cyclone dry dust collection system and has an overall width of 2800 mm (weight: 7600 kg), whereas the standard KG610 does not include the dust collector and has a narrower width of 2250 mm (weight: 7100 kg).
What portable air compressor is recommended for the KG610/KG610H?
With an air consumption requirement of 15 to 26 m³/min and matching a K5 (5-inch) DTH hammer, we recommend pairing the KG610 series with a Kaishan portable diesel screw air compressor delivering 18–25 bar pressure and 18–24 m³/min flow (such as KSCY-550/18 or LGCY-22/20).
Can the KG610 drill horizontal and pre-split angle holes?
Yes. The rig features wide boom articulation with a beam tilt of 185° and boom swing of 90°, allowing horizontal hole drilling at heights between 900 mm and 2850 mm, as well as inclined angle drilling for pre-split blasting.
