Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

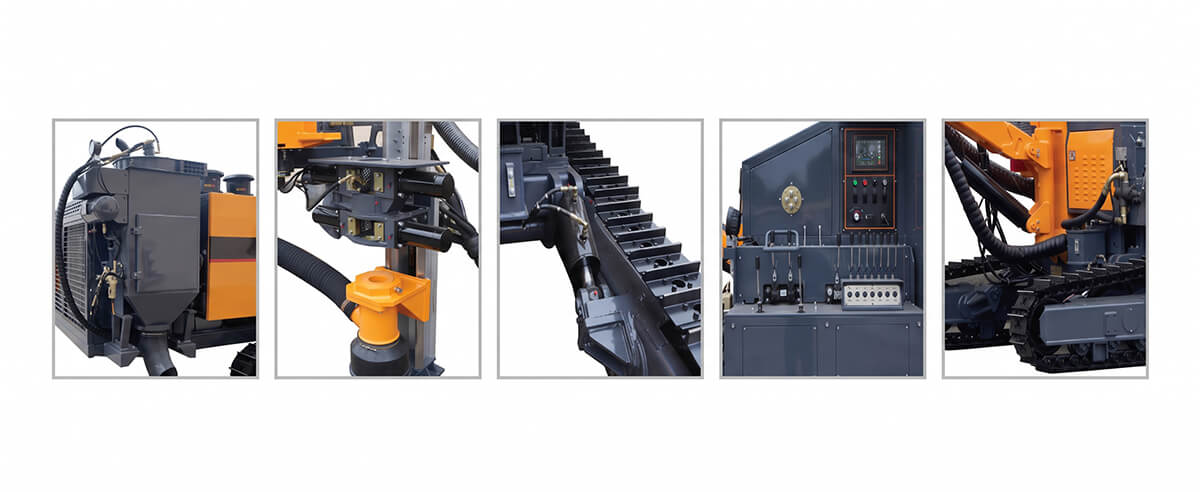

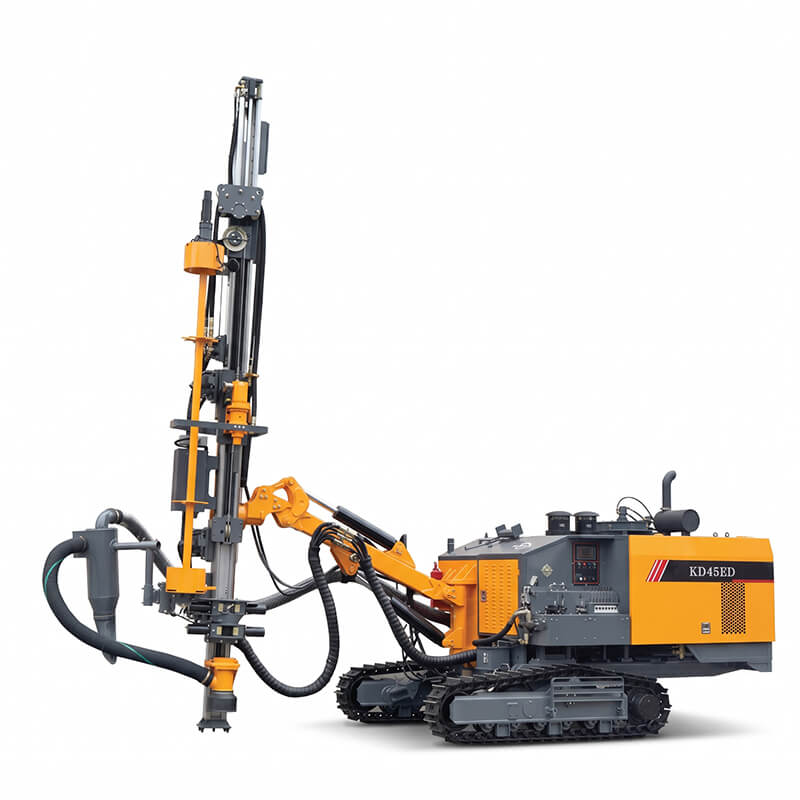

Combines heavy DTH percussion rock drilling and an onboard two-stage screw air compressor (15 m³/min @ 18 bar / 261 psi) onto a single self-propelled crawler chassis. Powered by a single 176 kW (240 HP) Yuchai YCA07240 diesel engine, it eliminates the need to tow a trailer compressor, cuts jobsite fuel burn by up to 25%, and avoids trailing air-hose hazards.
Features a high-strength aluminum alloy feed beam (3,590 mm advance stroke) with superior anti-torsion rigidity and reduced mast weight. The mechanized 7+1 carousel rod-handling system, with automatic thread oil injection, enables single-operator deep drilling to 24 meters using Φ64/Φ76 mm rods and 3"/4" DTH hammers.
Built on a 10,000 kg heavy-duty crawler undercarriage with 430 mm ground clearance and ±10° frame leveling for steady gradeability up to 25° across rough terrain. Powered by a high-speed rotary head (0–180 rpm, 1,560 N·m torque) and 22 kN push-pull thrust, plus an onboard hydraulic cyclonic laminar-flow dry dust collector.
*Note: Due to continuous technical updates and improvements, any differences between parameters/configurations and actual products are subject to the delivered machine; additionally, machines shown in images may include optional equipment.
| Parameter | KD45ED Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 90-135 mm |
| Depth of economical drilling | 24 m |
| Travelling speed | 0-3 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Power of complete machine | 176 kW / 2200 rpm |
| Diesel engine | Yuchai YCA07240-T300 |
| Screw compressor | Two stage compression 15 m³/min / 18 bar |
| Outer dimensions (L×W×H) | 8000×2300×2700 mm |
| Weight | 10000 kg |
| Rotation speed of gyrator | 0-180 rpm |
| Rotary torque (Max) | 1560 N·m (Max) |
| Maximum push-pull force | 22000 N |
| Lifting angle of drill boom | Up 48°, down 16° |
| Tilt angle of beam | 147° |
| Swing angle of carriage | Right 53°, left 52° |
| Swing angle of drill boom | Right 50°, left 58° |
| Leveling angle of frame | Up 10°, down 10° |
| One-time advance length | 3590 mm |
| Compensation length | 900 mm |
| DTH hammer | 3", 4" |
| Drilling rod | Φ64/76×3000 mm |
| Number of rods | 7+1 |
| Method of dust collection | Dry type (hydraulic cyclonic laminar flow) |
| Method of extension rod | Automatic unloading rod |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
A: The KD45ED introduces a mechanized 7+1 automatic carousel rod changer and an automatic thread lubrication system for fully automated rod handling. It also features a high-strength aluminum alloy feed beam, increases maximum rotation speed to 180 rpm (vs. 110 rpm), elevates ground clearance to 430 mm (vs. 330 mm), expands beam tilt angle to 147°, and increases machine weight to 10,000 kg (vs. 8,700 kg) for superior drilling stability.
A: No. The KD45ED is a fully self-contained, integrated crawler drill rig with an onboard 18-bar, two-stage screw air compressor (15 m³/min) powered directly by its 176 kW Yuchai diesel engine, operating autonomously with no trailing air hoses.
A: The aerospace-grade extruded aluminum alloy beam reduces upper mast weight while offering exceptional anti-bending and anti-torsion rigidity, significantly improving hole straightness and minimizing vibration on the feed mechanism during percussion drilling.
