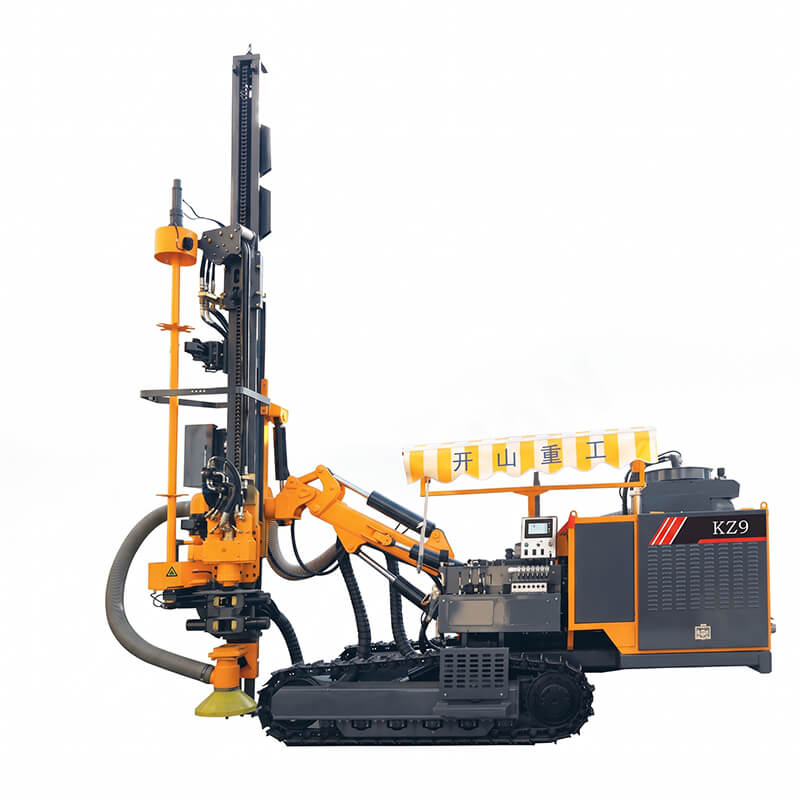

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Features an automated mechanical carousel storing 7+1 drill rods (Φ76 mm or Φ89 mm × 3,000 mm) with hydraulic breakout tongs and automatic thread oil lubrication, enabling a single operator to complete 21-meter boreholes without manual rod handling.

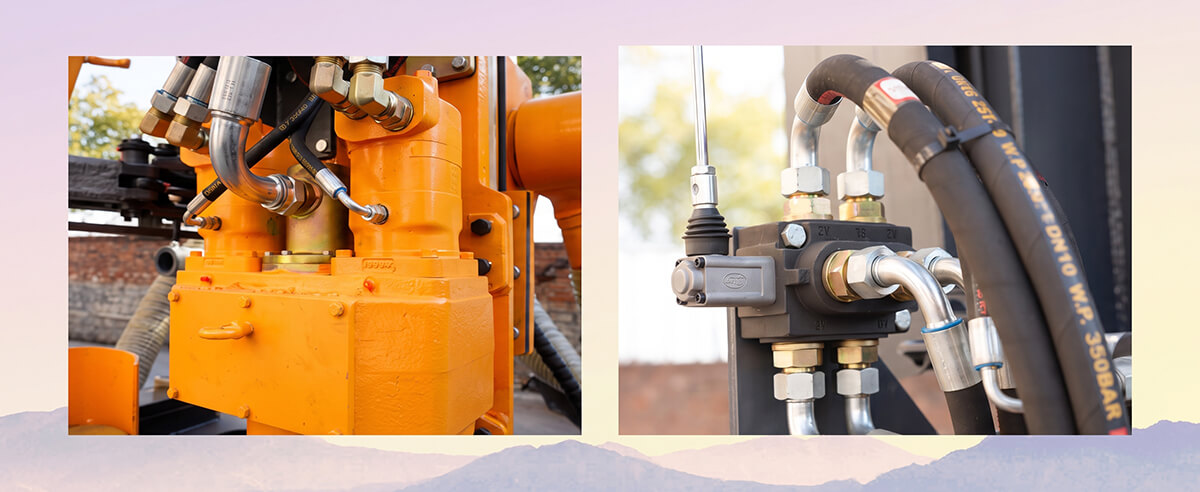

Equipped with imported hydraulic rotation motors delivering 4,000 N·m torque. Dual-speed control (0–80 rpm / 0–160 rpm) handles ⌀115–165 mm holes with 4" and 5" DTH hammers, efficiently penetrating hard, fractured bedrock (f=6–20).
Equipped with an enlarged 16-filter-element hydraulic cyclonic laminar flow dust collection system. Provides high-flow suction to capture dense quarry dust generated by large-aperture drilling, meeting strict green mining and silica-control standards.
Powered by a turbocharged Yuchai YC4DK115-T302 engine (86 kW / 115 HP). Includes an operator sunshade canopy, dual side and rear reversing cameras with an in-cab monitor, and ±10° hydraulic frame leveling for stable tramming on 30° slopes.
| Model of drill rig | KZ9 |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | Φ115-165 mm |
| Depth of economical drilling | 21 m |
| Travelling speed | 0-3.0 Km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 330 mm |
| Power of complete machine | 86 Kw |
| Diesel engine | Yuchai YC4DK115-T302 |
| Outer dimensions (L×W×H) | 7550×2550×3100 mm |
| Weight | 9300KG |
| Revolving speed of gyrator | 0-80(0-160) r/min |
| Rotary torque | 4000 N*m |
| Maximum Feed force | 30000 N |
| Lifting angle of drill boom | Up 50°, down 20° |
| Tilt angle of beam | 120° |
| Swing angle of carriage | left 47°, Right 48° |
| Swing angle of drill boom | left 59°, Right 48° |
| Leveling angle of frame | Up 10°, down 10° |
| One-time advance length | 3500 mm |
| Compensation length | 900 mm |
| DTH hammer | 4"/5" |
| Drilling rod (Φ× length of drilling rod) | Φ76(Φ89)×3000 mm |
| Storage capacity of rod | 7+1 |
| Dust collection method | Dry (hydraulic cyclonic laminar flow) 16 filter elements |
| Connecting rod method | Automatic unloading rod |
| Drill rod lubrication method | Automatic oil injection and lubrication |

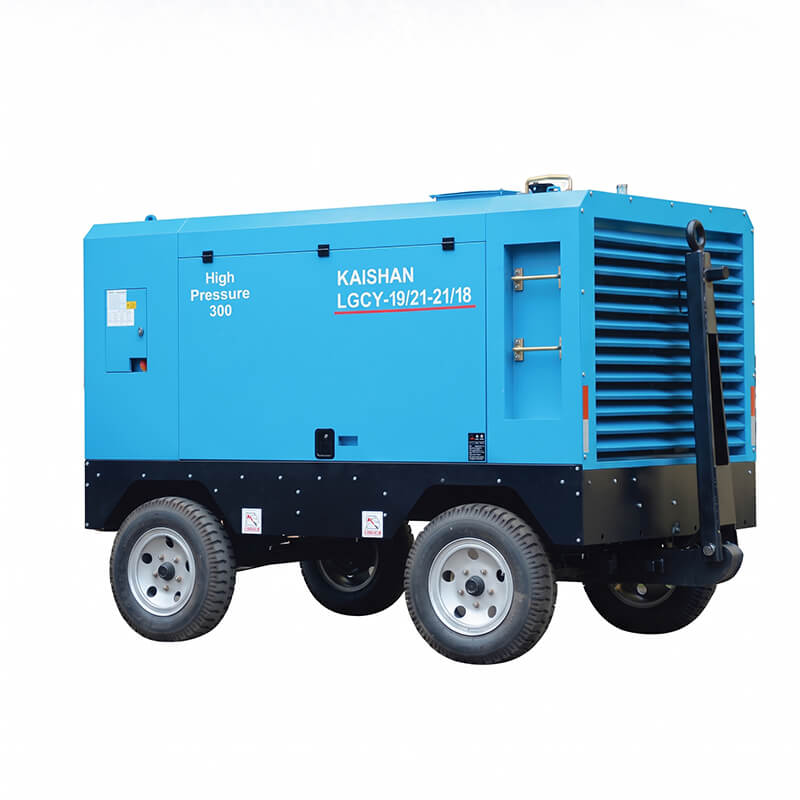

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: The KZ9 expands hole diameter from 115 mm to 165 mm, increases rotary torque from 1,500 N·m to 4,000 N·m with dual-speed control (0–80 / 0–160 rpm), upgrades engine output to 86 kW, doubles dust collection capacity with 16 filter elements, and supports heavier Φ89 mm drill rods.
A: The automated carousel stores seven 3-meter drill rods plus one on the mast. A single operator controls hydraulic rod loading, uncoupling, and automatic thread lubrication directly from the control console, reaching a depth of 21 meters without physical exertion.
