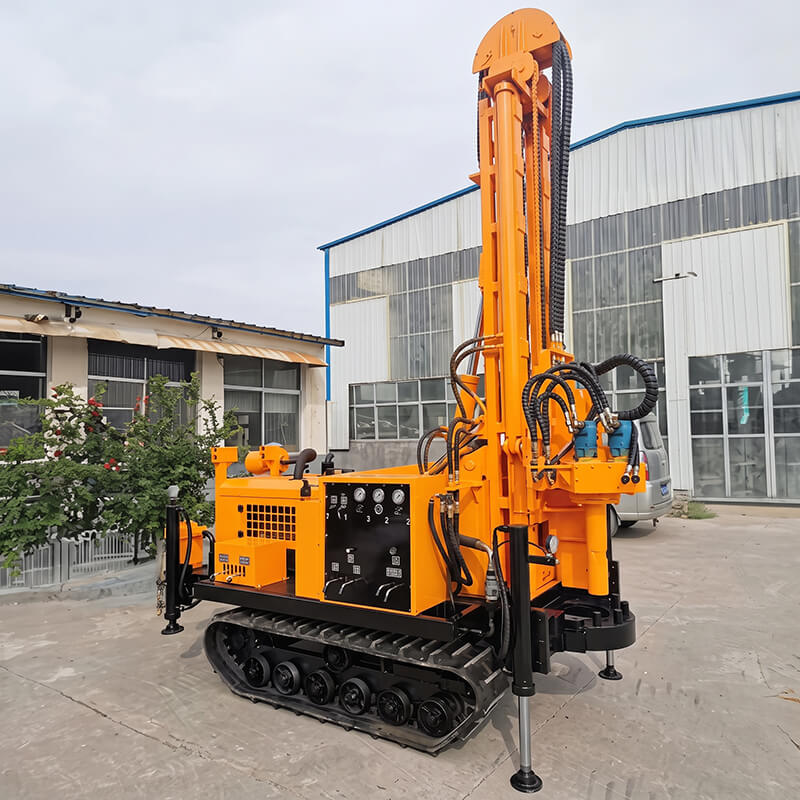

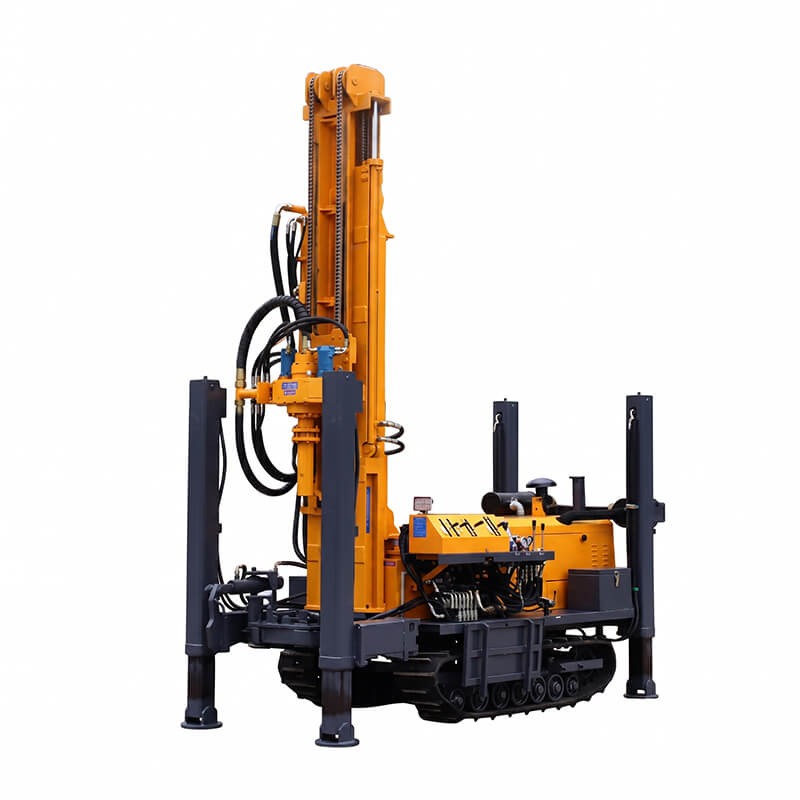

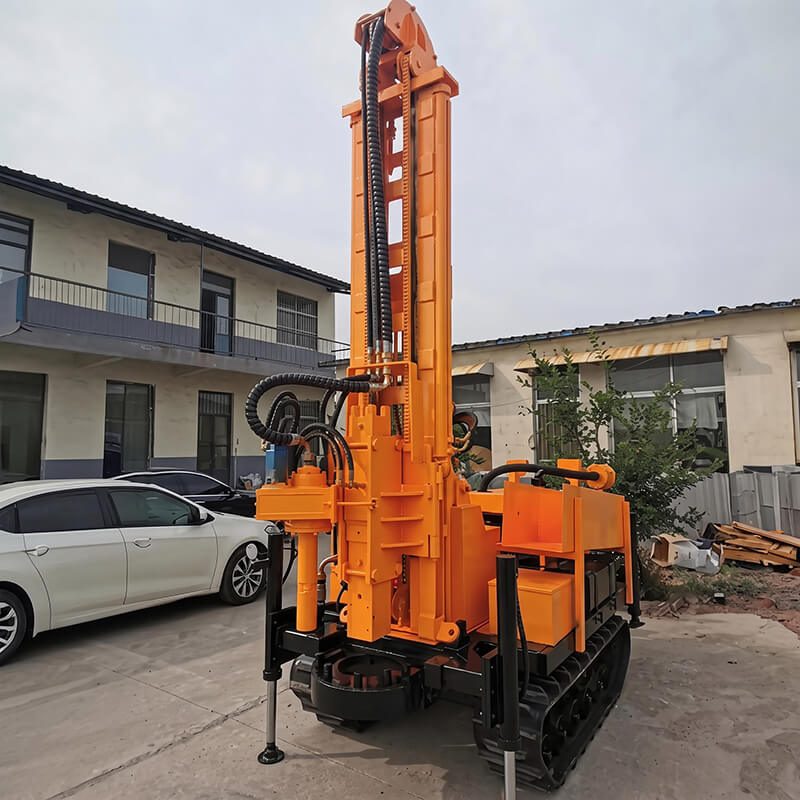

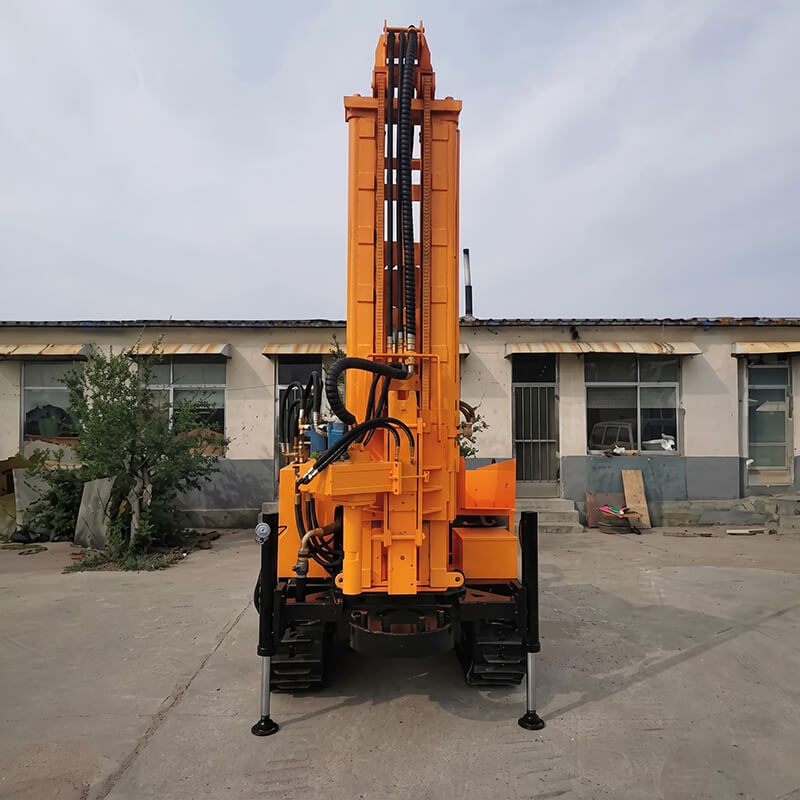

Direct Overview: The Kaishan KS150R is an ultra-lightweight, rubber-tracked portable water well and geothermal borehole drilling rig designed for depths up to 150 meters with hole diameters from ⌀130 mm to 219 mm. Weighing only 4,000 kg with an ultra-slim 1.5-meter body width, it is powered by a reliable 42 kW Yunnei diesel engine delivering 3,800 N·m rotary torque and a 3.0-meter feed stroke. Featuring an energy-saving hydraulic design where only the DTH hammer consumes compressed air (14.5–25 bar), its road-friendly rubber tracks and casing advancement capability make it ideal for tight residential courtyards, rural drinking wells, and farm irrigation projects.
Private residential homesteads, small-scale farming plots, and residential geothermal HVAC installations frequently require drilling in cramped, delicate environments—such as landscaped garden courtyards, narrow village gates, and paved driveways. Heavy commercial rigs cannot access these tight spaces or cause severe cracking to finished concrete and asphalt surfaces.
The Kaishan KS150R is specifically engineered to deliver professional drilling power in an ultra-compact package. At just 4.0 tons operating weight and a slim 1,500 mm transport width, it maneuvers effortlessly into tight residential yards with non-marking rubber tracks. Operating up to 10 times faster than conventional rotary drills, it supports both high-pressure DTH air hammer drilling in hard bedrock (f=6–20) and mud circulation or casing advancement in loose overburden, sand, and gravel.
Equipped with an industrial 42 kW Yunnei diesel engine driving dedicated hydraulic pumps. All tramming, mast elevation, feed, and rotation are fully hydraulic, meaning compressed air is consumed solely by the downhole hammer for maximum fuel economy.
At only 1,500 mm in width and 4,000 kg total weight, the KS150R easily slips through standard residential garden gates. Durable rubber tracks protect brick pavers, lawns, and asphalt driveways from damage while providing 25° climbing ability.
The heavy-duty structural mast features a 3,000 mm stroke, directly accommodating standard 3-meter drill pipes (⌀76 mm or ⌀89 mm), minimizing pipe joint connection downtime on boreholes down to 150 meters.
Hydraulic top drive power head delivers 3,200–3,800 N·m rotary torque and dual speed selection (38–55 rpm), providing the ideal balance of rotational speed for soil and rock formations.
Capable of executing eccentric and concentric casing advancement drilling in loose alluvial layers, sand, and gravel to prevent borehole collapse before penetrating into stable deep aquifers.
Four high hydraulic outriggers enable quick, stable leveling on sloped terrain and elevate the rig high enough for flatbed trailers or light utility trucks to back underneath, allowing 100% crane-free self-loading.
| Technical Parameter | Specification / Engineering Value |
|---|---|
| Maximum Drilling Depth | 150 m (approx. 492 ft) |
| Borehole Drilling Diameter | ⌀130 – 219 mm (5.1 – 8.6 in) |
| Drill Bit Diameter Range | ⌀110 – 205 mm |
| Drilling Methods | Top Drive Hydraulic Rotary: DTH Air Hammer, Mud Pumping & Casing Drilling |
| Diesel Engine Model & Power | Yunnei Industrial Diesel Engine, 42 kW |
| Feed Stroke | 3,000 mm (Accommodates 3-meter drill pipes) |
| Rotary Head Torque | 3,200 – 3,800 N·m |
| Rotary Head Rotation Speed | 38 – 55 rpm (Dual-speed regulation) |
| Working Air Pressure Range | 1.45 – 2.5 MPa (14.5 – 25 bar / 210 – 362 psi) |
| Air Consumption Demand | 15 – 27 m³/min (matching screw air compressor) |
| Compatible DTH Hammers | HD45, HD55, HD65 (or CIR110, CIR130, CIR150) |
| Applicable Drill Pipe Diameter & Length | ⌀76 mm, ⌀89 mm × 3,000 mm (1.5m, 2m, 3m optional) |
| Track Undercarriage | Non-marking rubber tracks (steel tracks optional) |
| Tramming Speed & Climbing Capacity | 0 – 2.0 km/h | 25° Max Climbing Angle |
| Ground Clearance & Outriggers | 250 mm | 4 heavy-duty hydraulic leveling legs |
| Overall Machine Dimensions (L×W×H) | 4,000 × 1,500 × 2,150 mm (1.5m ultra-narrow width) |
| Total Operating Weight | 4,000 kg (4.0 Tons) |
To maximize penetration efficiency across 130–219 mm boreholes down to 150 meters, the KS150R connects seamlessly with compact portable air compressors and mud pumps:
Kaishan LGCY-13/13, LGCY-15/13, or KSCY-550/13 (13–17 bar, 15–18 m³/min) for fast DTH hammer penetration in hard bedrock.
BW-160 reciprocating mud pump for borehole wall stabilization and drilling through loose sand, gravel, and clay.
A: The KS150R is rated for drilling depths up to 150 meters (492 ft) with borehole diameters from 130 mm to 219 mm using HD45, HD55, and HD65 DTH hammers.
A: Yes. In addition to air DTH drilling in bedrock, the KS150R can connect with a mud pump for rotary drilling and follow casing advancement processes to drill through collapsible sand, mud, and gravel strata.
A: The KS150R comes standard with non-marking, durable rubber tracks. At just 4.0 tons total weight and a 1.5m width, it travels over residential turf, tile walkways, and asphalt without gouging or cracking the surface.
