Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES

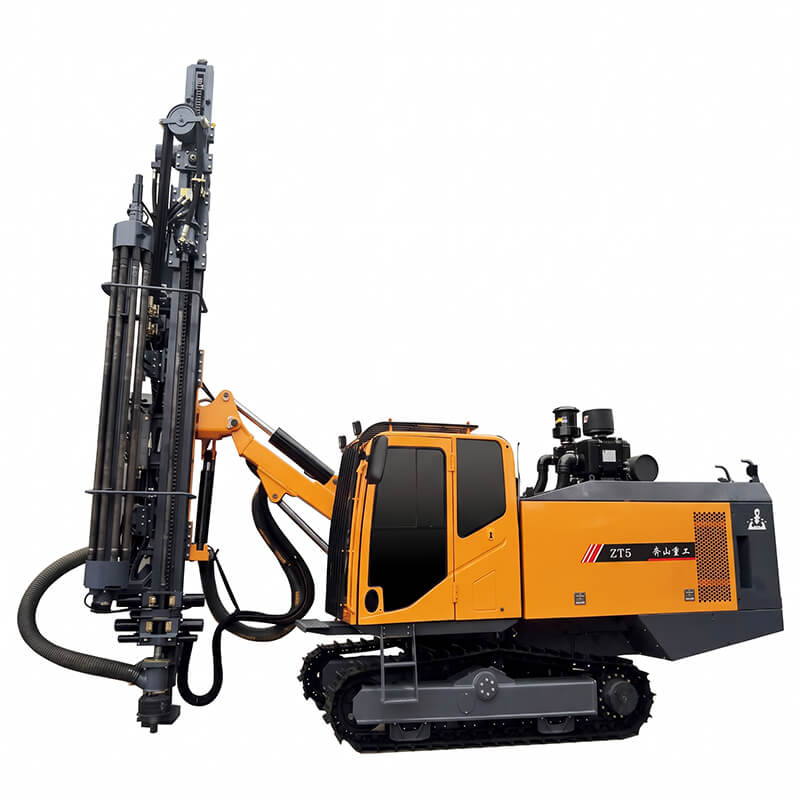

Integrates the heavy-duty DTH drilling system and an onboard rotary screw compressor (12 m³/min @ 15 bar) onto a single crawler chassis. Powered by a 176 kW (240 HP) Yuchai engine via dual-terminal output (flywheel drives the compressor while the PTO powers hydraulic circuits), eliminating auxiliary compressor towing and cutting fuel costs by up to 30%.
Features a fully enclosed, certified ROPS & FOPS safety cab with standard heating and cooling air conditioning, an adjustable ergonomic operator seat, radio entertainment, and indoor noise levels below 85 dB(A). Responsive hydraulic pilot joysticks provide effortless, fatigue-free control over all drilling and tramming maneuvers.
Equipped with an automated mechanical pipe carousel (7+1 storage for Φ64×3000 mm rods), floating slide plate, and automatic thread lubrication. Intelligent electro-hydraulic anti-jamming system continuously monitors penetration pressure to prevent tool sticking, enabling safe, single-operator drilling down to 24 meters.
| Parameter | ZT5 Specification |
|---|---|
| Transport dimensions (L×W×H) | 8850*2180*2830 mm |
| Weight | 13800 Kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-105 mm |
| Ground clearance | 430 mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3 Km/h |
| Climbing capacity | 25° |
| Traction | 120 KN |
| Rotary torque (Max) | 1680 N·m (Max) |
| Rotation speed | 0-120 rpm |
| Lifting angle of drill boom | Up 46°, down 19° |
| Swing angle of drill boom | Left 18°, right 50° |
| Swing angle of carriage | Left 30°, right 96° |
| Tilt angle of beam | 131° |
| Compensation stroke | 900 mm |
| Rotation Head stroke | 3490 mm |
| Maximum propelling force | 32 KN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 24 m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64x3000 mm |
| DTH hammer | 3" |
| Engine | Yuchai YCA07240-T300 |
| Rated power | 176 KW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | 12 m³/min / 15 bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meets the requirements of ROPS & FOPS |
| Indoor noise | Below 85dB (A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio |
A: The ZT5 features a certified ROPS & FOPS enclosed cabin with standard heating/cooling air conditioning, low indoor noise (<85 dB), and hydraulic pilot joystick controls. Combined with an onboard 15-bar screw compressor and a 7+1 automatic rod changer, it delivers superior operator safety, dust-free comfort, and high single-operator productivity.
A: When drilling through fractured or sheared rock formations, rotation torque and feed pressure spikes are detected instantly by hydraulic pilot sensors. The system automatically reduces feed force, retracts slightly, or increases flushing to clear cuttings, preventing drill string seizure and protecting the 3" DTH hammer.
