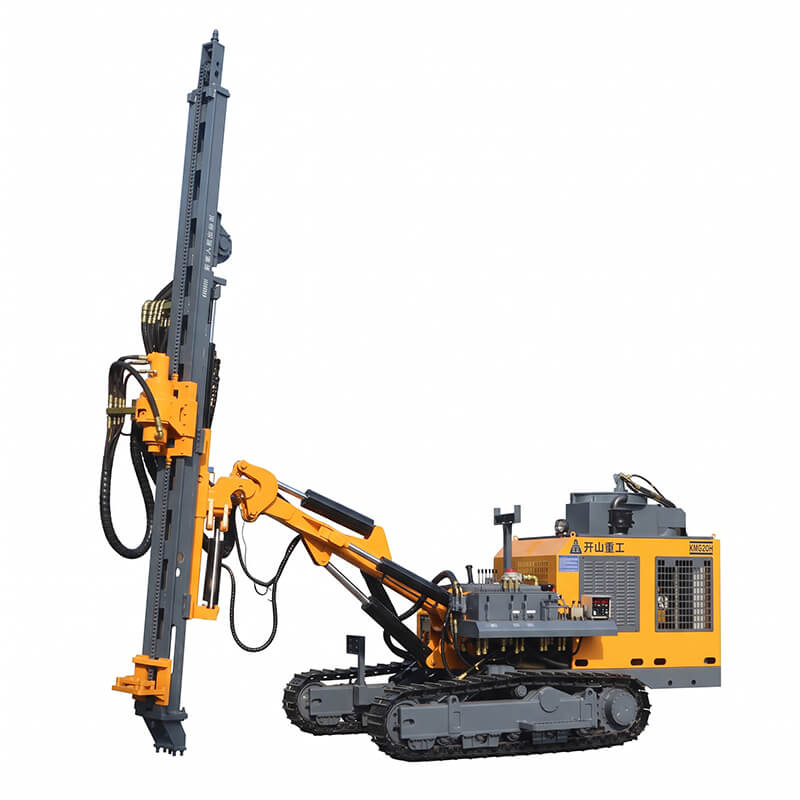

Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Equipped with a motor-driven heavy roller chain feed system providing an extended 4,150 mm stroke. Perfectly handles 3-meter drill rods (Φ76 mm or Φ89 mm) with generous tool clearance to accelerate rod-changing cycles.
Powered by a turbocharged Yuchai YC4DK100-T304 engine (73.5 kW / 100 HP @ 2200 rpm), satisfying national Tier 3 off-road emissions standards while providing substantial hydraulic power reserves for severe rock conditions.
Boasts an exceptional 440 mm ground clearance and dual plunger travel motors achieving tramming speeds up to 4.0 km/h. Combined with ±10° track leveling, it easily conquers 30° slopes and rough rock obstacles.
The KG520H configuration is equipped with an enlarged multi-element cyclone dust extraction system, providing superior dust collection capacity during high-speed production drilling in ⌀105–152 mm boreholes.
| Model of drill rig | KG520 | KG520H |
|---|---|---|
| Weight of complete machine | 6500KG | 7000KG |
| Outer dimensions | 6800×2200×2850mm | 6800×2350×2850mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ105-152mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-100rpm | |
| Rotary torque (Max) | 4000N·m (Max) | |
| Lifting force | 25KN | |
| Method of Feed | Motor+roller chain | |
| Feed stroke | 4150mm | |
| Travelling speed | 0-4km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 440mm | |
| Tilt angle of beam | Down: 135°, up: 50°, total: 185° | |
| Swing angle of beam | Left: 50°, right: 50°, total: 100° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of drill boom | Left: 45°, right: 45°, total: 90° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 900mm | |
| Supporting power | Yuchai YC4DK100-T304 (73.5KW/2200r/min) | |
| DTH hammer | 4" | |
| Drilling rod | Φ76×3m or Φ89×3m | |
| Air consumption | 15-22m³/min | |
| Maximum height of horizontal hole | 3500mm | |
| Minimum height of horizontal hole | 350mm | |

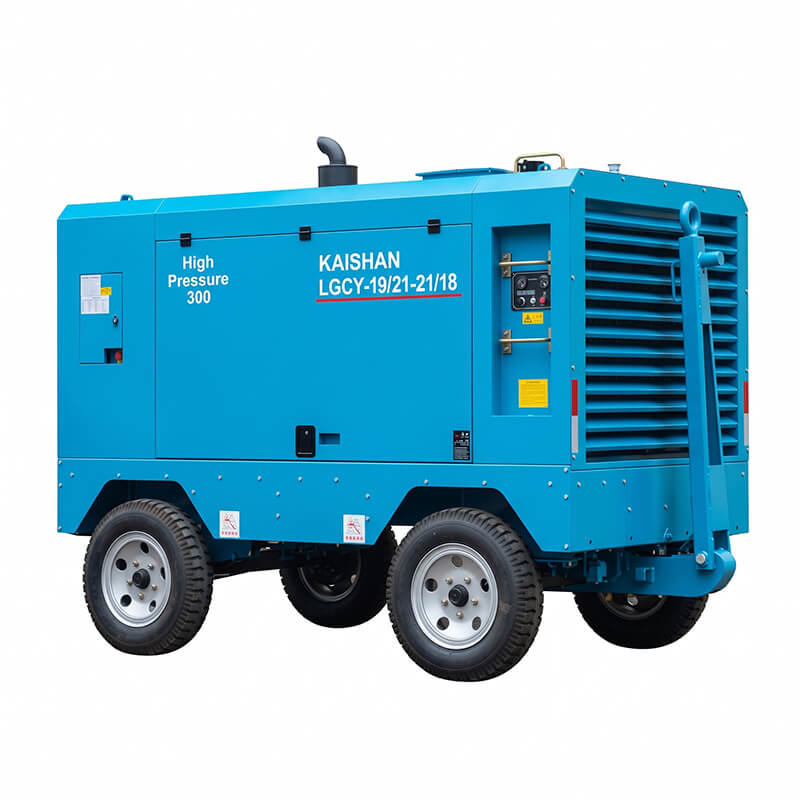

Diesel Engine Portable Screw Air Compressor:
Note: Air compressor selection is subject to hole diameter and air hose length.
A: The KG520 features an extended 4,150 mm feed stroke (versus 3,175 mm), higher ground clearance of 440 mm (versus 280–290 mm), faster tramming speed up to 4.0 km/h, higher horizontal hole reach (3,500 mm), and supports heavy Φ89 mm drill pipes for large ⌀105–152 mm production holes.
A: The KG520H is equipped with an enlarged industrial dry-type cyclone dust collector for strict environmental and green quarry regulations. The KG520 is the open-type baseline machine suited for sites where external dust extraction is not mandatory.
