Kaishan DTH Drilling Rigs
Heavy-duty surface crawlers and integrated rigs for open-pit mining, quarry blasting, and slope stabilization. High penetration rate and anti-jamming hydraulic system.
EQUIPMENT CATEGORIES
Powered by a single Cummins QSZ13-C400-30 non-road diesel engine (298 kW), it uses a two-terminal output configuration to simultaneously drive the onboard two-stage screw air compressor (22 m³/min at 24 bar) and an energy-saving variable hydraulic transmission system for 140–190 mm blast hole drilling.

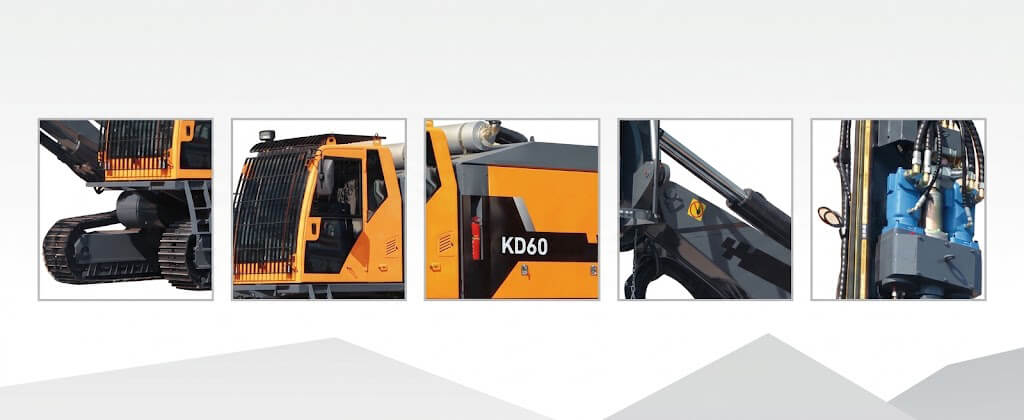

Equipped with a high-strength aluminum alloy propulsion beam, an automatic rod-handling system (8+1 for 4000 mm rods or 6+1 for 5000 mm rods), a floating-joint thread-protection module, automatic oil-injection lubrication, and electro-hydraulic anti-sticking control for 36/35 m deep-hole production.
Features a certified FOPS & ROPS air-conditioned safety cab with real-time drilling angle and depth indication, paired with a hydraulic cyclonic laminar flow dry dust collector (with optional wet dust removal) for clean, high-precision bench operations.
| Parameter / Item | KD60 Specification |
|---|---|
| Drilling hardness | f=6-20 |
| Drilling diameter | 140-190 mm |
| Depth of economical drilling (depth of automatic extension rod) | 36/35 m |
| Travelling speed | 3.0 km/h |
| Climbing capacity | 25° |
| Traction | 140 KN |
| Ground clearance | 430 mm |
| Power of complete machine | 298 kW |
| Diesel engine | Cummins QSZ13-C400-30 |
| Screw compressor | Two stage compression 22 m³/min/24bar |
| Outer dimensions (L×W×H) | 11000x2780x3800 mm |
| Weight | 24800 kg |
| Revolving speed of gyrator | 0-100 r/min |
| Rotary torque | 4100 N·m |
| Maximum Feed force | 65000 N |
| Method of propulsion | Roller chain |
| Tilt angle of beam | 128° |
| Lift angle of drill boom | up 51° , down 19° |
| Swing angle of carriage | Right 97°, left 33° |
| Swing angle of drill boom | Right 45°, left 15° |
| Leveling angle of frame | Up 10°, down 10° |
| Compensation length | 1500/1800 mm |
| Feed stroke | 4580/5580 mm |
| DTH hammer | 4", 5", 6" |
| Drilling rod (ϕ× length of drilling rod) | ϕ89/ϕ102×4000 mm / ϕ89/ϕ102×5000 mm |
| Number of rods | 8+1 / 6+1 |
| Method of dust removal | Dry (hydraulic cyclonic laminar flow)/wet (optional) |
| Method of extension rod | Automatic unloading rod |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Protection of thread of drilling rod | Equipped with a floating joint to protect the thread of the drilling rod |
| Drilling display | Real-time display of drilling angle and depth |
| Safe cab | Meets the requirements of FOPS&ROPS |
*Note: Technical specifications are subject to continuous improvement without prior notice. Custom OEM/ODM configurations, optional wet dust removal systems, and export-compliant diesel emission packages are available upon request for bulk orders.

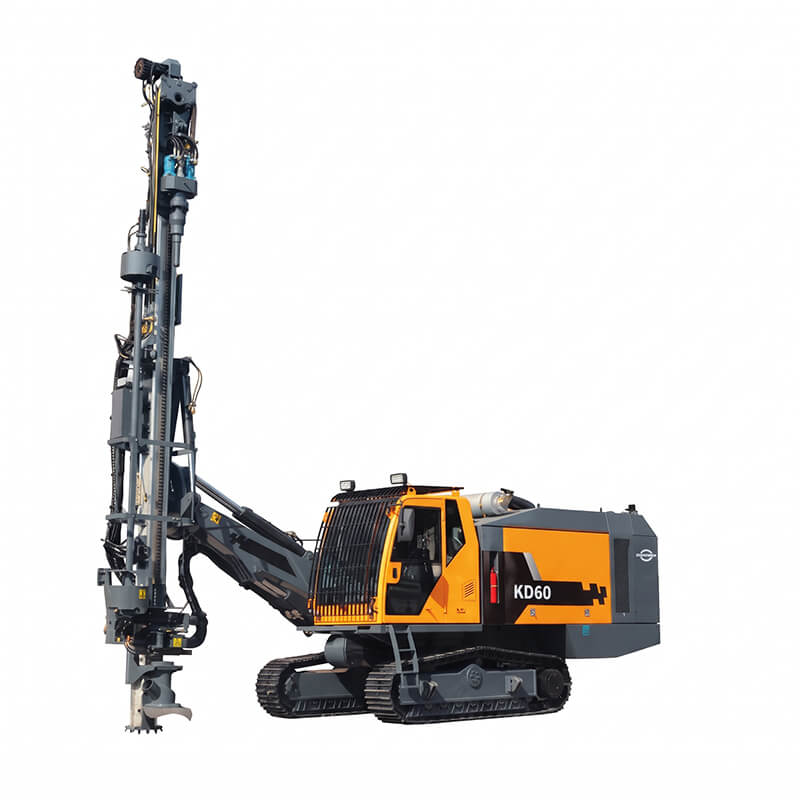

The Kaishan KD60 integrated surface DTH drilling rig is engineered for large-scale bench blasting and pre-splitting operations across heavy surface mining and civil engineering projects:
The KD60 supports two automatic rod carousel configurations: an 8+1 carousel using ϕ89/ϕ102×4000 mm rods (4580 mm feed stroke, 36 m economical depth) or a 6+1 carousel using ϕ89/ϕ102×5000 mm rods (5580 mm feed stroke, 35 m economical depth) for 4", 5", and 6" DTH hammers.
No. The KD60 integrates a built-in two-stage screw air compressor that delivers 22 m³/min at 24 bar, driven directly by the 298 kW Cummins QSZ13-C400-30 diesel engine's two-terminal output alongside the variable hydraulic system.
As an authorized China manufacturer and global B2B supplier, we provide factory-direct pricing, flexible MOQ, OEM/ODM customization, and complete genuine maintenance kits (4"/5"/6" DTH hammers, ϕ89/ϕ102 drill rods, and Cummins/air-end filters). Contact our export team for an official FOB/CIF quotation and technical datasheet.
